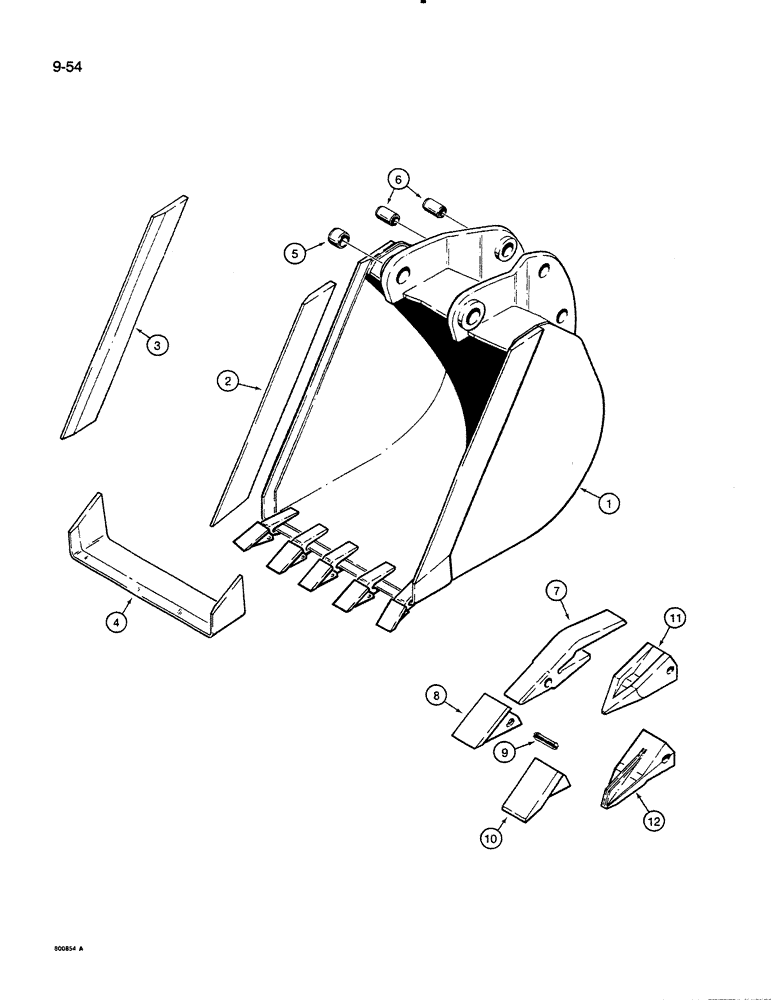

Запчасти Case 35C (9-54[D]) - BACKHOE BUCKETS, 850C OR 850D/855D CRAWLER MODELS - 36 INCH (914 MM) TRENCHING BUCKET, HEAVY DUTY (09) - CHASSIS/ATTACHMENTS

1

D57545

BUCKET

ASSEMBLY - machinery item, order from Machinery Price List

1шт.

2

D57550

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

D57551

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

4

D57595

EDGE, CUTTING

EDGE - cutting, bucket, center

1шт.

5

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, at bucket link

4шт.

7

D48212

SHANK

- tooth, original equipment , BUCKET

1шт.

8

D39093

TOOTH

POINT - tooth, original equipment , BUCKET

1шт.

9

D39094

BUCKET TOOTH KEY

PIN - flex, point, original equipment , BUCKET TEETH

1шт.

10

D44193

TOOTH

POINT - tooth, heavy duty, flat end, service option , BUCKET

1шт.

11

D80119

TOOTH

POINT - tooth, heavy duty, pointed end, service option , BUCKET

1шт.

12

D79100

TOOTH

POINT - tooth, heavy duty, star point, service option , BUCKET

1шт.
