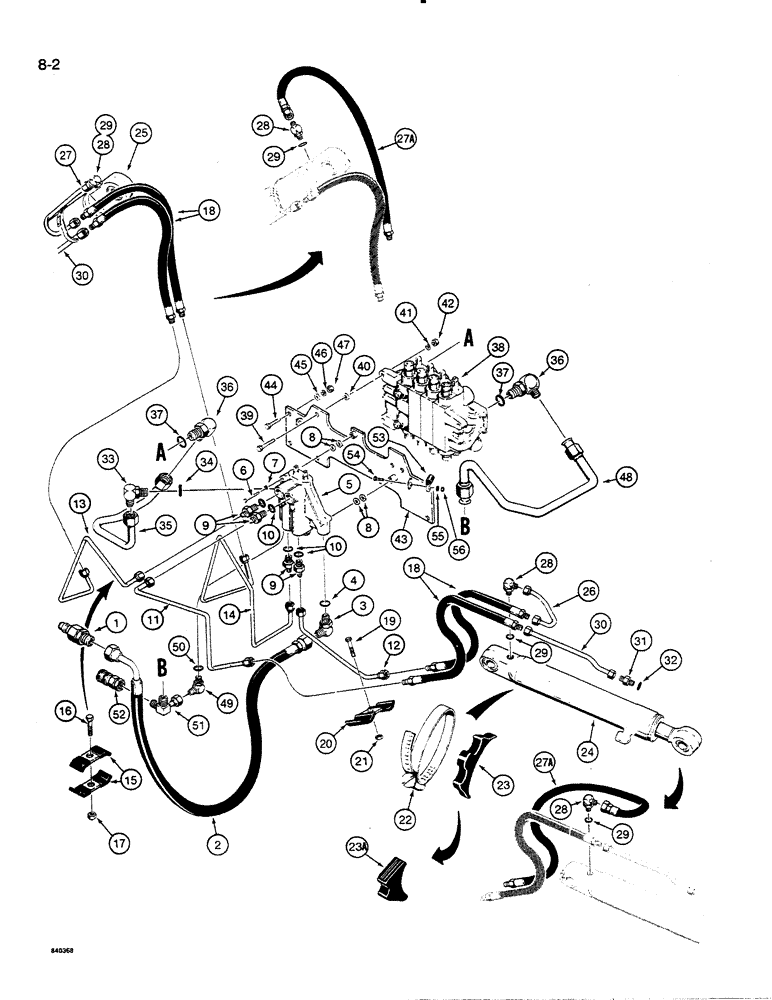

Запчасти Case 35C (8-02) - STABILIZER CYLINDER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

D90260

FITTING

COUPLER ASSEMBLY - quick disconnect, hydraulic, male, parts list Figure 8-64

1шт.

2

D89645

HOSE,19.05mm ID x 1000mm L, SAE 100R12

- 39-3/8 inch (1000 mm) long, to stabilizer valve

1шт.

3

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, Incl. Ref. 4

1шт.

4

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

5

REF

INSTRUCTION

VALVE ASSEMBLY - control, stabilizer, for correct assembly and components see Figure 8-38

1шт.

6

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

2шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

8

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

4шт.

9

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 10 3/4"-16, 37º x 7/8"-14, O-Ring

4шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

11

D121656

TUBE

- right-hand, upper port of control valve

1шт.

12

D124889

TUBE

- right-hand, lower port of control valve

1шт.

13

D121652

TUBE

- left-hand, upper port of control valve

1шт.

14

D121654

TUBE

- left-hand, lower port of control valve

1шт.

15

A12032

CLAMP

- left-hand tubes

2шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

1шт.

17

131-665

LOCK NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

1шт.

18

D121658

HOSE,19.05mm ID x 450mm L, SAE 100R2

- 17-3/4 inch (450 mm), Serial Range: long,-cylinders

2-4шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

20

D40236

CLAMP

- hose

2шт.

21

131-666

LOCK NUT,3/8"-16, GB

NUT - hex, self-locking, 3/8 inch NC

2шт.

22

214-272

HOSE CLAMP,#84, 4.88" - 5.75", Type F Worm

CLAMP - adj, 4-7/8 - 5-3/4 inch dia, size No.84, tube, used with G103252 and G103253 stabilizer cylinders

2шт.

22

214-270

HOSE CLAMP,#76, 4.31" - 5.25", Type F Worm

CLAMP - adj, 4-5/16 - 5-1/4 inch dia, size No.76, tube, used with G109139 and G109140 stabilizer cylinders

2шт.

23

R24703

SUPPORT

SPACER - tube, rubber, used with Ref. 18, 26, & 27, if used

2шт.

23a

D38648

BLOCK

SPACER - hose, if used

2шт.

24

REF

INSTRUCTION

CYLINDER ASSEMBLY - stabilizer, right-hand, parts list page 8-66

1шт.

25

REF

INSTRUCTION

CYLINDER ASSEMBLY - stabilizer, left-hand, parts list page 8-66

1шт.

26

D94488

HYD TUBE,0.5" OD

TUBE - to closed end of right-hand stabilizer cylinder, if used

1шт.

27

D94490

HYD TUBE,0.5" OD

TUBE - to closed end of left-hand stabilizer cylinder, if used

1шт.

27a

R34485

HOSE

- 23 inch (584 mm) long, cylinder closed end ports, if used

2шт.

28

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 3/4-16 flare x 7/8-14 inch adj O-ring, Includes: Ref. 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

D94486

HYD TUBE,12.7 mm OD x 420, 27 mm L

TUBE - to rod end of stabilizer cylinders

2шт.

31

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, O-ring boss, Incl. Ref 32 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

32

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

33

218-5124

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Adjustable, Includes: Ref. 34 90º, 1 5/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

35

D93279

HYD TUBE,25.4 mm OD x 260, 211 mm L

TUBE - power beyond port of stabilizer control valve to backhoe control vavle

1шт.

36

218-5110

ELBOW,90 Degree Elbow, 1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

90º, 1-5/16-12 inch flare x adj o-ring boss, Incl. Ref. 37

2шт.

37

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

38

REF

INSTRUCTION

VALVE ASSEMBLY - control, backhoe, part list Fig. 8-40

1шт.

39

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

40

95-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 1/8 inch

3шт.

41

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

42

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

43

D94282

PLATE

- control vavle mounting

1шт.

44

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

45

95-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 1/8 inch

4шт.

46

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

47

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

48

D93281

HYD TUBE,1" OD

TUBE - backhoe control valve return, models without extendable dipper

1шт.

48

D93283

HYD TUBE,25.4 mm OD x 316, 268 mm L

TUBE - backhoe control valve return, models with extendable dipper

1шт.

49

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 deg, 1-1/16-12 flare x 7/8 -14 inch adj o-ring, Includes: Ref. 50

1шт.

50

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

51

D88966

HYD TUBE,19.05 mm OD x 56 mm L

TUBE - three way

1шт.

52

D52800

COUPLING, QUICK, FEM

COUPLER ASSEMBLY - quick disconnect, hydraulic, female, parts list Fig. 8-64

1шт.

53

T50103

CLAMP

- P-type, tube, mounting plate to swing tubes

2шт.

54

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

55

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

56

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
