Запчасти Case 35C (9-52) - BACKHOE BUCKETS, W14 LOADER MODELS (09) - CHASSIS/ATTACHMENTS

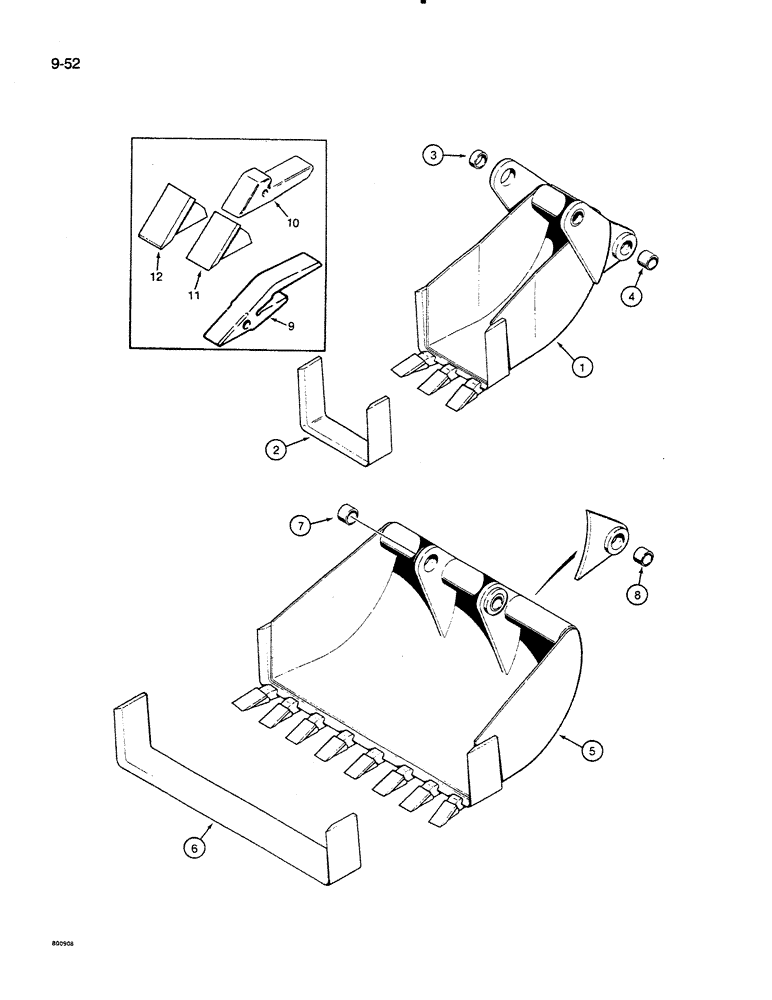

Схема запчастей Case 35C - (9-52) - BACKHOE BUCKETS, W14 LOADER MODELS (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

D41547

BUCKET

ASSEMBLY - 12 inch (305 mm), machinery item, order from Machinery Price List , BELLHOLE

1шт.

2

D37490

KNIFE

EDGE - cutting, bucket , BELLHOLE

1шт.

3

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- bucket, at dipper, BELLHOLE

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole, BELLHOLE

2шт.

1

D41548

BUCKET

ASSEMBLY - 16 inch (406 mm), machinery item, order from Machinery Price List , BELLHOLE

1шт.

2

D37518

EDGE, CUTTING

EDGE - cutting, bucket, BELLHOLE

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper, BELLHOLE

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole, BELLHOLE

2шт.

1

D41549

BUCKET

ASSEMBLY - 30 inch (762 mm), machinery item, order from Machinery Price List , BELLHOLE

1шт.

2

D37515

EDGE

- cutting, bucket, BELLHOLE

1шт.

3

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket at dipper, BELLHOLE

2шт.

4

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole, BELLHOLE

2шт.

5

D41550

BUCKET

ASSEMBLY - 36 inch (914 mm), machinery item, order from Machinery Price List , COMBINATION BELLHOLE AND GRAVEYARD

1шт.

6

NLS

NO LONGER SERVICED

EDGE - cutting, bucket , COMBINATION BELLHOLE AND GRAVEYARD

1шт.

7

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper , COMBINATION BELLHOLE AND GRAVEYARD

2шт.

8

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole , COMBINATION BELLHOLE AND GRAVEYARD

2шт.

9

D58499

SUPPORT

SHANK - tooth, service option , BUCKET

1шт.

10

D26368

SUPPORT

SHANK - tooth, original equipment , BUCKET

1шт.

11

D27748

TOOTH

POINT - tooth , BUCKET

1шт.

12

D36720

TOOTH

POINT - tooth, heavy duty service option , BUCKET

1шт.

Выбрано товаров: 20
