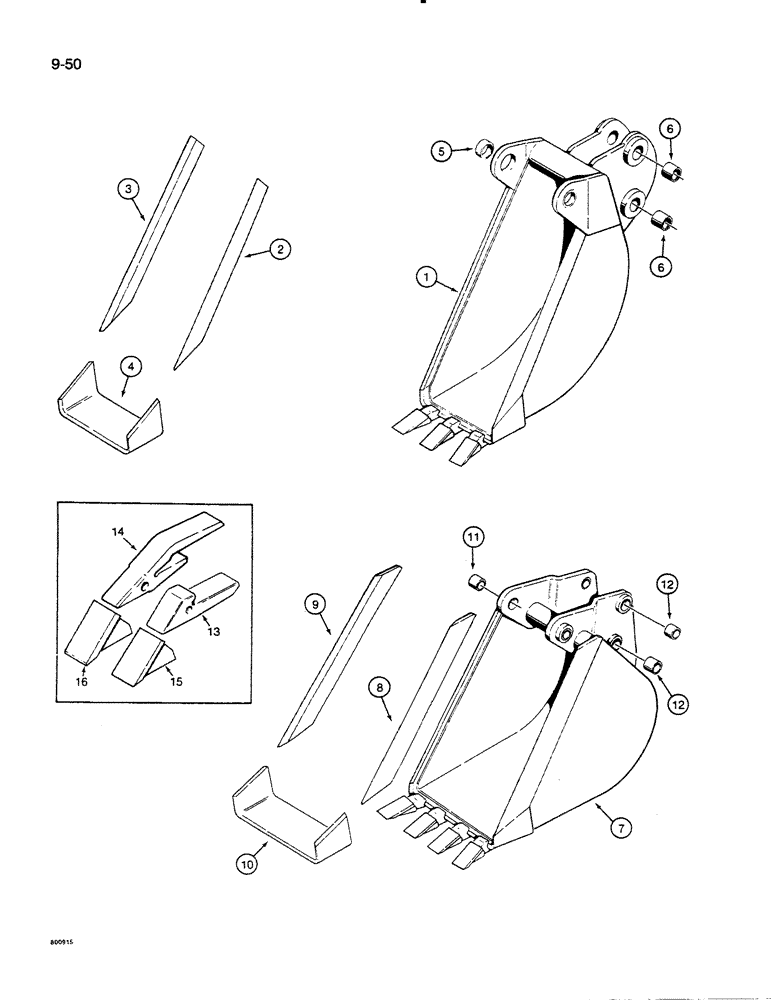

Запчасти Case 35C (9-50) - BACKHOE BUCKETS, W14 LOADER MODELS, TRENCHING BUCKETS (09) - CHASSIS/ATTACHMENTS

1

D52642

BUCKET

ASSEMBLY - 12 inch (305 mm), machinery item, order from the Machinery Price List

1шт.

2

D29424

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

3

D29423

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

4

D37464

EDGE, CUTTING

EDGE - cutting, bucket, center

1шт.

5

D40243

BUSHING,44.68mm ID x 57.15mm OD x 19.05mm L

- bucket, at dipper

2шт.

6

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, bucket link pin hole

4шт.

7

D37473

BUCKET

ASSEMBLY - 18 inch (457 mm), machinery item, order from the Machinery Price List

1шт.

8

D21606

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

9

D21605

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

10

D37642

EDGE, CUTTING

EDGE - cutting, bucket, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole

4шт.

7

D37474

BUCKET

ASSEMBLY - 24 inch (610 mm), machinery item, order from the Machinery Price List

1шт.

8

D21606

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

9

D21605

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

10

D37507

EDGE

- cutting, bucket, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket at dipper

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole

4шт.

7

D37475

BUCKET

ASSEMBLY - 30 inch (762 mm), machinery item, order from the Machinery Price List

1шт.

8

D21606

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

9

D21605

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

10

D37505

EDGE, CUTTING

EDGE - cutting, bucket, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole

4шт.

7

D37476

BUCKET

ASSEMBLY - 36 inch (914 mm), machinery item, order from the Machinery Price List

1шт.

8

D21606

EDGE, CUTTING

EDGE - cutting, bucket, right-hand side

1шт.

9

D21605

EDGE, CUTTING

EDGE - cutting, bucket, left-hand side

1шт.

10

D37471

EDGE, CUTTING

EDGE - cutting, bucket, center

1шт.

11

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- bucket, at dipper

2шт.

12

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- bucket, upper and lower bucket link pin hole

4шт.

13

D26368

SUPPORT

SHANK - tooth, original equipment , BUCKET

1шт.

14

D58499

SUPPORT

SHANK - tooth, service option , BUCKET

1шт.

15

D27748

TOOTH

POINT - tooth , BUCKET

1шт.

16

D36720

TOOTH

POINT - tooth, heavy duty service option , BUCKET

1шт.
