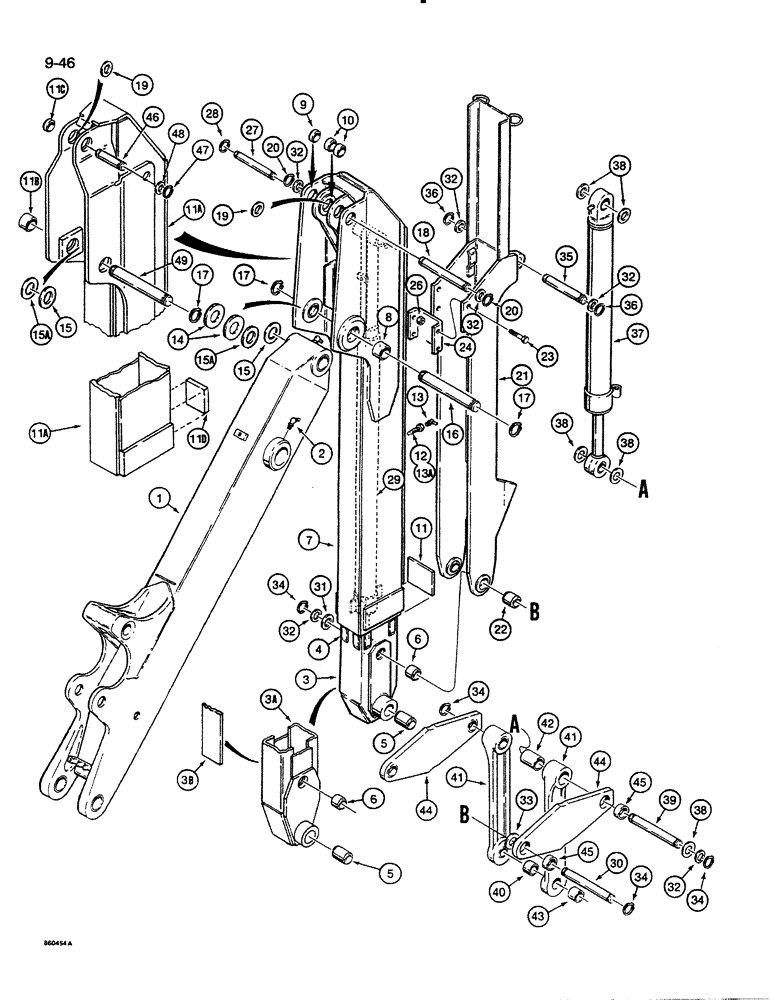

Запчасти Case 35C (9-46) - EXTENDABLE DIPPER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

BOOM - backhoe, see Figure 9-34

1шт.

2

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8 PT self-tapping x 25/32 inch

2шт.

3

D55727

ARM

DIPPER ASSEMBLY - extension, inner, used with D73826 dipper housing, Refs. 7-11, if used

1шт.

Inner dipper extension assemblies are not interchangeable. D55727 (Ref. 3) inner dipper extension assembly must be used with D73826 (Ref. 7) outer dipper housing assembly. Either D55727 (Ref. 3) or D133021 (Ref. 3A) inner dipper extension assembly can be used with D133096 or D133421 (Ref. 7 or 11A) outer dipper housing assembly. (D73826 dipper housing has weld flash on center at bottom inside of housing.)

1шт.

3a

D133021

ARM

DIPPER ASSEMBLY - extension, inner, used with D133096 or D133421 dipper housing, Ref. 7 - 11 or 11A - 11D, if used

1шт.

Inner dipper extension assemblies are not interchangeable. D55727 (Ref. 3) inner dipper extension assembly must be used with D73826 (Ref. 7) outer dipper housing assembly. Either D55727 (Ref. 3) or D133021 (Ref. 3A) inner dipper extension assembly can be used with D133096 or D133421 (Ref. 7 or 11A) outer dipper housing assembly. (D73826 dipper housing has weld flash on center at bottom inside of housing.)

1шт.

3b

D133010

PLATE

- wear, 6 feet (1830 mm) long, D133021 dipper only

1шт.

4

D55688

STRIP

- wear, dipper slide, steel, D55727 dipper only

8шт.

5

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- D55727 or D133021 dipper, at bucket

2шт.

6

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

- D55727 or D133021 dipper, at bucket link

2шт.

D73826

COVER

DIPPER HOUSING ASSEMBLY - backhoe, no longer used, order D133096 dipper housing, D37611 pin, D45034 pin, and (4) D127471 spacers

1шт.

D133096

DIPPER

HOUSING ASSEMBLY - backhoe, service replacement, Includes: Ref. 7 - 11

1шт.

Inner dipper extension assemblies are not interchangeable. D55727 (Ref. 3) inner dipper extension assembly must be used with D73826 (Ref. 7) outer dipper housing assembly. Either D55727 (Ref. 3) or D133021 (Ref. 3A) inner dipper extension assembly can be used with D133096 or D133421 (Ref. 7 or 11A) outer dipper housing assembly. (D73826 dipper housing has weld flash on center at bottom inside of housing.)

1шт.

7

NSS

NOT SOLD SEPARAT

HOUSING - dipper

1шт.

8

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at boom

2шт.

9

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- at dipper cylinder, left-hand side plate, if used

1шт.

10

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- dipper cylinder, inner plate

2шт.

11

D61708

BLOCK

- stop

1шт.

D133421

SLIDE

DIPPER HOUSING ASSY, backhoe does not require D127471 spacers at dipper housing to boom mounting hole location, used in production on some models, not avail., for service order D133096 dipper housing, D37611 pin, D45034 pin, 4, D127471 spacers, & D55727

1шт.

Inner dipper extension assemblies are not interchangeable. D55727 (Ref. 3) inner dipper extension assembly must be used with D73826 (Ref. 7) outer dipper housing assembly. Either D55727 (Ref. 3) or D133021 (Ref. 3A) inner dipper extension assembly can be used with D133096 or D133421 (Ref. 7 or 11A) outer dipper housing assembly. (D73826 dipper housing has weld flash on center at bottom inside of housing.)

1шт.

11a

NSS

NOT SOLD SEPARAT

HOUSING - dipper

1шт.

11b

D30756

BUSHING,51.02mm ID x 63.5mm OD x 31.8mm L

- at boom

2шт.

11c

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- at dipper cylinder

2шт.

11d

D61708

BLOCK

- stop

1шт.

12

D134699

NOZZLE CAP

NOZZLE - extension, grease fitting, for 1/4 inch diameter hole, used with item 13 to lubricate dipper slide, D133421 or D133096 dipper housing, also order 9-72236 instruction sheet

1шт.

13

219-89

LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF

FITTING - grease, 45º, 1/8 PT self-tap x 25/32 inch, used with item 12 or 13A to lubricate dipper side

1шт.

13a

219-107

NOZZLE CAP

NOZZLE - 1/2 inch diameter hole, extension, grease fitting, used with item 13 to lubricate dipper slide, D73826 dipper housing

1шт.

14

D127471

SPACER

- dipper housing to boom, 5/16 inch (8 mm) thick, used with D73826 or D133096 dipper housing only (item 7)

4шт.

15

D44813

SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk

Spacer (.78 mm) .035" Thk

1шт.

15a

195-2155

WASHER,2 1/16" x 3" x .109"

- flat, 2-1/16 x 3 x 1/8 inch, between boom and dipper

1шт.

16

D45034

PIN

- 2 OD x 11-3/4 inch long, dipper housing to boom, used with D73826 or D133096 dipper housing only (item 7)

1шт.

17

D26919

SNAP RING,#200, Ext

Ring, Snap, , pin #200, Ext

2шт.

18

D37611

PIVOT PIN,44.45mm OD x 255.59mm L

PIN - dipper cylinder to dipper housing, used with D73826 or D133096 dipper housing only (item 7)

1шт.

19

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-13/16 x 2-1/2 x 1/8 inch, one on each side of cylinder eye

2шт.

20

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

21

D124163

ARM

EXTENSION ASSEMBLY - dipper, Includes: Ref. 22

1шт.

22

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- bucket link pin

2шт.

23

26-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

- hex, 1/2 NC x 2 inch, grade 8, replaces bolt with lock washer and hex nut used on some models

4шт.

24

D61701

BRACE

PLATE - guide

1шт.

26

131-72

LOCK NUT,1/2"-13

NUT - heavy hex, self-locking, 1/2 inch NC, replaces lock washer and hex nut used on some models

4шт.

27

D44882

PIN,38.1mm OD x 203.2mm L

- extension, Serial Range: cylinder-housing

1шт.

28

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

29

G101183

CYLINDER

- dipper extension, parts list Figure 8-82

1шт.

30

D53818

PIN,44.45mm OD x 278.89mm L

- dipper and dipper extension to bucket links

1шт.

31

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-13/16 x 2-1/2 x 1/8 inch, bucket link to extension

1шт.

32

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

WASHER - spacer, 1/16 inch (1.6 mm) thick

1шт.

33

D77725

WASHER

- spacer, 5/16 inch (7.9 mm) thick

2шт.

34

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

35

D38907

PIN,1.75" OD x 5 5/16 L

- bucket cylinder to dipper extension

1шт.

36

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

37

REF

INSTRUCTION

CYLINDER - bucket, see parts list Figure 8-76 through 8-80

1шт.

38

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-13/16 x 2-1/2 x 1/8 inch, bucket cylinder to links

1шт.

39

D53818

PIN,44.45mm OD x 278.89mm L

- bucket cylinder

1шт.

40

D93227

BUSHING

SPACER - bucket link

1шт.

41

D126492

LINK

- bucket cylinder to bucket, Includes: Ref. 42 & 43

2шт.

42

D121845

BUSHING,44.68mm ID x 57.15mm OD x 70mm L

- at cylinder

1шт.

43

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- at bucket

1шт.

44

D89620

LINK

- bucket cylinder to dipper, Includes: Ref. 45

2шт.

45

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- link

2шт.

46

D121564

PIN

- dipper cylinder to dipper housing, used with D133421

1шт.

housing only

1шт.

47

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

48

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-13/16 x 2-1/2 x 1/8 inch, used with D133421 housing only

2шт.

49

D42911

PIN

- dipper housing to boom, used with D133421 housing only

1шт.
