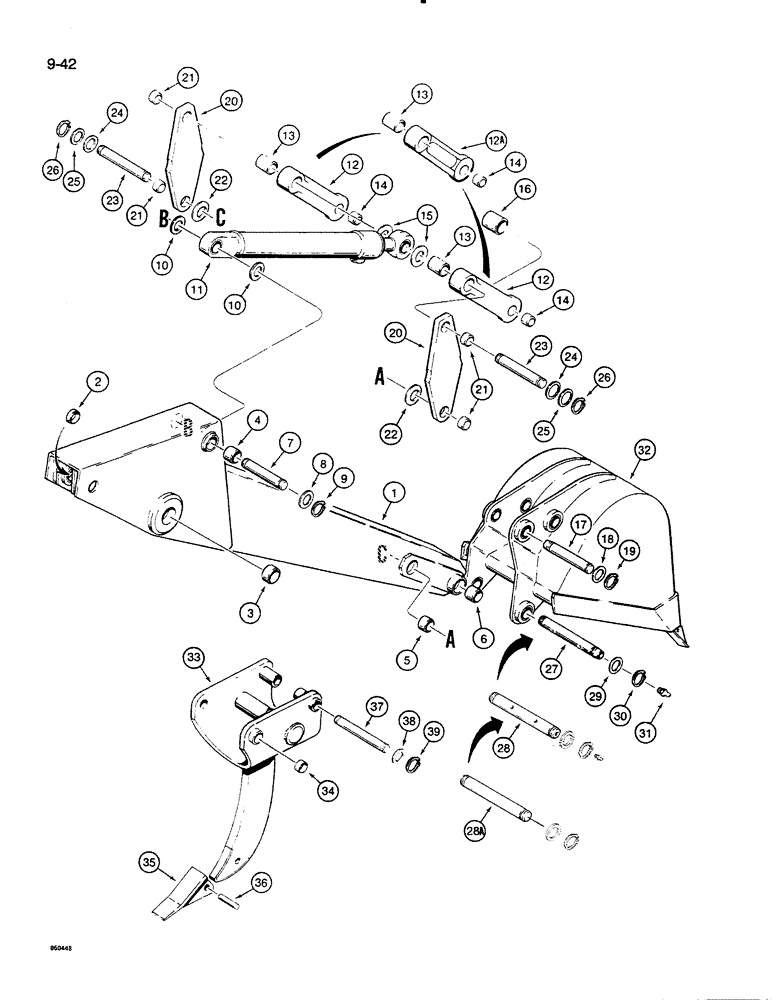

Запчасти Case 35C (9-42) - DIPPER AND BUCKET (09) - CHASSIS/ATTACHMENTS

D77895

BOOM

DIPPER ASSEMBLY - backhoe, uses D34340 bushing (Ref. 4) at bucket cylinder mounting, no longer used, order D128946 dipper

1шт.

D128946

ARM

DIPPER ASSEMBLY - backhoe, Includes: Ref. 1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

DIPPER - backhoe

1шт.

2

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- dipper, at dipper cylinder

2шт.

3

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- dipper, at boom

2шт.

4

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- dipper, at bucket cylinder, D77895 dipper only

2шт.

5

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- dipper, at bucket links

2шт.

6

D55626

BUSHING,44.68mm ID x 57.15mm OD x 41.91mm L

- dipper, at bucket

2шт.

7

D52522

PIN,44.45mm OD x 211.84mm L

- bucket, Serial Range: cylinder-dipper

1шт.

8

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

WASHER - flat, 1/16 inch (1.6 mm) thick

1шт.

9

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

10

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

2шт.

11

REF

INSTRUCTION

CYLINDER ASSEMBLY - backhoe bucket, see parts list Figures 8-76 through 8-80

1шт.

12

D120755

LINK

- bucket cylinder to bucket, no longer used, order D126492 link, Ref. 12A

2шт.

12a

D126492

LINK

- bucket cylinder to bucket, Includes: Ref. 13 & 14

2шт.

13

D121845

BUSHING,44.68mm ID x 57.15mm OD x 70mm L

- at cylinder, D120755 or D126492 link

1шт.

14

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- at bucket, D120755 or D126492 link

1шт.

15

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-13/16 x 2-1/2 x 1/8 inch

2шт.

16

D93227

BUSHING

SPACER - bucket, Serial Range: links-bucket

1шт.

17

D37614

PIN,38mm Od x 246mm L

- bucket, Serial Range: links-bucket

1шт.

18

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special

2шт.

19

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.

20

D89620

LINK

- bucket cylinder to dipper, Includes: Ref. 21

2шт.

21

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- link

2шт.

22

D77725

WASHER

- special, 3/8 inch (9.5 mm) thick

2шт.

23

D53818

PIN,44.45mm OD x 278.89mm L

- bucket, Serial Range: linkage-dipper

2шт.

24

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

25

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

WASHER - flat, 1/16 inch (1.6 mm) thick

1шт.

26

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

27

D64799

PIN,44.45mm OD x 370.84mm L

- dipper to bucket, all buckets except 12 inch (305 mm) buckets

1шт.

28

D55584

PIN,44.45mm OD x 327.15mm L

- dipper to bucket, 12 inch (305 mm) buckets only, uses 219-1 grease fitting, 850C, 850D/855D and 855E Crawler models

1шт.

28a

D40244

PIN,44.45mm OD x 327.02mm L

- dipper to bucket, 12 inch (305 mm) buckets only, does not use 219-1 grease fitting, W14 Loader models

1шт.

29

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch

1шт.

30

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

31

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, used with Ref. 27 or 28 pins

2шт.

32

REF

INSTRUCTION

BUCKET ASSEMBLY - backhoe, see Figures 9-50 through 9-58 for bucket options

1шт.

D54136

SUPPORT ASSY.

POINT ASSEMBLY - frost, backhoe, Includes: Ref. 33 - 36

1шт.

33

NSS

NOT SOLD SEPARAT

BODY - frost point

1шт.

34

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- frost point pivot

2шт.

35

D83306

POINT

- tooth

1шт.

36

D43417

PIN

- tooth point

1шт.

37

D54218

PIN,38.1mm OD x 345.95mm L

- link to frost point

1шт.

38

195-63

WASHER,1 5/8" x 3 1/4" x .180"

- flat, 1-9/16 x 3-1/4 x 3/16 inch

2шт.

39

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

2шт.
