Запчасти Case 35C (9-38) - BOOM LATCH, 850C, 850D/855D AND 855E CRAWLERS ONLY (09) - CHASSIS/ATTACHMENTS

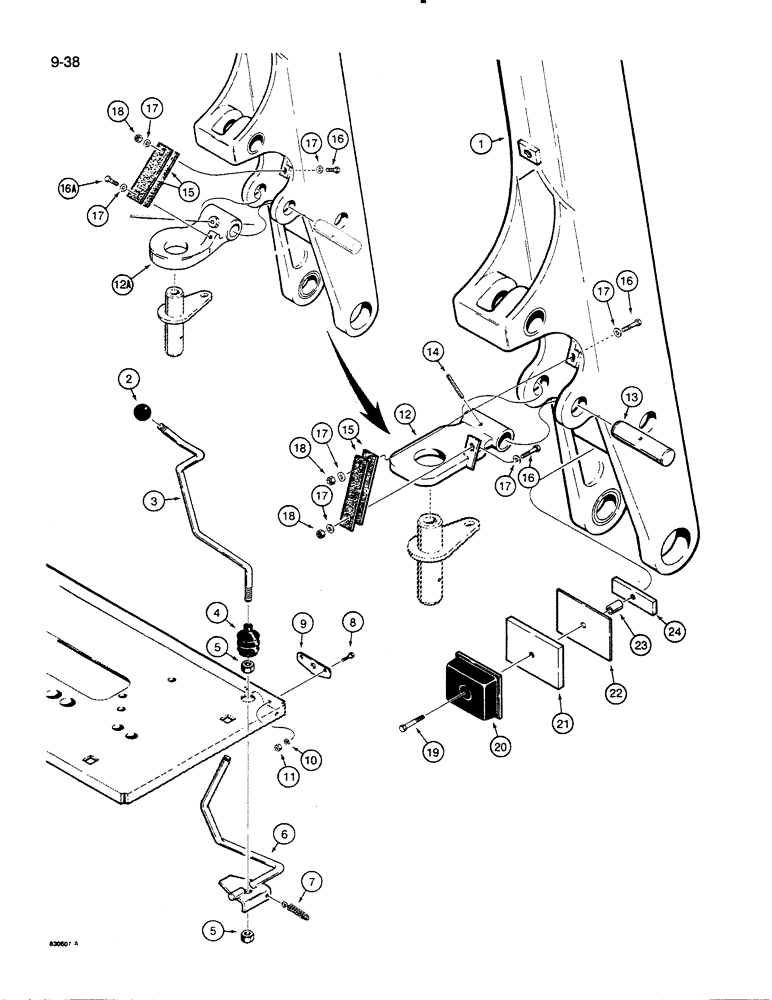

Схема запчастей Case 35C - (9-38) - BOOM LATCH, 850C, 850D/855D AND 855E CRAWLERS ONLY (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

BOOM - backhoe, parts list Figure 9-34

1шт.

2

D59912

KNOB

- lever, latch release

1шт.

3

D91102

LEVER

- boom latch release

1шт.

4

D85869

BELLOWS

BOOT - rubber, lever

1шт.

5

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

6

D91098

ROD

- latch release

1шт.

7

D91097

SPRING

- rod

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

9

D90398

PLATE

- rod support

1шт.

10

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

11

425-105

NUT,5/16"-18, G5

2шт.

12

D90687

LATCH

- backhoe boom, no longer used, for service order Ref.12A, D125775 latch and Ref. 16A, 113-217 bolt

1шт.

12a

D125775

LATCH

- backhoe boom

1шт.

13

D89366

PIN,38.1mm OD x 145mm L

- boom latch

1шт.

14

138-144

LOCK PIN,1/4" x 2 1/2", Slotted

PIN, 1/4" x 2 1/2", Slotted

1шт.

15

L73300

STRAP

- boom latch

2шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1-2шт.

16a

113-217

PREV TORQUE BOLT,Locking, 3/8"-16 x 1", G5, Full Thd

BOLT, , Used with D125775 latch, Ref. 12A Locking, 3/8"-16 x 1", G5, Full Thd

1шт.

17

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

3-4шт.

18

131-217

LOCK NUT

NUT - hex, self-locking, 3/8 inch NC, grade 8

1-2шт.

19

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

20

D90990

GUARD

BUMPER - rubber, boom

1шт.

21

D90970

PLATE

- boom stop, support

1шт.

22

D92254

SHIM

- plate, boom stop

1шт.

23

R46103

SPACER

- plate

1шт.

24

D90971

PLATE

- support

1шт.

Выбрано товаров: 26
