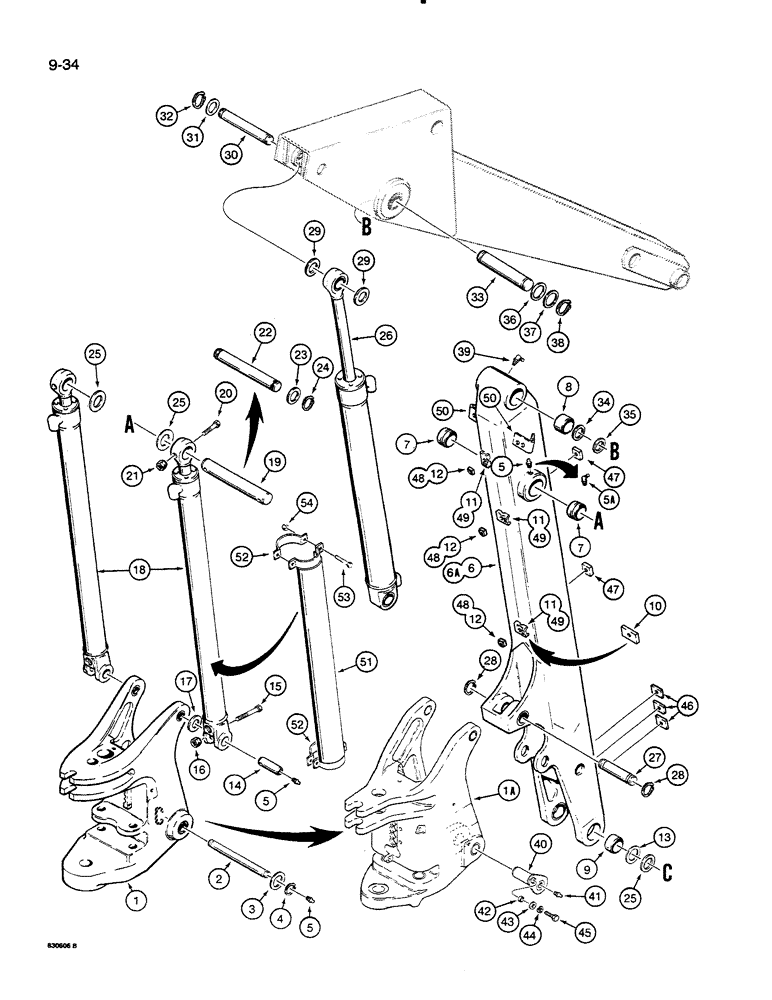

Запчасти Case 35C (9-34) - SWING TOWER AND BOOM (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
D90868
LATHE
TOWER - swing, uses one boom mounting pin, see Figure 9-30 for swing tower and bushings, if used
1шт.
1a
REF
INSTRUCTION
TOWER - swing, uses two boom mounting pins, see Figure 9-30 for swing tower and bushings, if used
1шт.
2
D91240
PIN,50.8mm OD x 402mm L
- boom to swing tower, used with Ref. 1 swing tower
1шт.
3
195-2155
WASHER,2 1/16" x 3" x .109"
- flat, 2-1/16 x 3 x 1/8 inch, used with Ref. 1 swing tower
2шт.
4
D26919
SNAP RING,#200, Ext
Ring, Snap, , pin, used with ref. 1 swing tower #200, Ext
2шт.
5
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8 PT x 21/32 inch
4-6шт.
5a
LUBE NIPPLE,45 Degree Elbow, 1/8" NPTF
FITTING - grease, 45º, 1/8 PT self-tap x 25/32 inch, used on models with extendable dipper, if used
2шт.
6
D121393
LOWER LINK
BOOM - backhoe, mounts to swing tower with (1) Ref. 2 pin, used with D90868 swing tower, Ref.1, Includes: Ref. 7 - 10
1шт.
6a
D131153
LOWER LINK
BOOM - backhoe, mounts to swing tower with (2) Ref. 40 pins, used with D127544 or D136868 swing tower, Ref.1A, Includes: Ref. 7 - 10
1шт.
7
D95362
BUSHING
- boom cylinder mounting, top
2шт.
8
D31142
BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L
- dipper pivot
2шт.
9
D50698
BUSHING,51.03mm ID x 69.98mm OD x 40.64mm L
- boom pivot
2шт.
10
D50004
BLOCK
- tapped, welded to boom, if used
2шт.
11
D88417
CAGE ASSY.
CAGE - weld to boom for retaining Ref. 12, if used
1шт.
12
224-2206
SQUARE NUT,Sq, 3/8"-16
- square, 3/8 inch NC, if used
1шт.
13
D44813
SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk
Spacer, between swing tower and boom .035" Thk
1шт.
14
D49866
PIN,38.1mm OD x 96.52mm L
- boom cylinder to swing tower
2шт.
15
113-252
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
2шт.
16
131-52
NUT,3/8"-16, GC
NUT - light hex, self-locking, 3/8 inch NC
2шт.
17
D28610
WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk
- spacer, flat, 1-1/2 inch (38 mm) ID
1шт.
18
CYLINDER,Double Acting, 44.45mm Rod, 1062.99mm Stroke
ASSEMBLY - boom, see parts list Figure 8-72
2шт.
18
G106168R
REMAN-HYD CYLINDER
35C, 35C WL, Both BACKHOE, ASSEMBLY, boom
2шт.
18
G106168C
CORE-HYD CYLINDER
Return Number
2шт.
19
D49865
PIN,50.8mm OD x 304.8mm L
- boom cylinder to boom, retained by bolt, if used
1шт.
20
413-872
BOLT,Hex, 1/2" - 13 x 4-1/2", Gr 5
- hex, 1/2 NC x 4-1/2 inch, if used
2шт.
21
131-70
NUT,1/2"-13, GB
NUT - light hex, self-locking, 1/2 inch NC, if used
2шт.
22
L103135
PIN
- boom cylinder to boom, retained by snap rings, if used
1шт.
23
72990
WASHER
- flat, 2 inch (51 mm) ID x 1/16 inch (.06 mm) thick, if used
2шт.
24
D26919
SNAP RING,#200, Ext
Ring, Snap, , pin, if used #200, Ext
2шт.
25
195-2155
WASHER,2 1/16" x 3" x .109"
- flat, 2-1/16 x 3 x 1/8 inch, used as a spacer
1шт.
26
G106682
CYLINDER ASSY.
CYLINDER ASSEMBLY - dipper, see parts list Figure 8-74
1шт.
27
D72359
PIN,44.45mm OD x 142.24mm L
- dipper, Serial Range: cylinder-boom
1шт.
28
D25280
SNAP RING,#175, Ext
Ring, Snap, , pin #175, Ext
2шт.
29
495-81226
WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk
- flat, 1-13/16 x 2-1/2 x 1/8 inch
2шт.
30
D52522
PIN,44.45mm OD x 211.84mm L
- dipper, Serial Range: cylinder-dipper
1шт.
31
51200255
SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk
WASHER - spacer, 1-3/4 inch (44 mm) ID
1шт.
32
D25280
SNAP RING,#175, Ext
Ring, Snap, , pin #175, Ext
2шт.
33
D45523
PIN,50.8mm OD x 276.35mm L
-, Serial Range: boom-dipper
1шт.
34
D44813
SHIM,53.34mm ID x 76.2mm OD x 0.89mm Thk
Spacer, 2 inch (51 mm) ID .035" Thk
1шт.
35
95-81155
WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk
- flat, 2-1/16 x 3 x 1/8 inch
1шт.
36
72990
WASHER
- 2 inch (51 mm) ID x 1/16 inch (1.6 mm) thick
2шт.
37
95-81155
WASHER,52.38mm ID x 76.2mm OD x 3.35mm Thk
- flat, 2-1/16 x 3 x 1/8 inch
2шт.
38
D26919
SNAP RING,#200, Ext
Ring, Snap, , pin #200, Ext
2шт.
39
219-55
LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF
NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg
1шт.
40
D125594
PIN,50.8mm OD x 136mm L
- boom to swing tower, used with Ref. 1A swing tower
2шт.
41
219-1
LUBE NIPPLE,1/8" - 27 NPTF
FITTING - grease, straight, 1/8 PT x 21/32 inch, used with Ref. 1A swing tower
2шт.
42
D125595
BUSHING
SPACER - pin, used with Ref. 1A swing tower
2шт.
43
195-41
WASHER,5/8"
Used with Ref. 1A swing tower 5/8"
2шт.
44
492-11062
BEARING WASHER,5/8"
WASHER, LOCK, , Used with Ref. 1A swing tower 5/8"
2шт.
45
413-1024
BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5
Used with Ref. 1A, swing tower Hex, 5/8"-11 x 1 1/2", G5, Full Thd
2шт.
46
D83825
BLOCK
- tapped, welded to boom , USED WITH EXTENDABLE DIPPER
3шт.
47
25-288
SQUARE NUT,Sq, 1/2"-13, G2, Hvy
- square, heavy, 1/2 inch NC, welded to boom , USED WITH EXTENDABLE DIPPER
2шт.
48
224-2206
SQUARE NUT,Sq, 3/8"-16
- square, 3/8 inch NC , USED WITH EXTENDABLE DIPPER
2-3шт.
49
D88417
CAGE ASSY.
CAGE - welded to boom , USED WITH EXTENDABLE DIPPER
2-3шт.
50
D45559
BRACKET
- tube clamp, welded to boom , USED WITH EXTENDABLE DIPPER
2шт.
51
D62468
GUARD
- boom cylinder, if used
2шт.
52
D62467
BRACKET
- guard mounting, if used , BOOM CYLINDER
4шт.
53
413-552
BOLT,Hex, 5/16" - 18 x 3-1/4", Gr 5
- hex, 5/16 NC x 3-1/4 inch , BOOM CYLINDER GUARD
8шт.
54
LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A
NUT - hex, self-locking, 5/16 inch NC, BOOM CYLINDER GUARD
8шт.
Выбрано товаров: 59
