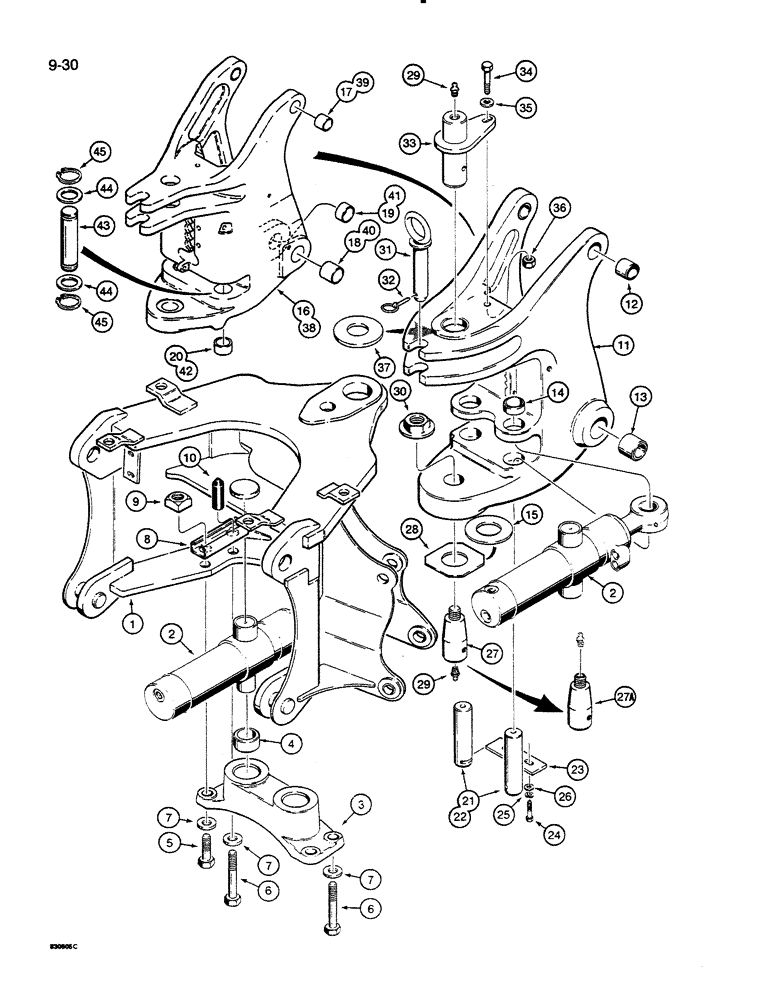

Запчасти Case 35C (9-30) - SWING CYLINDERS AND SWING TOWER (09) - CHASSIS/ATTACHMENTS

1

D93335

FRAME

- backhoe mounting, see Figure 9-28 for bushings

1шт.

2

REF

INSTRUCTION

CYLINDER ASSEMBLY - backhoe swing, see parts list Figures 8-68 or 8-70

2шт.

3

D94401

SUPPORT

- swing cylinders, Includes: Ref. 4

1шт.

4

D60159

BUSHING,60.55mm ID x 69.85mm OD x 38.1mm L

- support

2шт.

5

413-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

2шт.

6

113-945

BOLT,Hex, 1" - 8 x 5-1/2", Gr 5

- hex, 1 NC x 5-1/2 inch, special thread length

2шт.

7

D36505

WASHER,26.99mm ID x 47.63mm OD x 2.38mm Thk

- hardened, 1 inch

4шт.

8

D94229

LARGE PLATE

RETAINER - nut

2шт.

9

129-568

NUT,Sq, 1"-8, G5

- square, 1 inch NC

4шт.

10

D90057

COVER

- vinyl, bolt

2шт.

11

D90868

LATHE

TOWER - swing, without inner ears, uses (1) boom mtg pin and Ref. 21 - 26 for mtg swing cylinder, see Ref. 16, see Figure 9-34 for boom attaching parts, Includes: Ref. 12 - 15

1шт.

When ordering a new D90868 swing tower, two D88985 pins (Ref. 21) and one D94031 plate (Ref. 23) must also be ordered, unless these Refs. are already installed.

1шт.

12

D49429

BUSHING

- at boom cylinder

2шт.

13

D91241

BUSHING,51.02mm ID x 69.88mm OD x 60mm L

- boom mounting

2шт.

14

D94018

BUSHING,44.58mm ID x 53.98mm OD x 30mm L

- swing cylinder mounting, if used

4шт.

15

D90863

WASHER,58.35mm ID x 130mm OD x 6mm Thk

Washer - Bearing, welded to bottom of some swing towers, not used when Ref. 28 is used 6mm Thk

1шт.

16

D127544

FRAME

TOWER - swing, 2-1/8 inch OD bushings at swing cylinder mtg holes, with inner ears, uses (2) boom mtg pins & Ref. 21 - 26 for mtg swing, see Ref. 11, see Figure 9-34 for boom attaching parts

1шт.

No longer available. For service order D136868 swing tower, (2) R57306 pins, (4) D25280 snap rings, & (4) 495-81226 washers on Fig. 9-32, Ref. 43 - 45

1шт.

17

D49429

BUSHING

- at boom cylinder

2шт.

18

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- outer ears, boom mounting

2шт.

19

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- inner ears, boom mounting

2шт.

20

D94018

BUSHING,44.58mm ID x 53.98mm OD x 30mm L

- 2-1/8 inch OD, swing cylinder mounting

4шт.

21

D88985

PIN,44.45mm OD x 181.5mm L

- swing cylinder to swing tower, 7-1/8 inch (181 mm) long, used with item 11 or 16 swing tower, if used

2шт.

When ordering a new D90868 swing tower, two D88985 pins (Ref. 21) and one D94031 plate (Ref. 23) must also be ordered, unless these Refs. are already installed.

1шт.

22

D94019

PIN,44.4mm OD x 196.5mm L

- swing cylinder to swing tower, 7-3/4 inch (197 mm) long, used with Ref. 11 or 16 swing tower, if used

2шт.

When ordering a new D90868 swing tower, two D88985 pins (Ref. 21) and one D94031 plate (Ref. 23) must also be ordered, unless these Refs. are already installed.

1шт.

23

D94031

PLATE

- pin retaining, 6-3/8 inch (162 mm) long, mounts between pins, used with Ref. 11 or 16 swing tower

1шт.

When ordering a new D90868 swing tower, two D88985 pins (Ref. 21) and one D94031 plate (Ref. 23) must also be ordered, unless these Refs. are already installed.

1шт.

24

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

Used with item 11 or 16 swing tower Hex, 1/2"-13 x 1", G5, Full Thd

2шт.

25

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, , Used with item 11 or 16 swing tower 1/2"

2шт.

26

D64050

WASHER

- flat, 1/2 inch, used with item 11 or 16 swing tower

2шт.

27

D120495

PIN

- tapered, swing tower to backhoe frame, lower, Ref. 29 grease fitting mounts in bottom of pin, no longer used, order D123653 pin (Ref. 27A)

1шт.

27a

D123653

PIN,57.15mm OD x 140mm L

- tapered, swing tower to backhoe frame, lower, Ref. 29 grease fitting mounts in top of pin

1шт.

28

D89338

SPACER

- bearing, if used, not used when Ref. 15 is used

1шт.

29

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

30

D120610

NUT

- hex, 1-3/4 inch NF, special

1шт.

31

D90576

PIN

- lock, backhoe swing

1шт.

32

D33805

PIN

- self-locking

1шт.

33

D90727

PIN,57.15mm OD x 198mm L

- swing tower to backhoe frame, upper

1шт.

34

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

1шт.

35

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

36

131-70

NUT,1/2"-13, GB

NUT - light hex, self-locking, 1/2 inch NC

1шт.

37

D74249

WASHER,60mm ID x 120mm OD x 2mm Thk

SPACER - bearing, 5/64 inch (2 mm) thick

1шт.

38

D136868

FRAME

TOWER - swing, 2-1/4 inch O.D. bushings at swing cylinder mounting holes, with inner ears, uses two boom mounting pins and Ref. 43 - 45 for mounting swing cylinder, see Figure 9-34 for boom attaching parts

1шт.

39

D49429

BUSHING

- at boom cylinder

2шт.

40

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- outer ears, boom mounting

2шт.

41

D38943

BUSHING,51.02mm ID x 63.5mm OD x 28.6mm L

- inner ears, boom mounting

2шт.

42

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- 2-1/4 inch O.D., swing cylinder mounting

4шт.

43

R30449

PIN

- swing cylinder to swing tower, used with item 38 swing tower

2шт.

44

495-81226

WASHER,46.02mm ID x 63.5mm OD x 3.35mm Thk

- flat, 1-13/16 x 2-1/2 x 1/8 inch, used with Ref. 38 swing tower

4шт.

45

D25280

SNAP RING,#175, Ext

Ring, Snap, , R30449 pin, used with ref. 38 swing tower #175, Ext

4шт.
