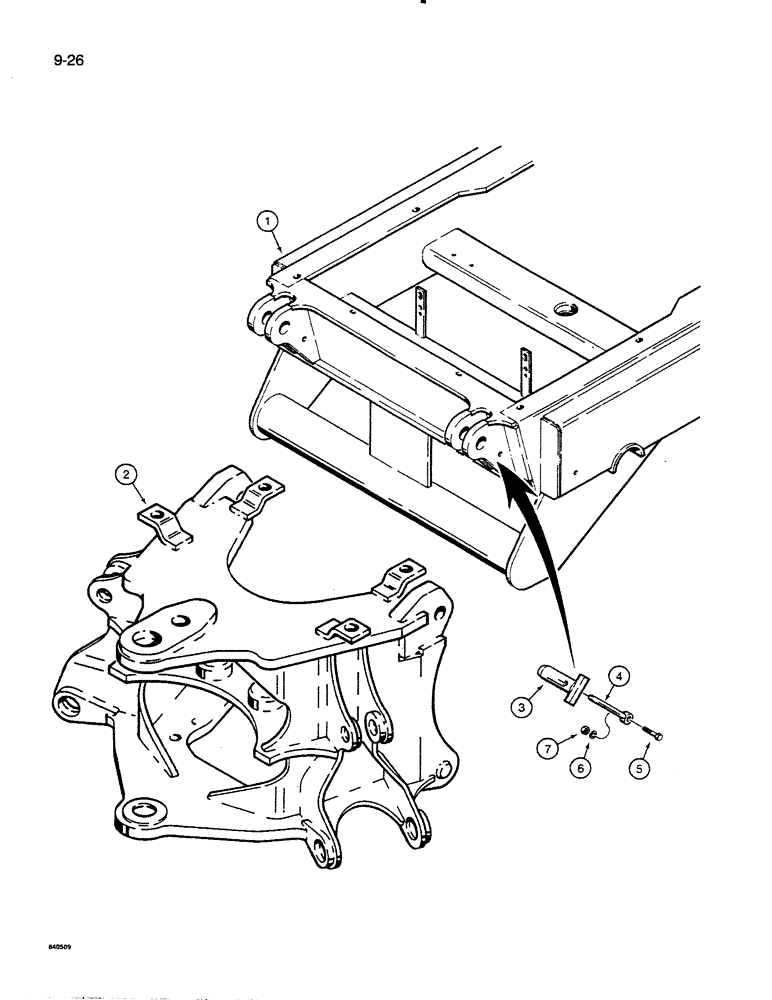

Запчасти Case 35C (9-26) - BACKHOE MOUNTING PARTS, W14 LOADER ONLY (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CHASSIS - rear backhoe frame

1шт.

See W14 Parts Catalog for the rear backhoe chassis and lower backhoe mounting hook.

1шт.

2

D93335

FRAME

- backhoe mounting, see Figure 9-28

1шт.

3

D56335

PIN

- backhoe mounting

2шт.

4

L109671

ROD

- special, pin mounting

2шт.

5

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.
