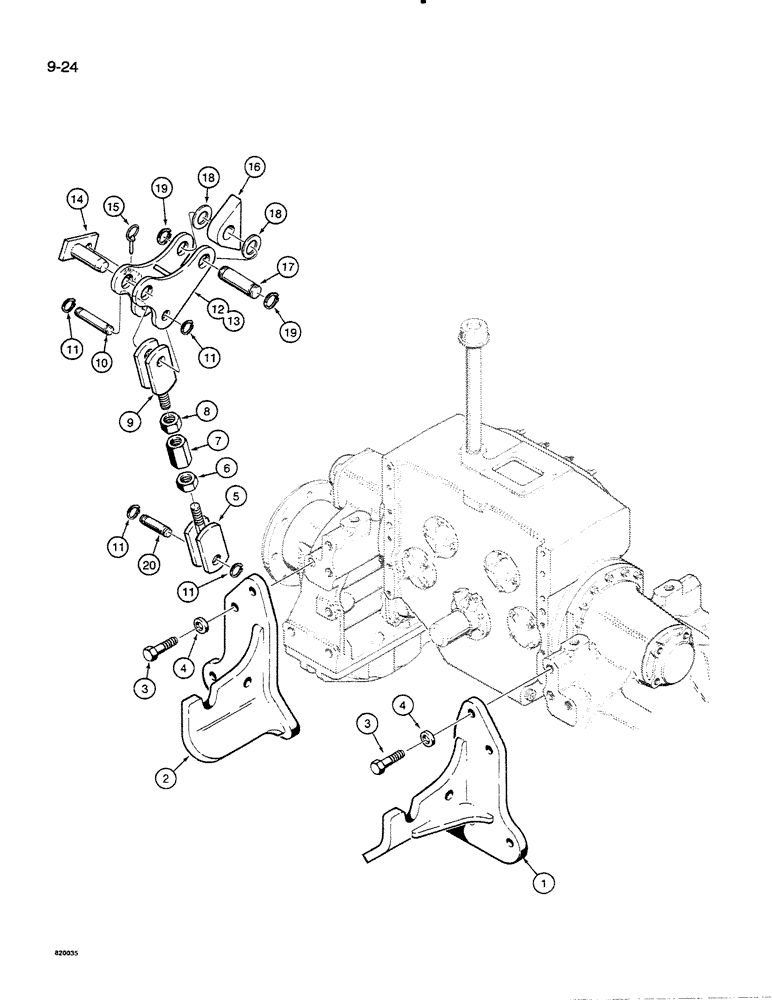

Запчасти Case 35C (9-24) - BACKHOE MOUNTING PARTS, 850C, 850D/855D AND 855E CRAWLERS ONLY (09) - CHASSIS/ATTACHMENTS

1

R46431

SUPPORT

BRACKET - support, lower left-hand

1шт.

2

R46430

SUPPORT

BRACKET - support, lower right-hand

1шт.

3

413-1644

BOLT,Hex, 1" - 8 x 2-3/4", Gr 5

- hex, 1 NC x 2-3/4 inch

8шт.

4

D30196

WASHER

- hardened

8шт.

5

R36824

ROD

- tension, right-hand threads

2шт.

6

425-1116

NUT,1"-14, G5

- hex, 1 inch NF

2шт.

7

R36828

GUARD

ADJUSTER - tension rods

2шт.

8

129-330

NUT,1"-14, G5, LH

2шт.

9

R36826

ROD

- tension, left-hand threads

2шт.

10

D36614

PIN,38.1mm OD x 107.95mm L

- tension rods, upper

2шт.

11

D26918

SNAP RING,#125, Ext

Ring, Snap, , pin #125, Ext

8шт.

12

R46412

LARGE PLATE

LINK - upper right-hand

1шт.

13

R46413

LARGE PLATE

LINK - upper left-hand

1шт.

14

R56600

PIN

- mounting frame, upper, replaces R39712 pin

2шт.

15

A30338

PIN

- retaining, self-locking

2шт.

16

R46190

LARGE PLATE

LUG - link, welds to seat and tank frame

2шт.

17

D28037

AXLE PIN

PIN - link at backhoe

2шт.

18

D31312

WASHER

- flat, special

4шт.

19

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

20

D33816

PIN

- tension rods, lower

2шт.
