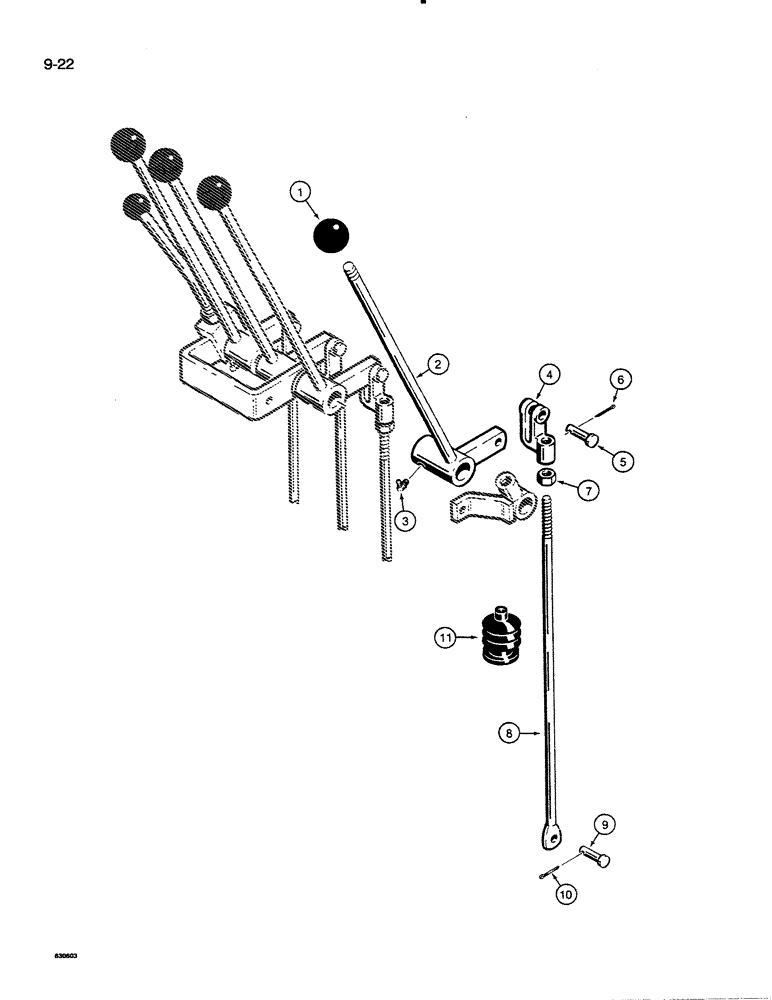

Запчасти Case 35C (9-22) - EXTENDABLE DIPPER CONTROL (09) - CHASSIS/ATTACHMENTS

1

L54563

KNOB

- control lever

1шт.

2

D87528

LEVER

- control, extendable dipper

1шт.

3

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

1шт.

4

L11182

YOKE,3/8" - 24

CLEVIS - 3/8 inch, offset

1шт.

5

141-54

CLEVIS PIN,3/8" x 1 1/16"

hardened 3/8" x 1 1/16"

1шт.

6

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

7

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

8

D30821

ROD

- extendable dipper control, straight, uses offset clevis

1шт.

9

141-53

CLEVIS PIN,5/16" x .940"

hardened 5/16" x .940"

1шт.

10

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

1шт.

11

D85869

BELLOWS

BOOT - rod, if used

1шт.
