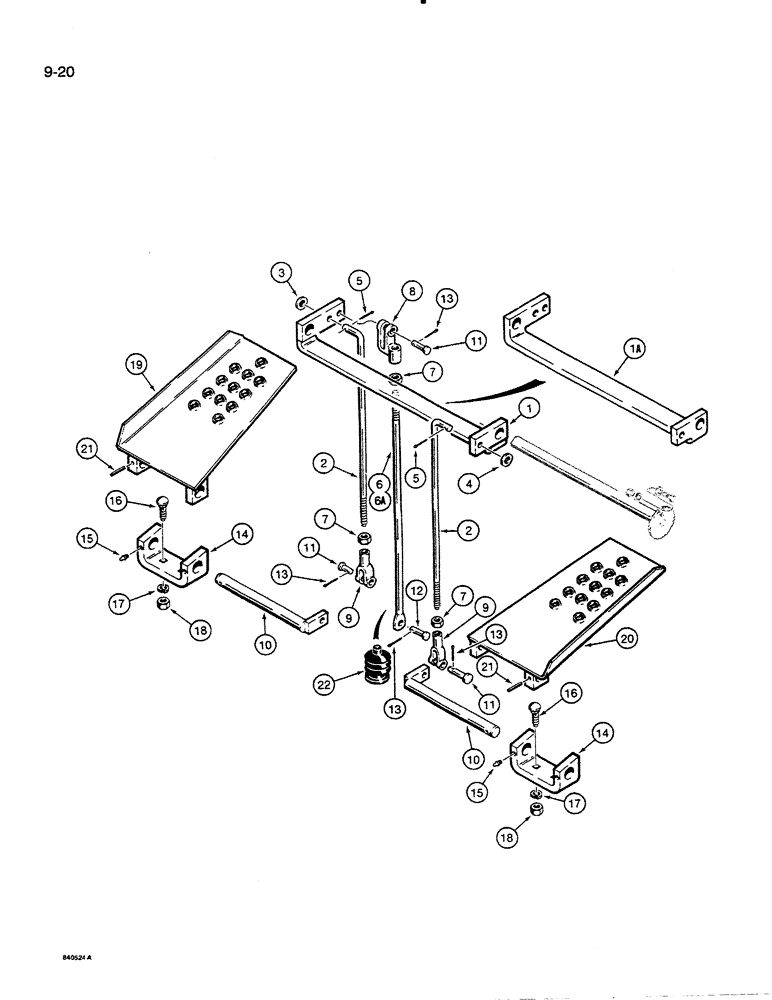

Запчасти Case 35C (9-20) - BACKHOE CONTROLS, SWING PEDALS AND MOUNTING (09) - CHASSIS/ATTACHMENTS

1

D86082

BRACKET

- swing pivot, no longer used, order D129392 bracket

1шт.

1a

D129392

BRACKET

- swing pivot

1шт.

2

D81905

ROD

- swing pedal, Serial Range: shafts-bracket

2шт.

3

T40163

WASHER

- flat, left-hand rod

1шт.

4

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16"), RH rod 3/8", SAE

1шт.

5

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

2шт.

6

D30821

ROD

- swing bracket to valve, used on 850C, 850D/855D or 855E Crawler models

1шт.

6a

L108967

ROD

- swing bracket to valve, used on W14 Loader models

1шт.

7

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

3шт.

8

L11182

YOKE,3/8" - 24

CLEVIS - 3/8 inch offset, used on models with or without extendable dipper

1шт.

9

213-41

ADJUSTABLE CLEVIS,3/8"-24

replaces fiberglass clevis on some models 3/8"-24

2шт.

10

D89317

SHAFT

- swing pedal

2шт.

11

141-54

CLEVIS PIN,3/8" x 1 1/16"

hardened 3/8" x 1 1/16"

3шт.

12

141-53

CLEVIS PIN,5/16" x .940"

hardened 5/16" x .940"

1шт.

13

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.

14

D92817

BRACKET

- swing pedal shaft

2шт.

15

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

4шт.

16

111-319

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G2

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

425-106

NUT,3/8"-16, Cl 5

4шт.

19

D87888

PEDAL

- swing, left-hand

1шт.

20

D87886

PEDAL

- swing, right-hand

1шт.

21

138-304

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

2шт.

22

D85869

BELLOWS

BOOT - rod, if used

1шт.
