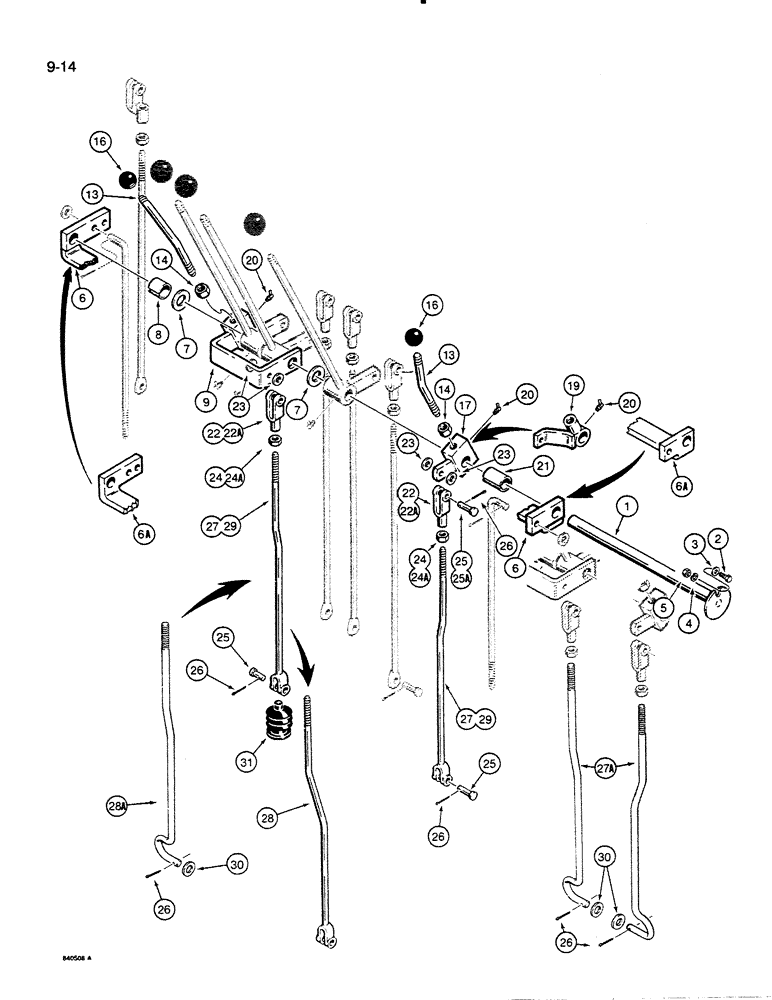

Запчасти Case 35C (9-14) - BACKHOE CONTROLS, STABILIZER CONTROL LEVERS AND LINKAGE (09) - CHASSIS/ATTACHMENTS

1

D123224

SHAFT

- control levers

1шт.

2

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

3

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

1шт.

4

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

5

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

6

D86082

BRACKET

- swing pivot, no longer used, order D129392 bracket

1шт.

6a

D129392

BRACKET

- swing pivot

1шт.

7

195-545

WASHER,3/4", SAE

- flat, 13/16 x 1-15/32 x 1/8 inch, used as a shim

1шт.

8

D88212

BUSHING

SPACER - left-hand, not used with extendable dipper

1шт.

9

D92993

BRACKET

- left-hand stabilizer pivot

1шт.

10

RESERVED

1шт.

11

RESERVED

1шт.

12

RESERVED

1шт.

13

L108004

LEVER

- control, stabilizer

2шт.

14

425-118

NUT,1/2"-20, G5

- hex, 1/2 inch NF

2шт.

15

RESERVED

1шт.

16

D59912

KNOB

- stabilizer control levers

2шт.

17

D92995

LEVER

- pivot, right-hand stabilizer on models without extendable dipper

1шт.

18

RESERVED

1шт.

19

D87834

LEVER

- pivot, right-hand stabilizer on models with extendable dipper

1шт.

20

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

FITTING - grease, 90 degree, 1/4-28 taper x 3/4 inch

2шт.

21

D88213

SPACER

- right-hand, not used with extendable dipper

1шт.

22

H44198

YOKE

CLEVIS - 5/16 inch, fiberglass, replaces metal clevis on some models, used on 850C, 850D/855D or 855E Crawler models

2шт.

22a

L108937

FORK

CLEVIS - 3/8 inch, used on W14 Loader models

2шт.

23

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch, used on W14 Loader models

4шт.

24

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF, Used on 850C, 850D/855D or 855E Crawler models

2шт.

24a

425-116

NUT,3/8" - 24, Gr 5

Hex, Used on W14 Loader models 3/8"-24, G5

2шт.

25

141-53

CLEVIS PIN,5/16" x .940"

hardened, used on 850C, 850D/855D or 855E Crawler models 5/16" x .940"

2-4шт.

25a

141-60

CLEVIS PIN,5/16" x 1 1/8"

PIN - clevis, 5/16 x 1-1/8 inch, hardened, used on W14 Loader models

2шт.

26

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

4шт.

27

D85934

ROD

- stabilizer control, two used on models without extendable dipper, used on 850C, 850D/855D or 855E Crawler models, no longer used, order D126331 rod (item 27A)

1-2шт.

27a

D126331

STEM

ROD - stabilizer control, two used on models without extendable dipper, used on 850C, 850D/855D, or 855E Crawler models

1-2шт.

28

D87482

ROD

- left-hand stabilizer control on models with extendable dipper, used on 850C, 850D/855D or 855E Crawler models, if used

1шт.

28a

D126334

ROD

- left-hand stabilizer control on models with extendable dipper, used on 850C, 850D/855D or 855E Crawler models, if used

1шт.

29

L108465

ROD

- stabilizer control, used on W14 Loader models

2шт.

30

495-21031

WASHER,1/4"

- flat, 5/16 x 47/64 x 1/16 inch, if used

2шт.

31

D85869

BELLOWS

BOOT - rods, if used

2шт.
