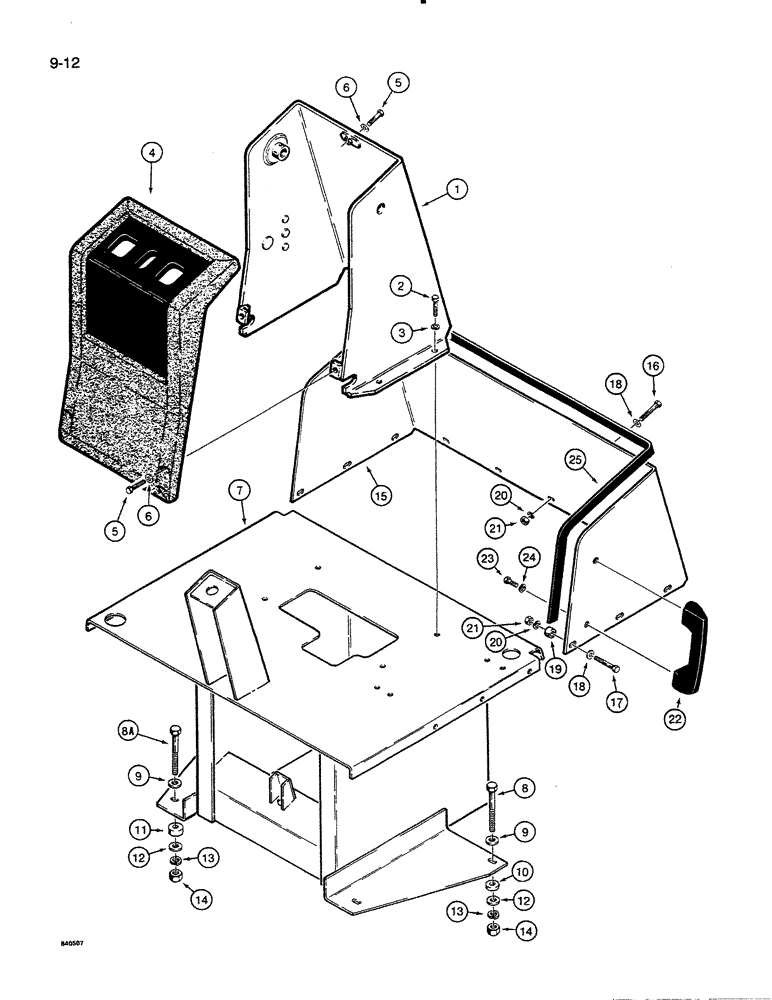

Запчасти Case 35C (9-12) - CONTROL TOWER, W14 LOADER ONLY (09) - CHASSIS/ATTACHMENTS

1

D123189

CONTROL BLOCK

TOWER - backhoe

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

D124081

COVER ASSY

COVER - console, includes decals, see page 9-59

1шт.

5

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

3шт.

6

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

3шт.

7

L108496

LATHE

BASE - foot shield

1шт.

8

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex, 1/2 NC x 2-1/4 inch

2шт.

8a

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- hex, 1/2 NC x 2-1/2 inch

2шт.

9

95-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 1/8 inch

4шт.

10

L108386

SPACER

- floorboard, front

2шт.

11

L108387

SPACER

- floorboard, rear

2шт.

12

195-2054

WASHER,17/32" x 2" x .238"

- flat, 17/32 x 2 x 1/4 inch

4шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

15

L109820

GUARD

- swing pedal

1шт.

16

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

5шт.

17

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch

6шт.

18

495-21038

WASHER,5/16"

11шт.

19

L74703

SPACER

- used on shield side bolts only

6шт.

20

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

11шт.

21

425-105

NUT,5/16"-18, G5

11шт.

22

A23725

HANDLE

- grab, guard

1шт.

23

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

24

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

25

REF

INSTRUCTION

TRIM - edge, swing pedal guard, 83 inch (2108 mm) long, cut to required length from F42827, see below

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, 116 inch (2946 mm) long

1шт.
