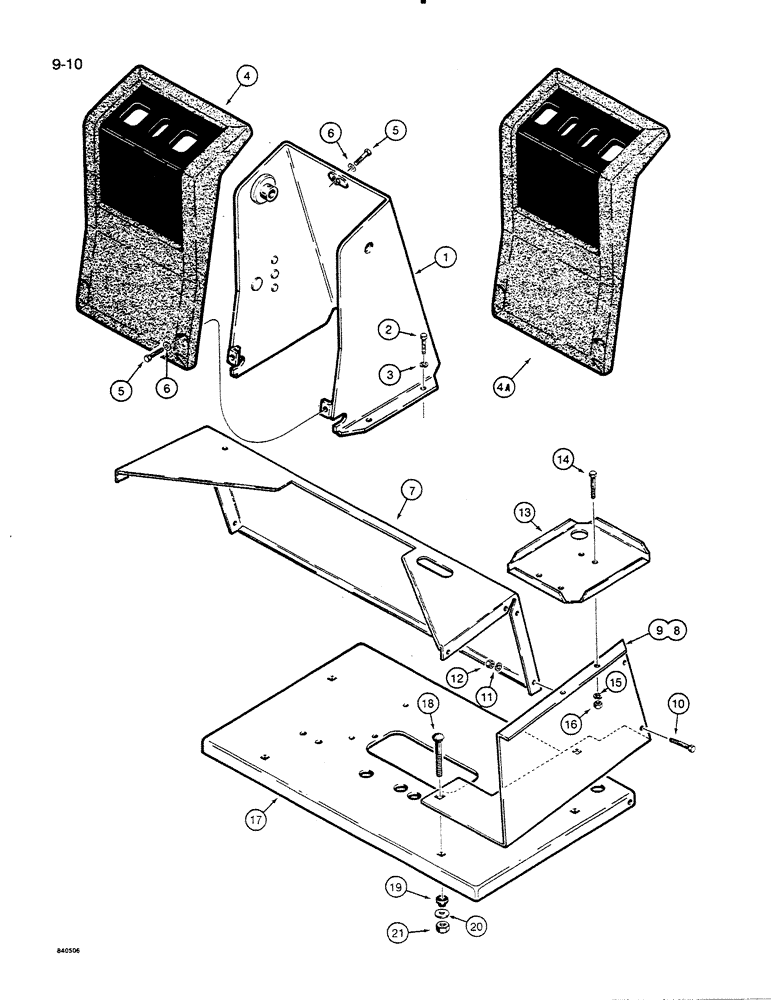

Запчасти Case 35C (9-10) - CONTROL TOWER, 850C 850D/855D AND 855E CRAWLERS ONLY (09) - CHASSIS/ATTACHMENTS

1

D123189

CONTROL BLOCK

TOWER - control, backhoe

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

4шт.

3

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

4

D124081

COVER ASSY

COVER - console, used without extendable dipper, includes decals, see page 9-59

1шт.

4a

D124082

COVER

- console, used with extendable dipper, includes decals, see page 9-59

1шт.

5

281-18712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - self-tapping, hex washer head, 1/4 NC x 3/4 inch

3шт.

6

195-81004

WASHER,0.31" ID x 0.75" OD x 0.07" Thk

- flat, 5/16 x 3/4 x 1/16 inch

3шт.

7

D92241

PANEL

- rear closure, includes decals, see page 9-59

1шт.

8

R46425

PANEL

- left-hand closure, not shown

1шт.

9

R46424

PANEL

- right-hand closure

1шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

11

492-11038

LOCK WASHER,3/8"

8шт.

12

425-106

NUT,3/8"-16, Cl 5

8шт.

13

R46429

STEP

PLATE - step

2шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

15

492-11038

LOCK WASHER,3/8"

4шт.

16

425-106

NUT,3/8"-16, Cl 5

4шт.

17

D124433

PLATE

- backhoe, floor

1шт.

18

12-832

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 2", Gr 2, Full Thd

BOLT - carriage, 1/2 NC x 2 inch

4шт.

19

R29799

SHOCK ABSORBER

MOUNT - rubber

4шт.

20

B15606

WASHER

- flat, special

4шт.

21

131-10

NUT,1/2"-13, GB

NUT, LOCK, 1/2"-13, GB

4шт.
