Запчасти Case 35C (9-08) - BACKHOE SEAT, 855E CRAWLER ONLY (09) - CHASSIS/ATTACHMENTS

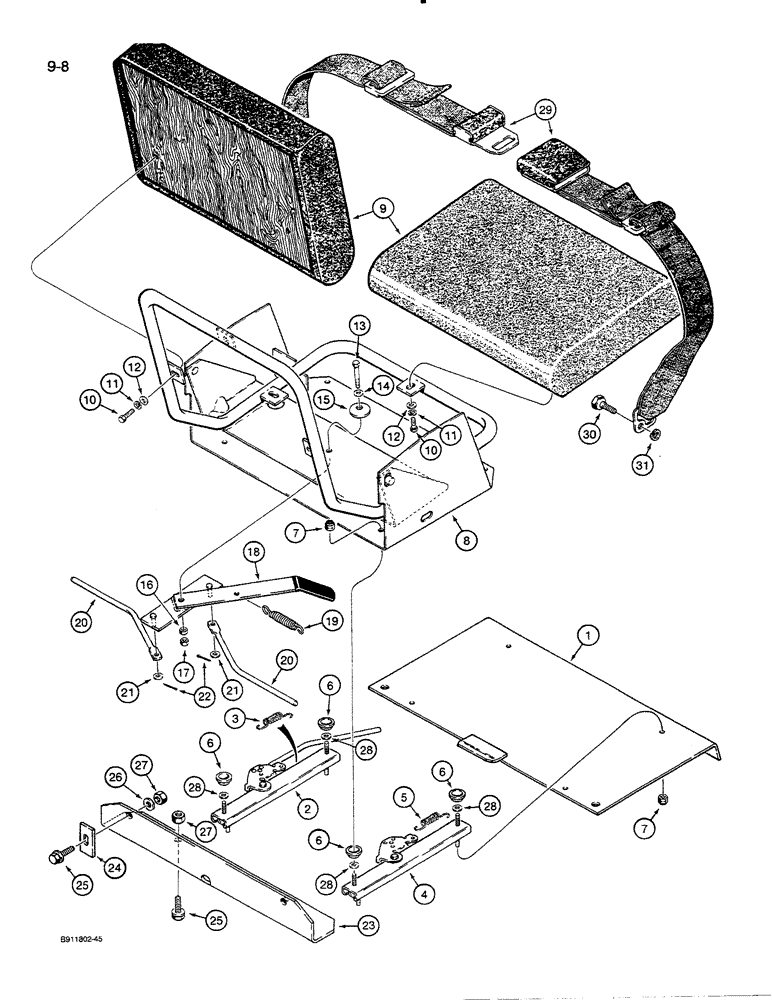

Схема запчастей Case 35C - (9-08) - BACKHOE SEAT, 855E CRAWLER ONLY (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

R53232

LARGE PLATE

PLATE - seat mounting, includes battery decal

1шт.

2

R53178

ADJUSTER

ASSEMBLY - seat, left-hand, with adjuster handle, Includes: Ref. 3

1шт.

3

L35503

SPRING

- seat adjuster

1шт.

4

R52275

ADJUSTER

ASSEMBLY - seat, right-hand, Includes: Ref. 5

1шт.

5

L35503

SPRING

- seat adjuster

1шт.

6

A45111

SPACER

- cupped, between seat adjuster and seat frame

4шт.

7

131-651

NUT,5/16"-18, GB

NUT - hex, self-locking, 5/16 inch NC

8шт.

8

R58434

FRAME

- seat

1шт.

9

R48744

CUSHION ASSY.

CUSHION - seat

2шт.

10

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

6шт.

11

492-11038

LOCK WASHER,3/8"

6шт.

12

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

6шт.

13

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

14

496-41041

WASHER,13/32" x 1 1/8" x .134"

- flat, 13/32 x 1-1/8 x 9/64 inch, hardened

1шт.

15

R14771

WASHER

SPRING - Belleville, seat handle mounting

1шт.

16

425-146

JAM NUT,3/8" - 16, Gr 5

- hex, jam, 3/8 inch NC

1шт.

17

425-106

NUT,3/8"-16, Cl 5

1шт.

18

R48525

HANDLE

- seat release

1шт.

19

R29849

SPRING

- seat release handle

1шт.

20

R58432

ROD

- seat release

2шт.

21

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

22

32-610

COTTER PIN,3/32" x 5/8"

PIN, SPLIT (COTTER), 3/32" x 5/8"

2шт.

23

R58431

PANEL

ANGLE - seat alignment stop

1шт.

24

R49227

LARGE PLATE

PLATE - seat height alignment

2шт.

25

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

4шт.

26

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

2шт.

27

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

28

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

4шт.

29

D85816

SAFETY BELT

BELT - seat, 3 inch (76 mm) wide

1шт.

30

F42236

STEP BOLT

BOLT - shoulder, 7/16 NF X 1-1/4 inch

2шт.

31

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

Выбрано товаров: 31
