Запчасти Case 35C (9-04) - BACKHOE SEAT, 850C CRAWLER ONLY (09) - CHASSIS/ATTACHMENTS

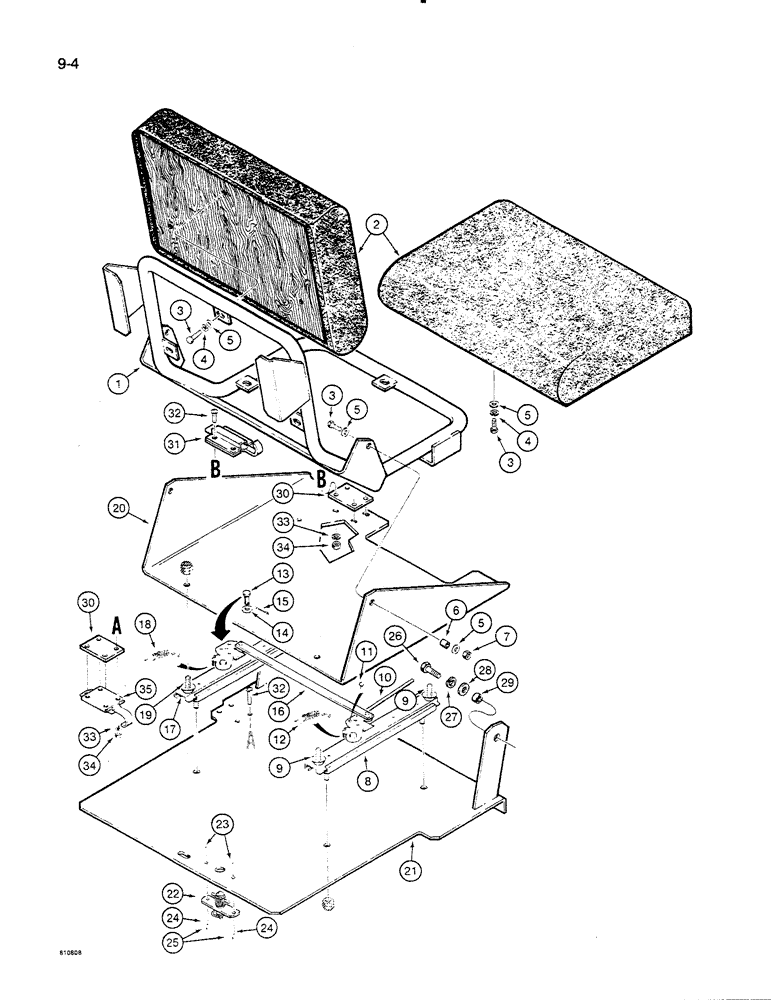

Схема запчастей Case 35C - (9-04) - BACKHOE SEAT, 850C CRAWLER ONLY (09) - CHASSIS/ATTACHMENTS

Артикул

Название

Примечание

Количество

1

R36830

FRAME

- seat, black, if used

1шт.

1

R48745

FRAME

- seat, brown, if used

1шт.

2

R36769

CUSHION

- seat and back, black, if used

2шт.

2

R48744

CUSHION ASSY.

CUSHION - seat and back, brown, if used

2шт.

3

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

8шт.

4

492-11038

LOCK WASHER,3/8"

6шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

10шт.

6

D33551

BUSHING

SPACER - seat mounting

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

R27894

RUNNER

SLIDE ASSEMBLY - seat, right-hand, Includes: Ref. 8 - 12

1шт.

8

NSS

NOT SOLD SEPARAT

SLIDE - seat

1шт.

9

NSS

NOT SOLD SEPARAT

SCREW - special

2шт.

10

R25577

LEVER

HANDLE - seat adjusting

1шт.

11

45-310

RIVET,But Hd, 3/16" x 5/8"

- round head, 3/16 x 5/8 inch

2шт.

12

L35503

SPRING

- seat adjusting

1шт.

13

141-1

CLEVIS PIN,3/16" x .580"

PIN - clevis, 3/16 inch

2шт.

14

195-513

WASHER,#10

- flat, 7/32 x 1/2 x 3/64 inch

2шт.

15

19-1100

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

16

R35977

BAR

- locking, seat adjustment

1шт.

R40039

SLIDE

ASSEMBLY - seat, left-hand, Includes: Ref. 17 - 19

1шт.

17

NSS

NOT SOLD SEPARAT

SLIDE - seat

1шт.

18

L35503

SPRING

- seat adjuster

1шт.

19

NSS

NOT SOLD SEPARAT

SCREW - special

2шт.

20

R36842

LARGE PLATE

PLATE - pivot, seat

1шт.

21

R45319

LARGE PLATE

PLATE - seat mounting

1шт.

22

L102515

LATCH

FASTENER - seat mounting plate, battery access

1шт.

23

182-125

SCREW,Sl Pan Hd, #10 - 24 x 1/2"

- machine, pan head slotted, No. 10 NC x 1/2 inch

2шт.

24

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

25

225-10110

NUT,#10-24

2шт.

26

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

27

492-11038

LOCK WASHER,3/8"

2шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

29

R36182

SPACER

- seat mounting plate

2шт.

30

R36841

LARGE PLATE

PLATE - seat latch

2шт.

31

S63588

LATCH ASSY.

LATCH - seat retaining

2шт.

32

169-100

SCREW,Sl Fil Hd, #10 - 24 x 3/4"

- machine, Fillister head, No. 10 NC x 3/4 inch

12шт.

33

92-3

LOCK WASHER,#10

WASHER, LOCK, #10

12шт.

34

225-10110

NUT,#10-24

12шт.

35

R35970

LATCH

BRACKET - pull, seat mounting plate, underneath

1шт.

Выбрано товаров: 39
