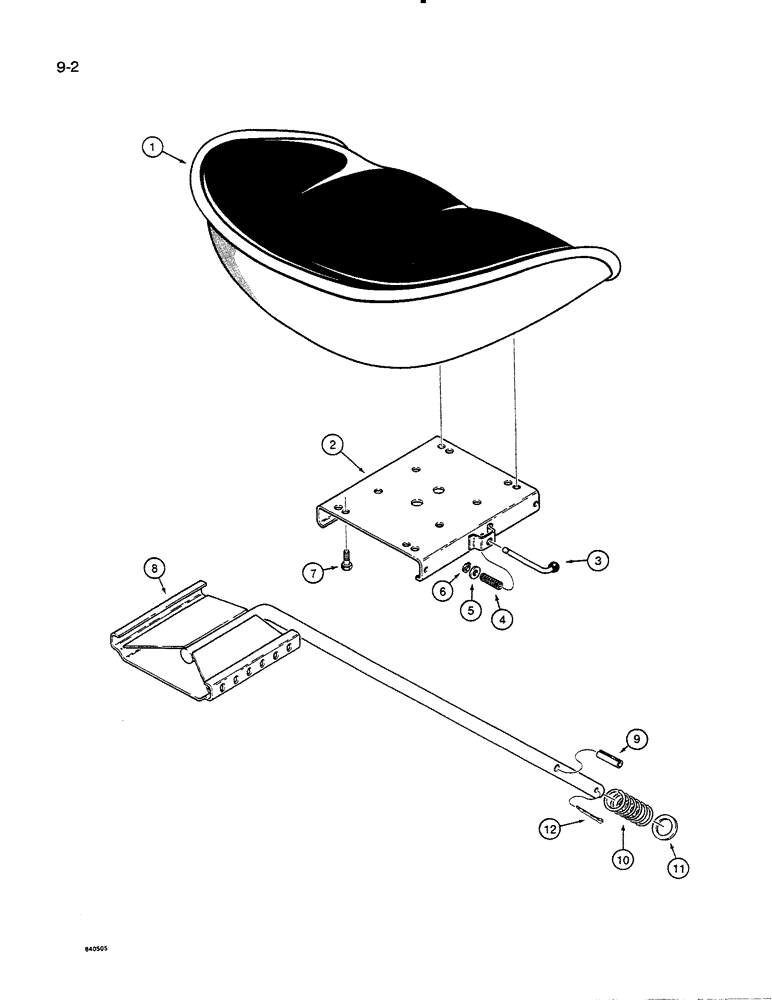

Запчасти Case 35C (9-02) - BACKHOE SEAT, W14 LOADER ONLY (09) - CHASSIS/ATTACHMENTS

R48272

SEAT

ASSEMBLY - backhoe, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

SEAT - padded

1шт.

2

S114835

SLIDE

- seat, upper, Includes: Ref. 3 - 6

1шт.

3

D40765

LEVER

- seat adjusting

1шт.

4

N8342

SPRING

- lever

1шт.

5

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

6

A27810

CIRCLIP,#X31, .243" Dia, E-Type

Ring, Retaining, , lever #X31, .243" Dia, E-Type

1шт.

7

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

4шт.

8

L108473

ROD

- seat support

1шт.

9

138-203

LOCK PIN,1/2" x 1 1/2", Slotted

Pin, 1/2" x 1 1/2", Slotted

1шт.

10

D25773

SPRING

- rod

1шт.

11

B18275

WASHER

- spring retaining

1шт.

12

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.
