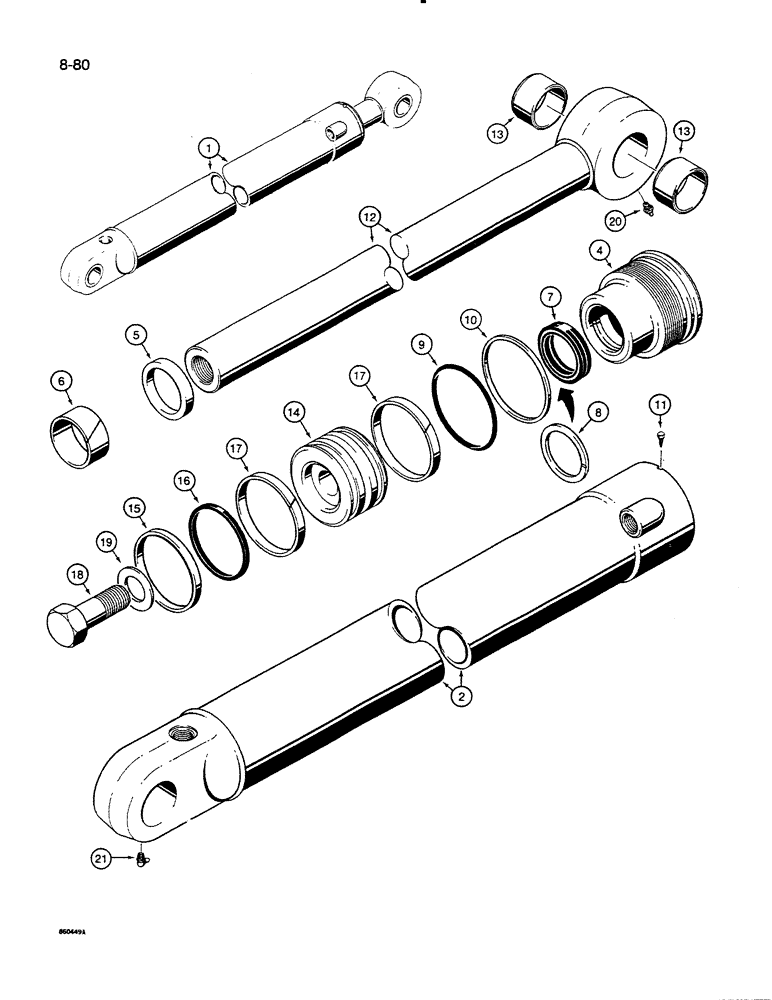

Запчасти Case 35C (8-80) - G109713 BUCKET CYLINDER, SPECIAL FEATURE (08) - HYDRAULICS

1

G109713

CYLINDER ASSY.

CYLINDER ASSEMBLY - bucket, 4 inch (102 mm) ID x 30-9/16 inch (776 mm) stroke, special feature cylinder, Includes: Ref. 2 - 21

1шт.

2

G109714

TUBE,3.995" ID x 40" DIA x 39.63" L

- cylinder

1шт.

3

RESERVED

1шт.

G109720

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 10

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

D95148

WIPER SEAL

WIPER - piston rod

1шт.

Part of Seal Kit, P/N G109781

1шт.

6

G102429

BUSHING,76.2mm ID x 79.27mm OD x 37.85mm L

- center

1шт.

Part of Seal Kit, P/N G109781

1шт.

7

G109054

SEAL,76.15mm ID x 88.95mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit, P/N G109781

1шт.

7

G100782

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

8

G109015

SEAL,75.69mm ID x 91.82mm OD x 4.9mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit, P/N G109781

1шт.

9

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G109781

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit, P/N G109781

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 "

1шт.

12

G109677

PISTON ROD

ROD ASSEMBLY - piston, 3 inch (76 mm) diameter, Includes: Ref. 13

1шт.

13

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- piston rod

2шт.

14

G100684

PISTON

- cylinder

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N G109781

1шт.

16

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup, piston seal

1шт.

Part of Seal Kit, P/N G109781

1шт.

17

G100448

RING,101.6mm OD, Ext

- wear, piston

2шт.

Part of Seal Kit, P/N G109781

1шт.

18

28-2048

BOLT,Hex, 1-1/4" - 12 x 3", Gr 8

1шт.

19

G105980

WASHER

- hardened

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

21

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

G109781

GASKET KIT

KIT - seal, Includes: Ref. 5, 6, 7, 8, 9, 10, 15, 16, and 17

1шт.
