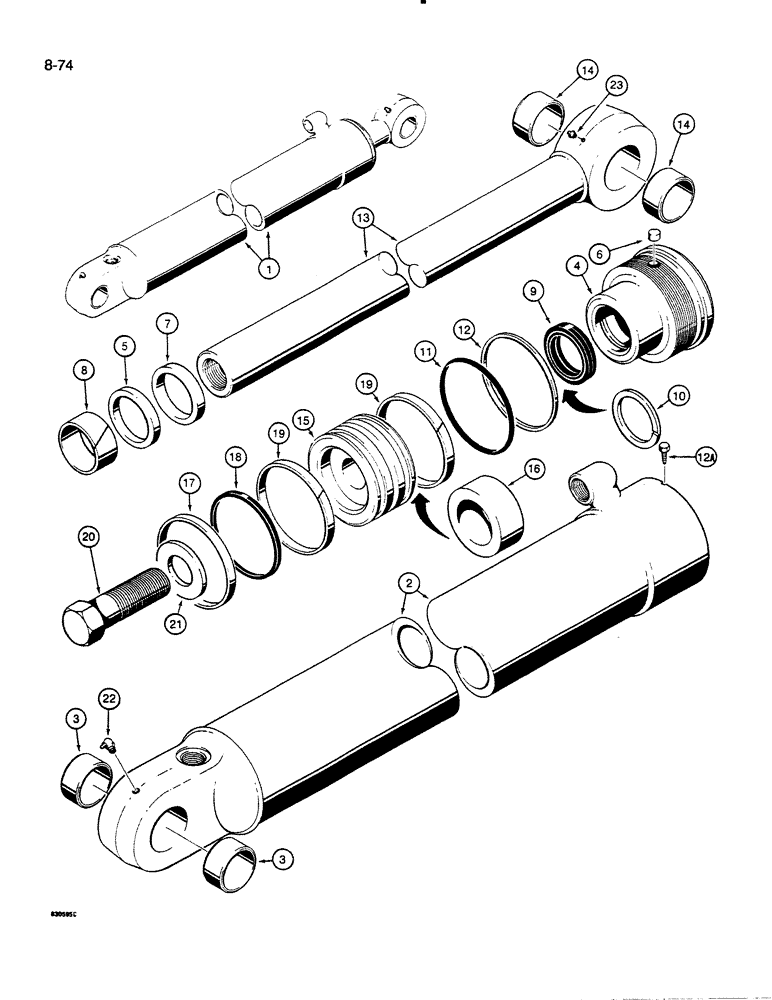

Запчасти Case 35C (8-74) - G106682 DIPPER CYLINDER (08) - HYDRAULICS

1

G106682

CYLINDER ASSY.

CYLINDER ASSEMBLY - dipper, 4 inch (102 mm) ID x 33-7/8 inch (860 mm) stroke, Includes: Ref. 2 - 23

1шт.

2

G107986

TUBE,101.37mm Bore Dia

ASSEMBLY - cylinder, Includes: Ref. 3

1шт.

3

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- tube

2шт.

G107524

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

6

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit, P/N G109423

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit, P/N G109423

1шт.

9

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit, P/N G109423

1шт.

9

G100778

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

10

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit, P/N G109423

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G109423

1шт.

12

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit, P/N G109423

1шт.

12a

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

13

G105087

STEM

ROD ASSEMBLY - piston, 2 inch (51mm) diameter, Includes: Ref. 14

1шт.

14

D33047

BUSHING,44.68mm ID x 53.98mm OD x 22.23mm L

- piston rod

2шт.

15

G105090

PISTON

- cylinder

1шт.

16

G106684

SPACER

- rod

1шт.

17

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N G109423

1шт.

18

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup, piston seal

1шт.

Part of Seal Kit, P/N G109423

1шт.

19

G100448

RING,101.6mm OD, Ext

- wear, piston

2шт.

Part of Seal Kit, P/N G109423

1шт.

20

G105958

BOLT

- special

1шт.

21

G105980

WASHER

- hardened

1шт.

22

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

23

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

G109423

GASKET KIT

KIT - seal, Includes: Ref. 7, 8, 9, 10, 11,1 2, 17, 18, and 19

1шт.
