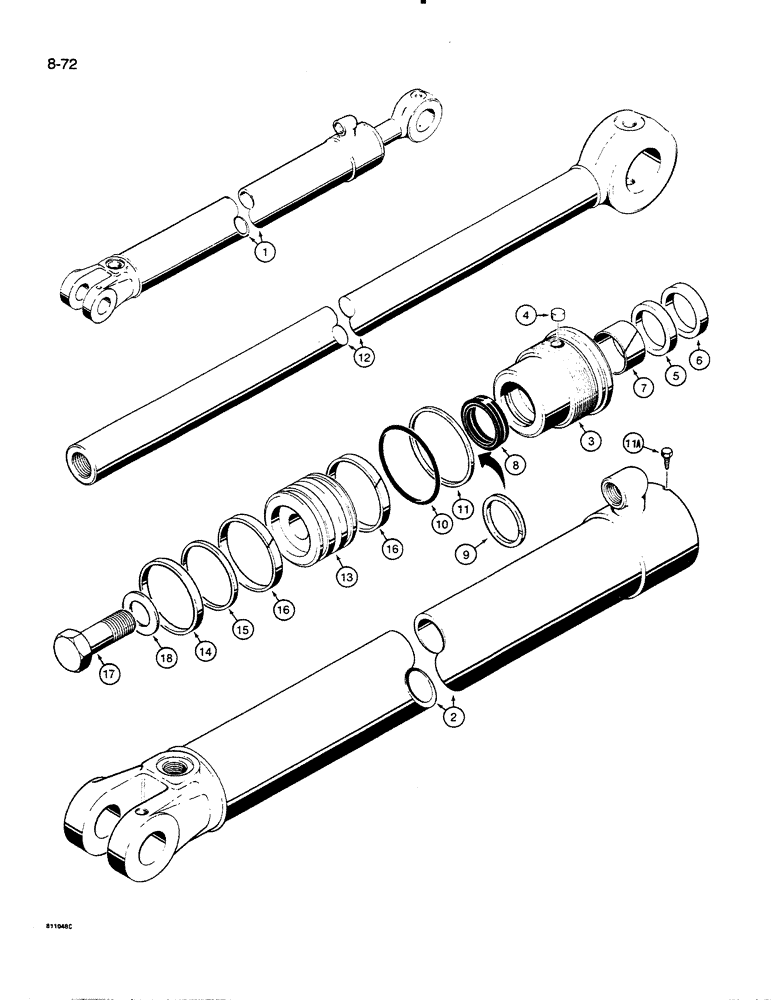

Запчасти Case 35C (8-72) - G106168 BOOM CYLINDER (08) - HYDRAULICS

1

G106168

CYLINDER,Double Acting, 44.45mm Rod, 1062.99mm Stroke

ASSEMBLY - boom, 3-1/4 inch (83 mm) ID x 42-27/32 inch (1063 mm) stroke, replaces G109339 cylinder used in production on some models, Includes: Ref. 2 - 18

2шт.

1

G106168R

REMAN-HYD CYLINDER

35C, 35C WL, Both BACKHOE, ASSEMBLY, boom

2шт.

1

G106168C

CORE-HYD CYLINDER

Return Number

2шт.

2

G106169

TUBE,3.25" DIA x 51.49" L

- cylinder

1шт.

G107671

GLAND

ASSEMBLY - cylinder

1шт.

3

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

4

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

6

D95143

WIPER SEAL,44.42mm ID x 57.17mm OD x 7.92mm Thk

WIPER - piston rod, outer

1шт.

Part of Seal Kit, P/N G109417

1шт.

7

G102425

BUSHING,44.45mm ID x 47.45mm OD x 25.1mm Thk

- center

1шт.

Part of Seal Kit, P/N G109417

1шт.

8

G107922

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit, P/N G109417

1шт.

8

G100777

SEAL,44.42mm ID x 57.28mm OD x 10.69mm Thk

- U-cup, piston rod, service option - severe heat or cold

1шт.

9

G109094

SEAL,44.07mm ID x 57.33mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit, P/N G109417

1шт.

10

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G109417

1шт.

11

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - backup, gland O-ring

1шт.

Part of Seal Kit, P/N G109417

1шт.

11a

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

12

G33885

ROD

- piston, 1-3/4 inch (44 mm) diameter

1шт.

13

G100642

PISTON

- cylinder

1шт.

14

G102287

SEAL,Locking, 79.07mm ID x 83.8mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N G109417

1шт.

15

S109444

RING,Square, 5.28mm Thk x 68.96mm ID

- backup, piston seal

1шт.

Part of Seal Kit, P/N G109417

1шт.

16

S109445

RING,82.55mm OD, Ext

- wear, piston

2шт.

Part of Seal Kit, P/N G109417

1шт.

17

28-1640

BOLT,Hex, 1" - 14 x 2-1/2", Gr 8

(National Superfine) Hex, 1"-14 x 2 1/2", G8, Full Thd

1шт.

18

G32303

WASHER,26.97mm ID x 47.63mm OD x 3.58mm Thk

- hardened

1шт.

G109417

GASKET KIT

KIT - seal, Includes: Ref. 6, 7, 8, 9, 10, 11, 14, 15, and 16

1шт.
