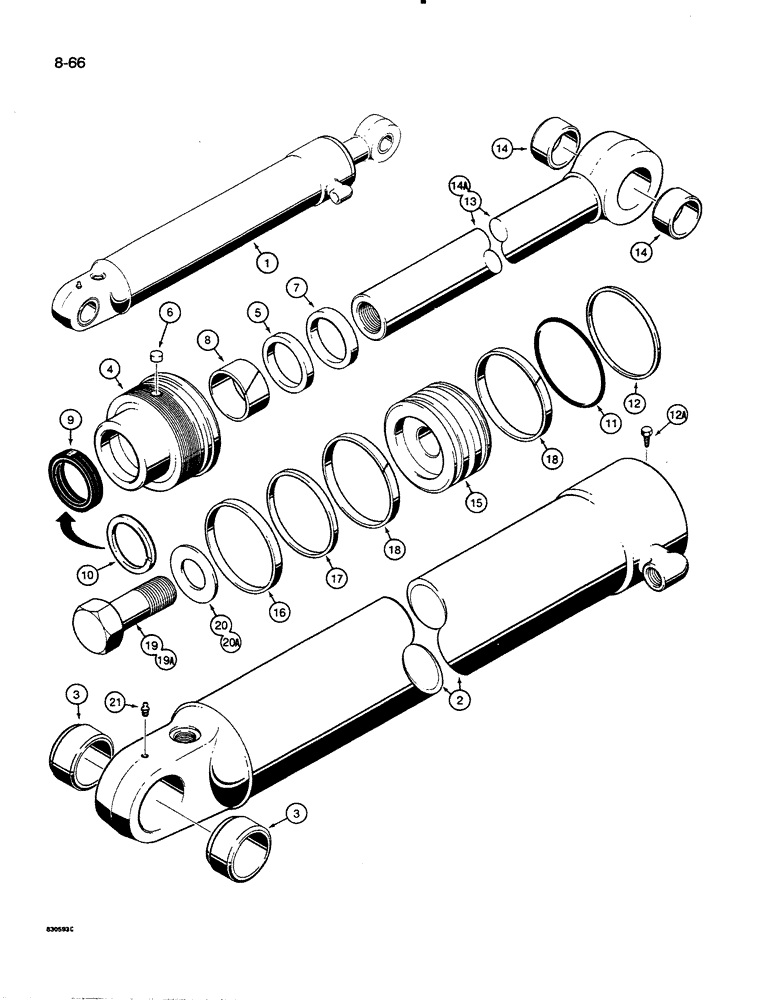

Запчасти Case 35C (8-66) - G109139 AND G109140 STABILIZER CYLINDERS (08) - HYDRAULICS

1

G109140

CYLINDER

ASSEMBLY - stabilizer, right-hand, 4 inch (102 mm) ID x 21-3/4 inch (553 mm) stroke, interchangeable with G103252 cylinder, Includes: Ref. 2 - 21

1шт.

1

G109139

CYLINDER

ASSEMBLY - stabilizer, left-hand, 4 inch (102 mm) ID x 21-3/4 inch (553 mm) stroke, interchangeable with G103253 cylinder, Includes: Ref. 2 - 21

1шт.

2

G109142

TUBE,101.473 mm ID x 781.8 mm L

ASSEMBLY - cylinder, right-hand, Includes: Ref. 3

1шт.

2

G109141

TUBE,101.473 mm ID x 781.8 mm L

ASSEMBLY - cylinder, left-hand, Includes: Ref. 3

1шт.

3

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- G109141 or G109142 tube

2шт.

G107524

GLAND

ASSEMBLY - cylinder, Includes: Ref. 4 - 12

1шт.

4

NSS

NOT SOLD SEPARAT

GLAND - cylinder

1шт.

5

NSS

NOT SOLD SEPARAT

RING - retaining, bushing

1шт.

6

G102569

PLUG

- nylon, thread locking, gland, if used

1шт.

7

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod, outer

1шт.

Part of Seal Kit, P/N G109423

1шт.

8

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit, P/N G109423

1шт.

9

G107923

SEAL,50.77mm ID x 63.63mm OD x 10.69mm Thk

- U-cup, with O-ring, piston rod, wide

1шт.

Part of Seal Kit, P/N G109423

1шт.

9

G100778

SEAL

- U-cup, piston rod, service option - severe heat or cold

1шт.

10

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- buffer, grooved, piston rod, narrow

1шт.

Part of Seal Kit, P/N G109423

1шт.

11

A27507

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

- gland

1шт.

Part of Seal Kit, P/N G109423

1шт.

12

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit, P/N G109423

1шт.

12a

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", If used

1шт.

13

G103264

ROD

ASSEMBLY - piston, 2 inch (51 mm) diameter, with bushing, no longer used, order G107916 rod, Includes: Ref. 14

1шт.

14

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod eye

2шт.

14a

G107916

ROD

ASSEMBLY - piston, 2 inch (51 mm) diameter, without bushings

1шт.

15

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

- cylinder

1шт.

16

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit, P/N G109423

1шт.

17

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup, piston seal

1шт.

Part of Seal Kit, P/N G109423

1шт.

18

G100448

RING,101.6mm OD, Ext

- wear, piston

2шт.

Part of Seal Kit, P/N G109423

1шт.

19

28-2040

BOLT,Hex, 1-1/4" - 12 x 2-1/2", Gr 8

- Hex, 1-1/4"-12 NF x 2-1/2", G8, used with G103264 rod, no longer used, order 28-2044 bolt and G105980 washer

1шт.

19a

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8, used with G107916 rod

1шт.

20

G32351

WASHER

- 1-11/32 ID x 1/8 inch thick, hardened, used with G103264 rod, no longer used, order G105980 washer and 28-2044 bolt

1шт.

20a

G105980

WASHER

- 1-7/16 inch ID x 3/16 inch thick, hardened, used with G107916 rod

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

1шт.

G109423

GASKET KIT

KIT - seal, Includes: Ref. 7, 8, 9, 10, 11,12, 16, 17, and 18

1шт.
