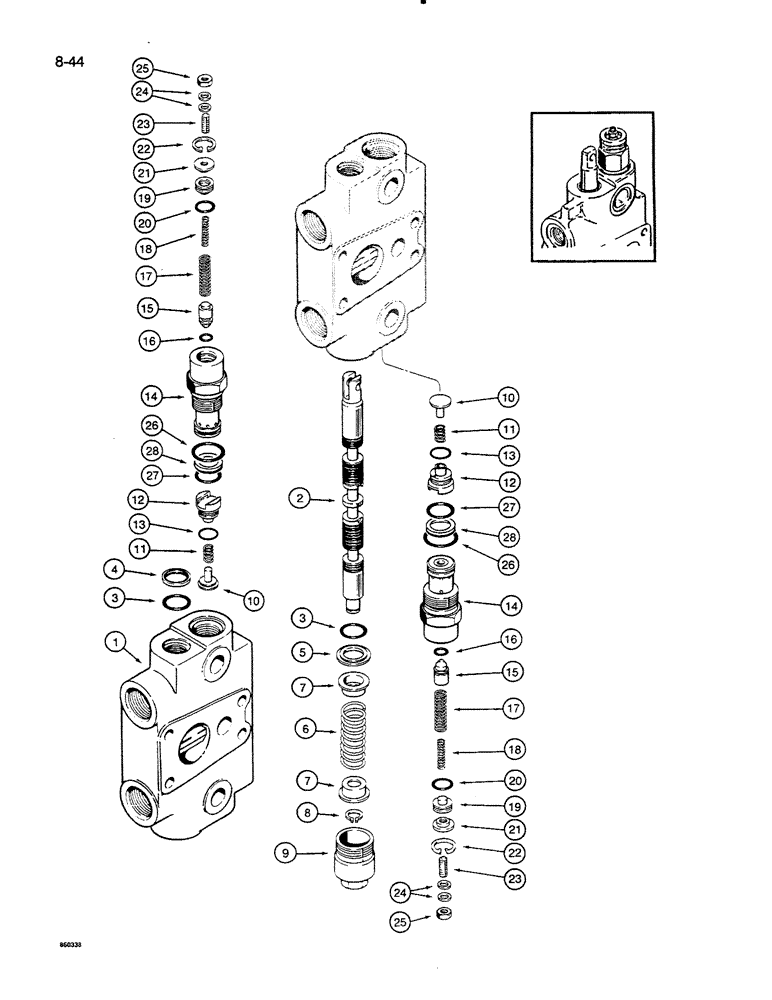

Запчасти Case 35C (8-44) - BACKHOE CONTROL VALVE, DIPPER AND BUCKET SECTION (08) - HYDRAULICS

G103400

SEGMENT

SECTION ASSEMBLY - dipper and bucket, no longer available, order G109512 section on Figure 8-46, Includes: Ref. 1 - 28

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

A27365

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

- body

2шт.

4

A32309

SEAL,18.8mm ID x 25.5mm OD x 3.1mm Thk

- spool

1шт.

5

G102711

RETAINER COLLAR,19.3 mm ID x 32.97 mm OD

- O-ring

1шт.

6

G34463

SPRING

- centering, spool

1шт.

7

G33075

RETAINER,12.2mm ID, 27.9mm OD

- centering spring

2шт.

8

G33077

SNAP RING,#47, Ext

Ring, Snap, , spool end #47, Ext

1шт.

9

P0033080G

SCREW

- centering spring

1шт.

10

G33081

VALVE POPPET

POPPET - load check valve

2шт.

11

G33573

SPRING

- load check valve

2шт.

12

G33084

PLUG

- load check valve

2шт.

13

G33686

O-RING,0.07" Thk x 0.61" ID

- plug

2шт.

G34672

VALVE

ASSEMBLY - circuit relief, with round retainer and snap ring at outer end of circuit relief cap, used in production, no longer available, replaced by G109445 valve in production, see Figure 8-46, order G109449 kit for service, Includes: Ref. 14 - 28

2шт.

The pressure setting of the repair circuit relief valve is not present for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.

14

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

15

NSS

NOT SOLD SEPARAT

POPPET - circuit relief valve

1шт.

16

A28090

O-RING,0.301" ID x 0.441" OD x 0.07"

-011, 70 Duro, .301" ID x .070" Thk - Poppet

1шт.

17

G105693

VALVE SPRING

SPRING - circuit relief valve, outer

1шт.

18

G34659

SPRING

- circuit relief valve, inner

1шт.

19

G33091

PISTON

- circuit relief valve

1шт.

20

G102845

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

- piston

1шт.

21

G33092

RETAINER

- circiut relief valve

1шт.

22

G46150

SNAP RING,0.75", Int, #75

Ring, Snap, , circuit relief valve 0.75", Int, #75

1шт.

23

G102782

SET SCREW,1/4" - 20 x 1"

- set, hex socket, 1/4" - 20 NC x 1"

1шт.

24

G102781

WASHER

- special, if used

2шт.

25

425-144

JAM NUT,Jam, 1/4"-20, G5

- hex, jam, 1/4 inch NC

1шт.

26

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

27

G107675

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

- small

1шт.

28

G35540

BACK-UP RING,19.43mm ID x 22.23mm OD x 1.32mm Thk

- backup, O-ring, if used

1шт.

G109449

KIT

- service for G34672, includes G109447 relief valve assembly (Ref. 14 - 28) & instruction sheet

1шт.

The pressure setting of the repair circuit relief valve is not present for this application. Adjust the setting according to the instructions sent with the repair valve.

1шт.
