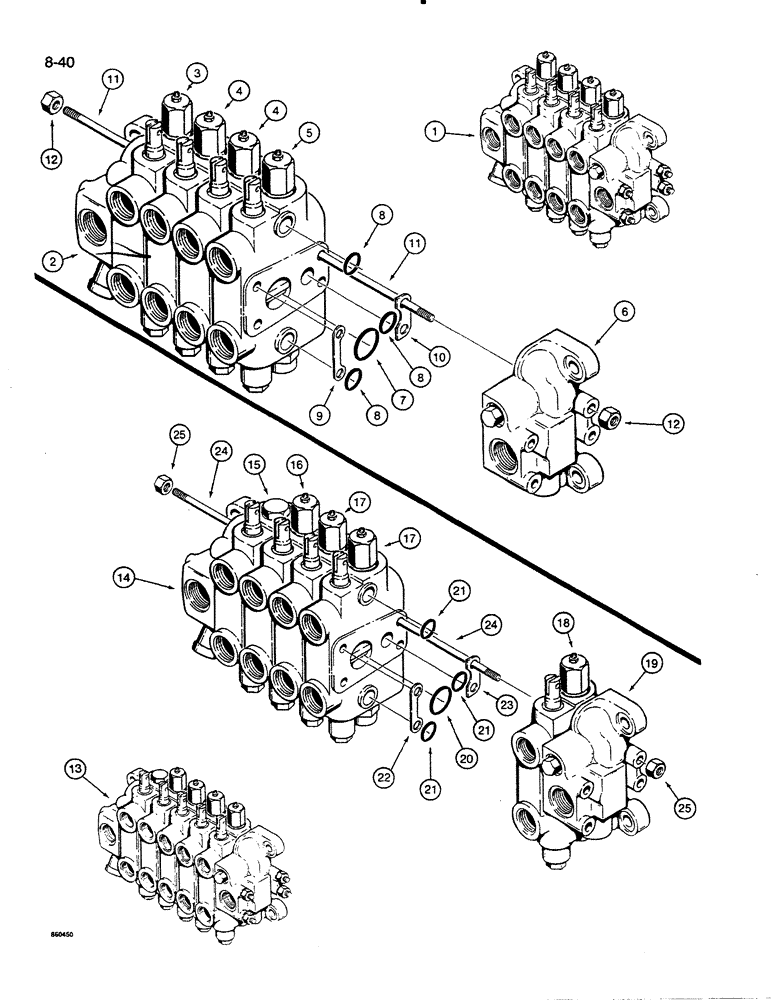

Запчасти Case 35C (8-40) - BACKHOE CONTROL VALVE (08) - HYDRAULICS

1

G109536

VALVE, CONTROL

VALVE ASSEMBLY - control, without extendable dipper, replaces G104993 control valve, Includes: Ref. 2 - 12

1шт.

2

G33108

MANIFOLD

SECTION - outlet, parts list Figure 8-42

1шт.

3

REF

INSTRUCTION

SECTION - boom, parts list Figures 8-54 and 8-60

1шт.

4

REF

INSTRUCTION

SECTION - dipper and bucket, parts list Figures 8-44 and 8-46

2шт.

5

REF

INSTRUCTION

SECTION - swing, parts list Figures 8-50 and 8-52

1шт.

6

G33102

MANIFOLD

SECTION - inlet, parts list Figure 8-42

1шт.

7

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports, large

5шт.

8

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- section ports, small

15шт.

9

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

5шт.

10

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

5шт.

11

G34942

TIE-ROD

STUD - tie, 3/8 inch - 16 NC x 13-3/4 inch

4шт.

12

425-106

NUT,3/8"-16, Cl 5

8шт.

13

G109537

VALVE, CONTROL

VALVE ASSEMBLY - control, with extendable dipper, replaces G104994 control valve, Includes: Ref. 14 - 25

1шт.

14

G33108

MANIFOLD

SECTION - outlet, parts list Figure 8-42

1шт.

15

G103404

SEGMENT

SECTION - extendable dipper, parts list Figure 8-48

1шт.

16

REF

INSTRUCTION

SECTION - boom, parts list Figures 8-54 and 8-60

1шт.

17

REF

INSTRUCTION

SECTION - dipper and bucket, parts list Figures 8-44 and 8-46

2шт.

18

REF

INSTRUCTION

SECTION - swing, parts list Figures 8-50 and 8-52

1шт.

19

G33102

MANIFOLD

SECTION - inlet, parts list Figure 8-42

1шт.

20

G34001

O-RING,0.103" Thk x 1.424" ID, -127, Cl 6, 90 Duro

- section ports, large

6шт.

21

G34000

O-RING,0.103" Thk x 0.924" ID, -119, Cl 6, 90 Duro

- section ports, small

18шт.

22

G107251

SHIM,10.31mm ID x 20.62mm OD x 0.06mm Thk

Section, Port side of control valve 0.051mm Thk

6шт.

23

G33965

SHIM,22.86mm OD x 0.06mm Thk

Section, Non-port side of control valve 0.051mm Thk

6шт.

24

G34675

TIE-ROD

STUD - tie, 3/8 inch - 16 NC x 15-3/4 inch

4шт.

25

425-106

NUT,3/8"-16, Cl 5

8шт.
