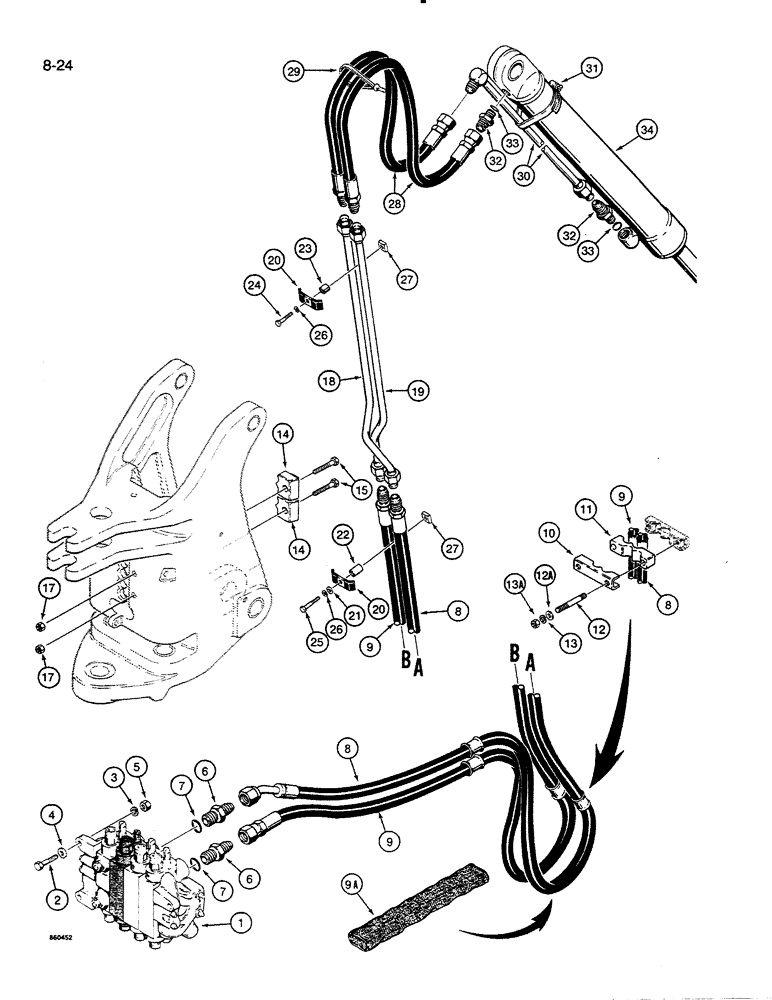

Запчасти Case 35C (8-24) - BUCKET CYL.HYD.CIRCUIT, MODELS W/O EXTENDABLE DIPPER MODELS W/TWO BOOM MOUNTING PINS AT SWING TOWER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, backhoe, parts list Figure 8-40, for mounting plate see Figure 8-2

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

95-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 1/8 inch

3шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 7

2шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

D133951

HOSE ASSY.,15.88mm ID x 2092mm L

HOSE - 81-7/8 inch (2079 mm) long, upper port, second position from top in Ref. 14 swing tower clamp

1шт.

9

D133953

HOSE ASSY.,15.88mm ID x 2068mm L

HOSE - 80-7/16 inch (2043 mm) long, lower port, bottom position in Ref. 14 swing tower clamp

1шт.

9a

D133294

HOSE PROTECTION

SLEEVE - hose

1шт.

10

D124502

CLAMP

- hose, attaches to clamp welded in boom

1шт.

11

D127521

SPACER

- hose clamp

1шт.

12

D134182

STUD

- 1/2 NC x 3-1/2 inch

2шт.

12a

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 5/64") 1/2", SAE

2шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

13a

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

14

D127510

CLAMP

- hose, in swing tower

2шт.

15

113-319

BOLT,Hex, 7/16" - 14 x 2-1/2", Gr 5

2шт.

16

RESERVED

1шт.

17

131-667

NUT,7/16"-14, GB

NUT - hex, self-locking, 7/16 inch NC, replaces lock washer and hex nut on some models

2шт.

18

D133212

TUBE

- upper port to rod end of bucket cylinder

1шт.

19

D133214

TUBE

- lower port to closed end of bucket cylinder

1шт.

20

D40236

CLAMP

- metal

2шт.

21

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

22

D34089

SPACER

- hose clamp

1шт.

23

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- tube clamp

1шт.

24

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

25

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

1шт.

26

492-11038

LOCK WASHER,3/8"

2шт.

27

224-2206

SQUARE NUT,Sq, 3/8"-16

- square, 3/8 inch NC

2шт.

28

D50372

HOSE

- 34 inch (864 mm) long, to bucket cylinder

2шт.

29

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

30

D58609

TUBE

- to rod end of bucket cylinder

1шт.

31

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adj, 3-9/16 - 4-1/2 inch dia, tube

1шт.

32

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 fl x 7/8-14 inch O-ring boss, Includes: Ref. 33

2шт.

33

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

34

REF

INSTRUCTION

CYLINDER ASSEMBLY - bucket, parts list Fig. 8-76

1шт.
