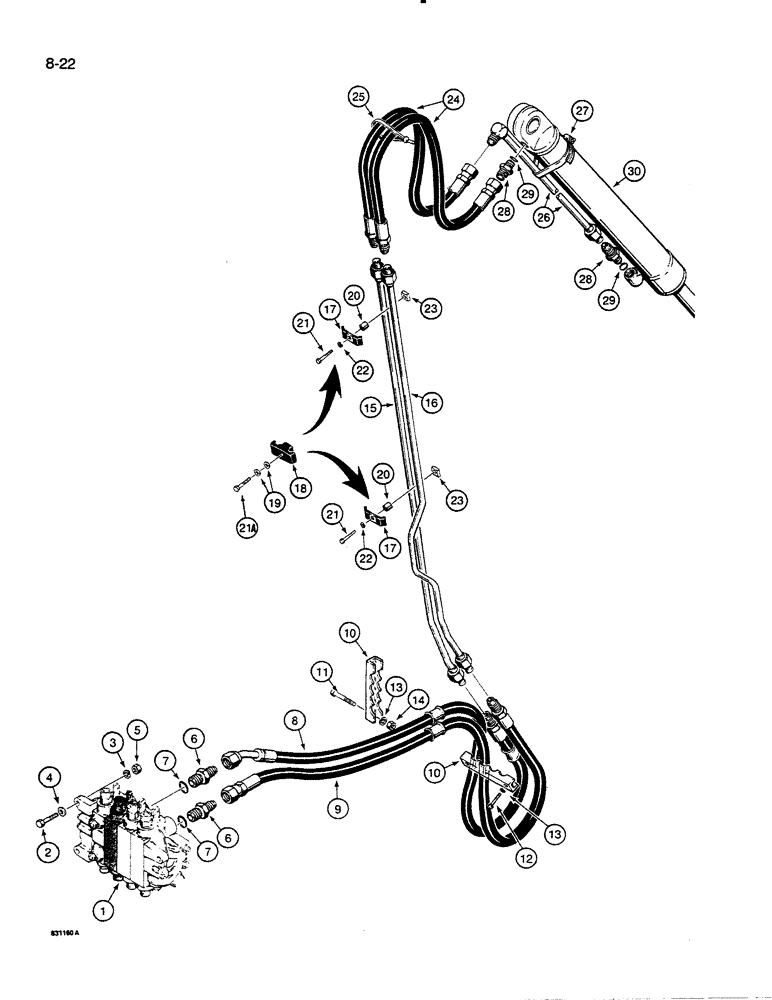

Запчасти Case 35C (8-22) - BUCKET CYL.HYDRO. CIRCUIT, MODELS W/O EXTENDABLE DIPPER MODEL W/ONE BOOM MOUNTING PIN AT SWING TOWER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - control, backhoe, parts list Figure 8-40, for mounting plate see Figure 8-2

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

95-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 1/8 inch

3шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 7

2шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

D88973

HOSE,15.88mm ID x 1270mm L, SAE 100R2

- 50 inch (1270 mm) long, upper port

1шт.

9

D88974

HOSE,15.88mm ID x 1190mm L, SAE 100R2

- 46-7/8 inch (1190 mm) long, lower port

1шт.

10

D92721

CLAMP

- hose

2шт.

11

413-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 5

- hex, 1/2 NC x 3-1/2 inch

2шт.

12

61-828

HEX SOC SCREW,1/2"-13 x 1 3/4"

BOLT - hex socket head, 1/2 NC x 1-3/4 inch

2шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

15

D91204

HYD TUBE,19.05 mm OD x 1835, 90 mm L

TUBE - upper port to rod end of bucket cylinder

1шт.

16

D91206

HYD TUBE,19.05 mm OD x 107, 1865 mm L

TUBE - lower port to closed end of bucket cylinder

1шт.

17

D40236

CLAMP

- metal, tubes to boom, if used

2шт.

18

D124301

CLAMP,3/4" ID

- plastic, tubes to boom, if used

2шт.

19

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Used with plastic tube clamp, if used 3/8"

4шт.

20

D76195

SPACER,10.31mm ID x 15.88mm OD x 17.78mm L

- used with metal tube clamp, if used

2шт.

21

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch, if used

2шт.

21a

413-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

If used Hex, 3/8"-16 x 1 3/4", G5

2шт.

22

492-11038

LOCK WASHER,3/8"

2шт.

23

224-2206

SQUARE NUT,Sq, 3/8"-16

- square, 3/8 inch NC

2шт.

24

D50372

HOSE

- 34 inch (864 mm) long, to bucket cylinder

2шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

26

D58609

TUBE

- to rod end of bucket cylinder

1шт.

27

214-267

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP - adj, 3-9/16 - 4-1/2 inch dia, tube

1шт.

28

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 fl x 7/8-14 inch O-ring boss, Includes: Ref. 29

2шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

REF

INSTRUCTION

CYLINDER ASSEMBLY - bucket, parts list page 8-77

1шт.
