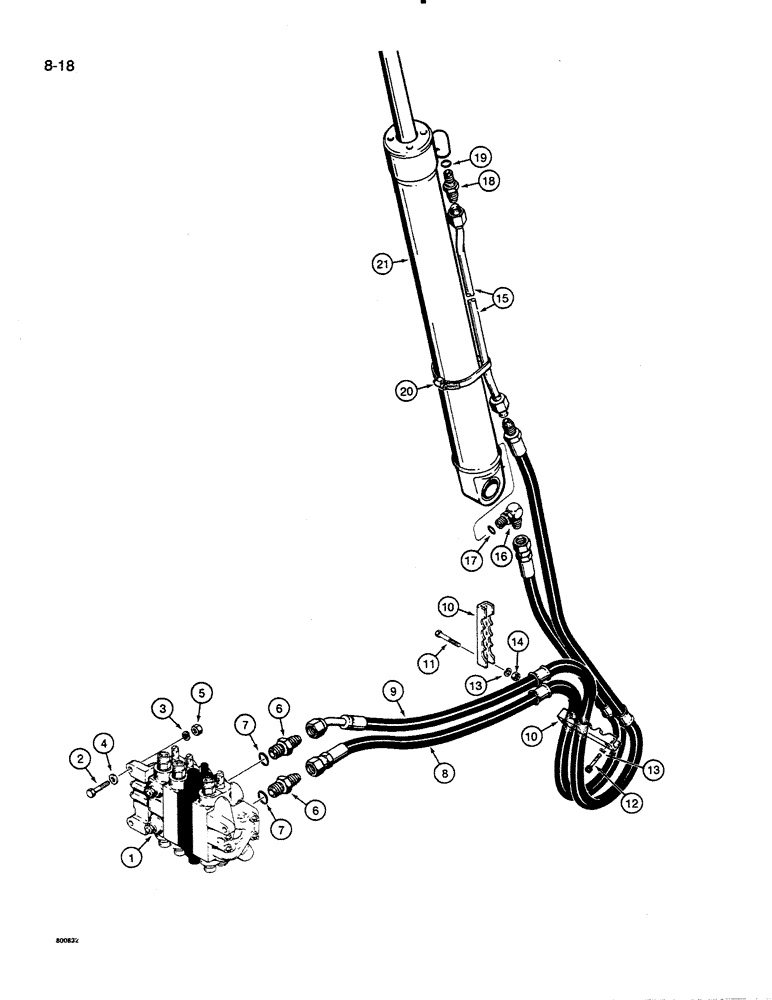

Запчасти Case 35C (8-18) - DIPPER CYLINDER HYDRAULIC CIRCUIT, MODELS WITH ONE BOOM MOUNTING PIN AT SWING TOWER (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE - control, backhoe, parts list Figure 8-40, for valve mounting plate see Figure 8-2

1шт.

2

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

3шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

4

95-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 1/8 inch

3шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 inch flare x O-ring boss, Incl. Ref. 7

2шт.

7

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

8

D88976

HOSE,15.88mm ID x 1820mm L, SAE 100R2

- 71-5/8 inch (1820 mm) long, lower port, to closed end of dipper cylinder

1шт.

9

D88975

HOSE,15.88mm ID x 2000mm L, SAE 100R2

- 78-3/4 inch (2000 mm) long, upper port, to rod end of dipper cylinder

1шт.

10

D92721

CLAMP

- hoses

2шт.

15

D50379

TUBE

- to rod end of cylinder

1шт.

16

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 1-1/16-12 flare x 7/8-14 inch adj O-ring, Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

18

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 fl x 7/8-14 inch O-ring boss, Includes: Ref. 19

1шт.

19

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

20

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

CLAMP - adj, 4-1/16 - 5 inch dia, cylinder tube

1шт.

21

G106682

CYLINDER ASSY.

CYLINDER ASSEMBLY - dipper, parts list Figure 8-74

1шт.
