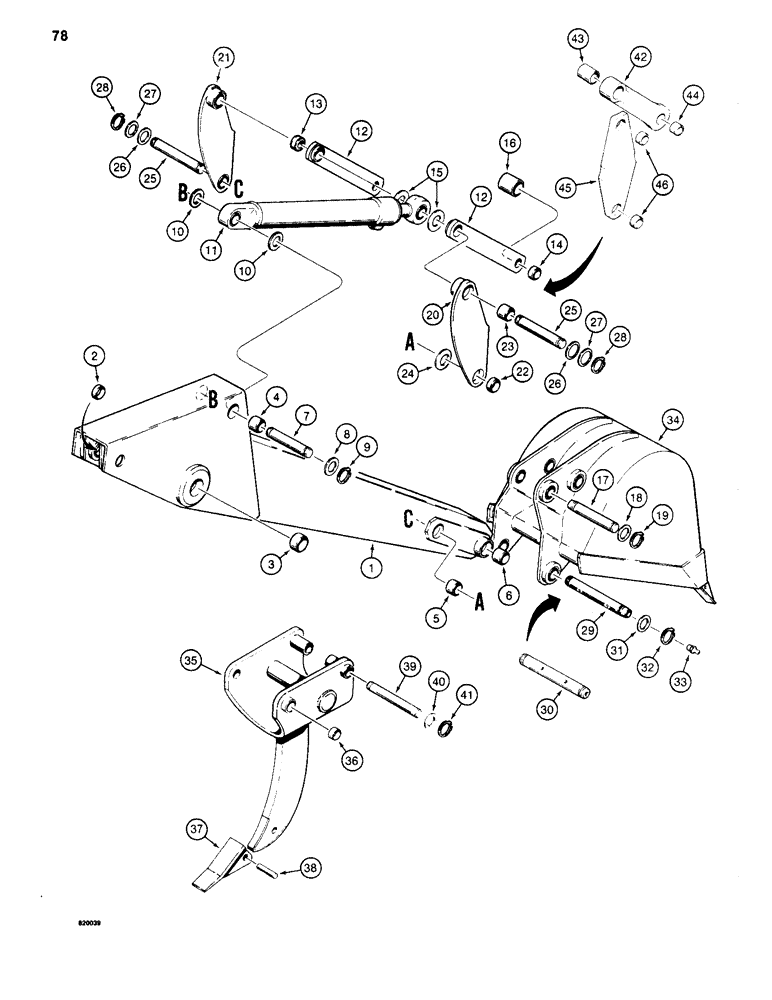

Запчасти Case 35A (78) - DIPPER AND BUCKET

D77895

BOOM

DIPPER ASSEMBLY - backhoe, Includes: Ref.#1 - 6

1шт.

1

NSS

NOT SOLD SEPARAT

DIPPER - backhoe

1шт.

2

D43940

BUSHING,44.68mm ID x 57.15mm OD x 25.4mm L

- dipper, at dipper cylinder

2шт.

3

D31142

BUSHING,51.02mm ID x 63.5mm OD x 38.1mm L

- dipper, at boom

2шт.

4

D34340

BUSHING,44.68mm ID x 53.98mm OD x 25.4mm L

- dipper, at bucket cylinder

1шт.

5

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

- dipper, at bucket links

2шт.

6

D55626

BUSHING,44.68mm ID x 57.15mm OD x 41.91mm L

- dipper, at bucket

2шт.

7

D52522

PIN,44.45mm OD x 211.84mm L

- bucket, Serial Range: cylinder-dipper

1шт.

8

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

WASHER - flat, 1/16" (1.6 mm) thick

1шт.

9

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

10

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1/8" (2.7 mm) thick

2шт.

11

G101176

CYLINDER

- backhoe bucket, see Fig.52

1шт.

12

D61244

LINK

- bucket cylinder to bucket, welded assembly, used with Ref.# 13 & 14

2шт.

Links must be used together on the same backhoe. For backhoes using cast bucket links, see items 42-46 on Figure 80

1шт.

13

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- link, at bucket cylinder, part of Ref.# 12

1шт.

14

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- link, at bucket, part of Ref.#12

1шт.

15

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1/8" (2.7 mm) thick

2шт.

16

D93227

BUSHING

SPACER - bucket, Serial Range: links-bucket

1шт.

17

D37614

PIN,38mm Od x 246mm L

- bucket, Serial Range: links-bucket

1шт.

18

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- special

2шт.

19

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

20

D61087

LINK

- bucket cylinder to dipper, right-hand, welded assembly used with Ref.#12

1шт.

Links must be used together on the same backhoe. For backhoes using cast bucket links, see items 42-46 on Figure 80

1шт.

21

D61088

LINK

- bucket cylinder to dipper, left-hand, welded assembly, used with Ref.#12, Includes: Ref.#22 & 23

1шт.

Links must be used together on the same backhoe. For backhoes using cast bucket links, see items 42-46 on Figure 80

1шт.

22

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- link, at dipper

1шт.

23

D42788

BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L

- link, at bucket cylinder

1шт.

24

D77725

WASHER

- special, 3/8" (9.5 mm) thick

2шт.

25

D53818

PIN,44.45mm OD x 278.89mm L

- bucket, Serial Range: linkage-dipper

2шт.

26

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1/8" (2.7 mm) thick

1шт.

27

51200255

SEALING WASHER,45.77mm ID x 62.18mm OD x 1.59mm Thk

WASHER - flat, 1/16" (1.6 mm) thick

1шт.

28

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

4шт.

29

D64799

PIN,44.45mm OD x 370.84mm L

- dipper to bucket, all buckets except 12" (305 mm) buckets

1шт.

30

D55584

PIN,44.45mm OD x 327.15mm L

- dipper to bucket, 12" (305 mm) buckets only

1шт.

31

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

- flat, 1/8" (2.67 mm) thick

1шт.

32

D25280

SNAP RING,#175, Ext

Ring, Snap, , pin #175, Ext

2шт.

33

219-1

LUBE NIPPLE,1/8" - 27 NPTF

GREASE FITTING - straight, 1/8" NPT

2шт.

34

REF

INSTRUCTION

BUCKET - backhoe, see Fig. 86 - 90 for options

1шт.

35

D54136

SUPPORT ASSY.

BODY - frost point, Includes: Ref.#36 - 38

1шт.

36

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

- frost point pivot

2шт.

37

D83306

POINT

- tooth

1шт.

38

D43417

PIN

- tooth point

1шт.

39

D54218

PIN,38.1mm OD x 345.95mm L

- link to frost point

1шт.

40

195-63

WASHER,1 5/8" x 3 1/4" x .180"

- flat, 1-9/16" ID

2шт.

41

D25279

SNAP RING,M35, Int

- pin retaining

2шт.

42

D120755

LINK

- bucket cylinder to bucket, used with Ref.#45, cast type, Includes: Ref.#43 & 44

2шт.

Links must be used together on the same backhoe. For backhoes using welded bucket links, see items 12, 20 and 21 on Figure 78.

1шт.

43

D121845

BUSHING,44.68mm ID x 57.15mm OD x 70mm L

- at cylinder

1шт.

44

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

- at bucket

1шт.

45

D89620

LINK

- bucket cylinder to dipper, used with Ref.#46

2шт.

Links must be used together on the same backhoe. For backhoes using welded bucket links, see items 12, 20 and 21 on Figure 78.

1шт.

46

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

- link

2шт.
