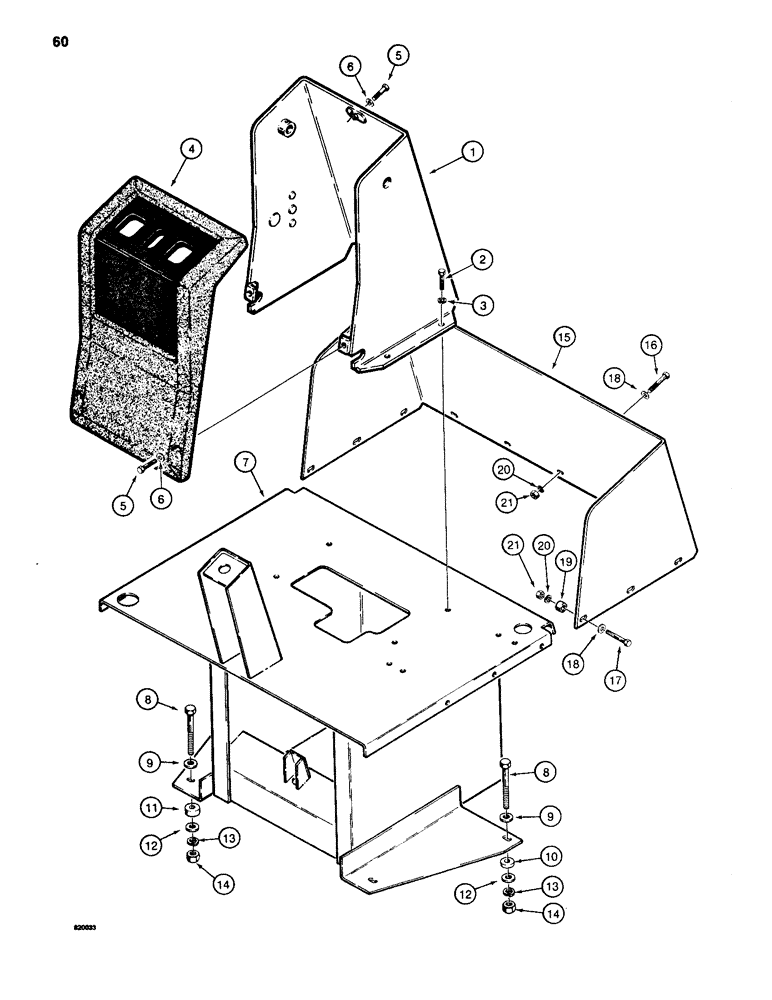

Запчасти Case 35A (60) - CONTROL TOWER, W14 ONLY

1

D84083

SPARE PART

CONTROL TOWER

1шт.

2

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

3

92-5

LOCK WASHER,5/16"

4шт.

4

D92397

COVER ASSY

COVER - console

1шт.

5

113-66

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

6

195-133

WASHER,5/16" x 3/4" x .065"

- flat, 1/4" black

3шт.

7

L108496

LATHE

BASE - foot shield

1шт.

8

13-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

- hex head, 1/2" - 13 NC x 2-1/2"

2шт.

9

95-8

WASHER,1/2"

flat 1/2"

4шт.

10

L108386

SPACER

- floorboard, front

1шт.

11

L108387

SPACER

- floorboard, rear

1шт.

12

195-2054

WASHER,17/32" x 2" x .238"

- flat, 1/2"

4шт.

13

92-8

LOCK WASHER,1/2"

4шт.

14

25-108

NUT,1/2"-13, G5

- hex, 1/2" - 13 NC

4шт.

15

L108436

GUARD - swing pedal

1шт.

16

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

5шт.

17

13-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex head, 5/16"- 18 NC x 1-1/2"

6шт.

18

95-5

WASHER,3/8" x 7/8" x .083"

- 5/16"

11шт.

19

L74703

SPACER

- used on shield side bolts only

6шт.

20

92-5

LOCK WASHER,5/16"

11шт.

21

9635082

NUT,5/16" - 18, Gr 5

- hex, 5/16" - 18 NC

11шт.
