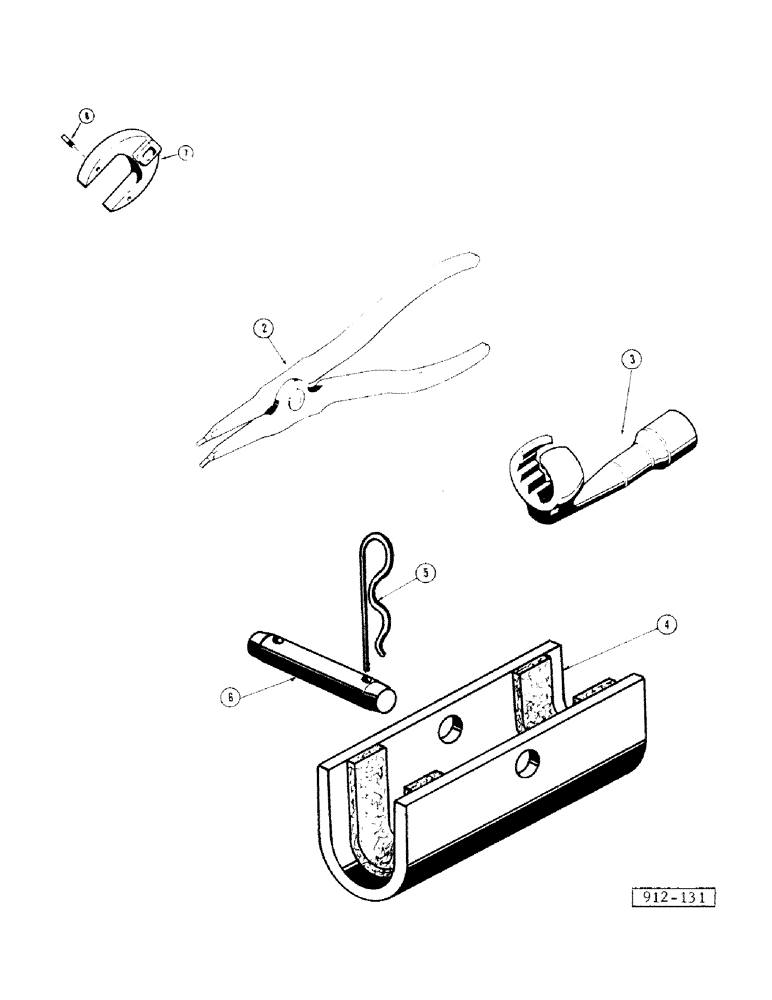

Запчасти Case 35 (344) - TOOLING

2

D32049

TOOL

Pliers-snap ring

1шт.

3

D38971

TOOL

Wrench - crowfoot for 1" nut

1шт.

D27216

TOOL

Wrench - crowfoot for 1-1/16" nut

1шт.

D48865

TOOL

Wrench - crowfoot for 1-1/8" nut

1шт.

D28774

TOOL ASSY.

Wrench - crowfoot for 1-1/4" nut

1шт.

4

E17401

HOOD

Cylinder safety stop

2шт.

5

136-159

HAIR PIN COTTER,Int, 3/16 x .080"

PIN, SPLIT (COTTER), Int, 3/16 x .080", Klik

8шт.

6

E17403

AXLE PIN

Pin

4шт.

D44110

OPEN END WRENCH

Wrench set, spanner (for removing and installing packing glands in threaded gland type hydraulic cylinders)

1шт.

7

D44111

OPEN END WRENCH

Wrench-spanner 2-1/2" ID cylinders with 1-1/4" or 1-1/2" dia.piston rods

1шт.

D44112

OPEN END WRENCH

Wrench-spanner 3" ID cylinders with 1-1/4" or 1-1/2" dia piston rod

1шт.

D44113

OPEN END WRENCH

Wrench-spanner 3" ID cylinders with 1-1/4" or 1-3/4" dia piston rod

1шт.

D44114

OPEN END WRENCH

Wrench-spanner 3-1/2"ID cylinders with 1-1/4" or 1-3/4" or 2" dia piston rods

1шт.

D44115

OPEN END WRENCH

Wrench-spanner 4" ID cylinders with 1-1/4" or 2" or 2-1/4" dia piston rod

1шт.

D44116

OPEN END WRENCH

Wrench-spanner 4-1/2" or 5 ID cylinders with 1-1/4" or 2-1/4" dia piston rod

1шт.

8

D30107

PIN

-spanner wrench (used with all wrenches except D44116)

3шт.

D44118

SPARE PART

Pin-spanner wrench D44116 wrench only

3шт.
