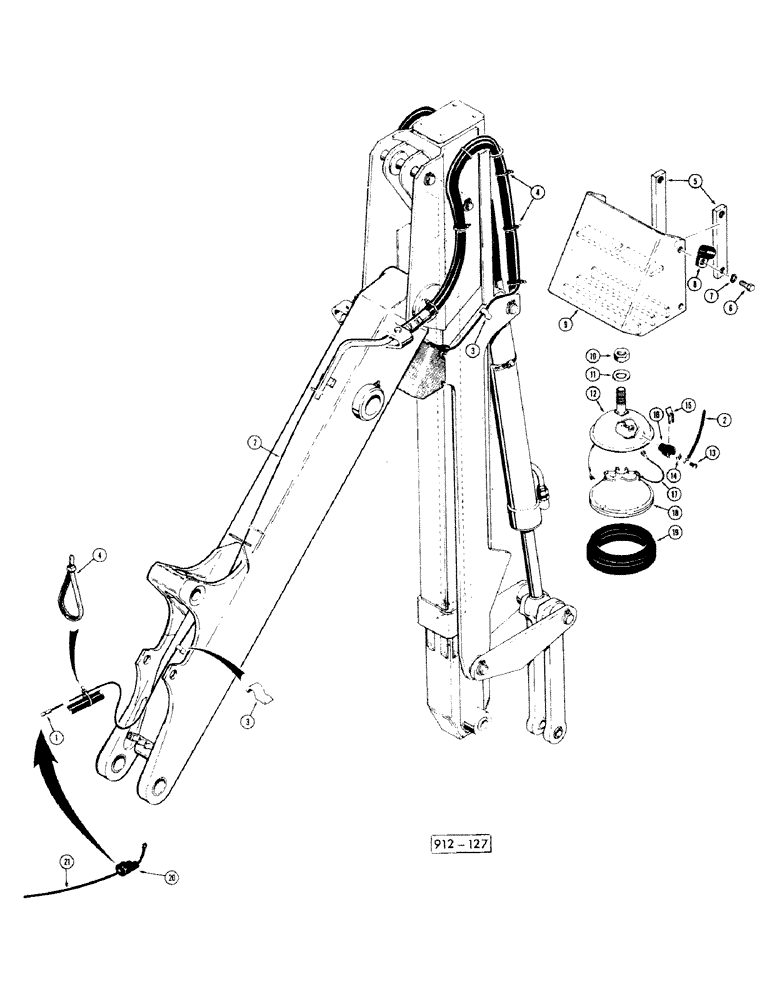

Запчасти Case 35 (342) - DIPPER LIGHT FOR 35 EXTENDAHOE DIPPER

1

NUS-NSS-NEG

Terminal

1шт.

2

D53268

ELECTRICAL WIRE

Wire

1шт.

3

D48071

CLAMP

2шт.

4

L11541

CABLE TIE,203.2mm L, Nylon

Strap

8шт.

5

D52595

BAR

2шт.

6

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

7

92-6

LOCK WASHER,3/8"

4шт.

8

66297

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1шт.

9

D52591

HOUSING

1шт.

10

131-354

LOCK NUT,1/2"-13, GA

Nut-hex., lock "1/2" NC"

1шт.

11

195-33

WASHER,1/2"

-plain "17/32"

1шт.

D37811

LAMP

Light ass'y

1шт.

12

NUS-NSS-NEG

Body

1шт.

13

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

2шт.

14

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

2шт.

15

10927

SPRING

1шт.

16

B50293

TERMINAL CONNECTOR

1шт.

17

A25262

ELECTRICAL WIRE

Wire

1шт.

18

D33182

LAMP

Bulb

1шт.

19

D31441

RETAINER

1шт.

20

A62556

CONNECTOR, ELEC

Connector

1шт.

21

E30943

Wire

1шт.
