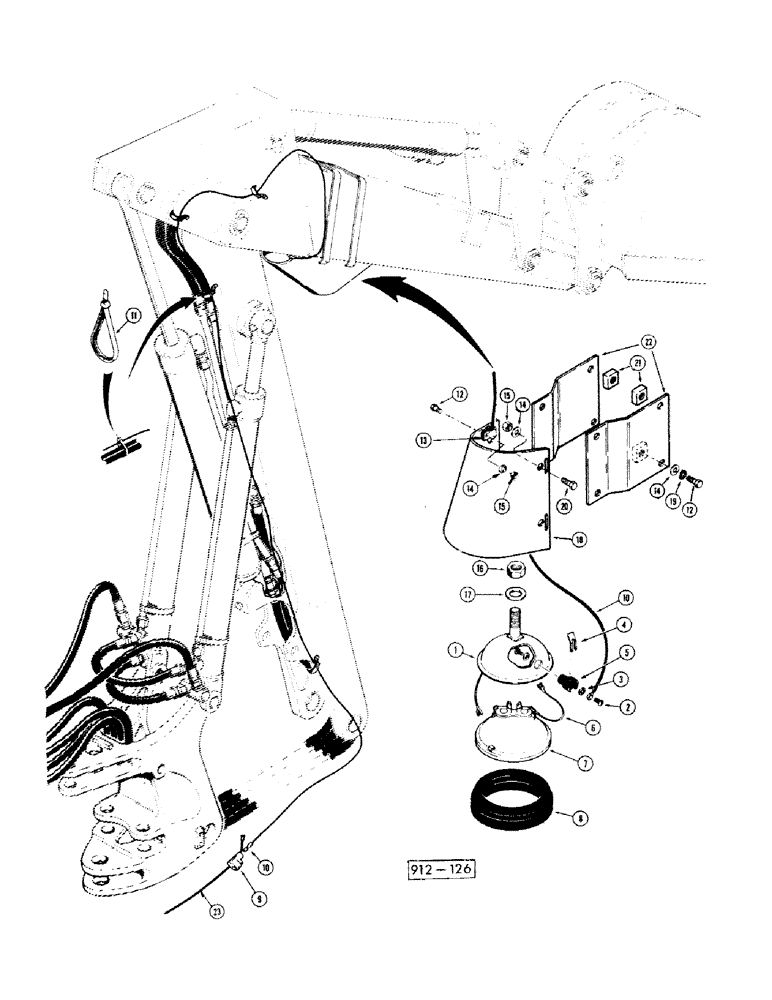

Запчасти Case 35 (340) - DIPPER LIGHT FOR 35 - 35 S

D37811

LAMP

Light ass'y

1шт.

1

NUS-NSS-NEG

Body

1шт.

2

173-73

SCREW,Sl Rnd Hd, #8 - 32 x 1/4"

2шт.

3

193-25

LOCK WASHER,Int Tooth, 0.172" ID x 0.332" OD, STL, PLN

WASHER, LOCK, Int Tooth, #8

2шт.

4

10927

SPRING

1шт.

5

B50293

TERMINAL CONNECTOR

1шт.

6

A25262

ELECTRICAL WIRE

Wire

1шт.

7

D33182

LAMP

Bulb

1шт.

8

D31441

RETAINER

1шт.

9

A62556

CONNECTOR, ELEC

Connector

1шт.

10

D50717

HARNESS

Wire (35)

1шт.

E30254

Wire (35 S)

1шт.

12

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

5шт.

13

80049853

YOKE

1шт.

14

195-25

WASHER,3/8"

9шт.

15

131-652

LOCK NUT,3/8"-16, GB

Nut-hex., lock "3/8" NC"

5шт.

16

131-354

LOCK NUT,1/2"-13, GA

Nut-hex., lock "1/2" NC"

1шт.

17

195-33

WASHER,1/2"

-plain "17/32"

1шт.

18

D41427

SHIELD

Housing

1шт.

19

92-6

LOCK WASHER,3/8"

4шт.

20

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

21

D30458

BLOCK

-tapped

4шт.

22

D56849

BRACKET

2шт.

23

E30943

Wire

1шт.
