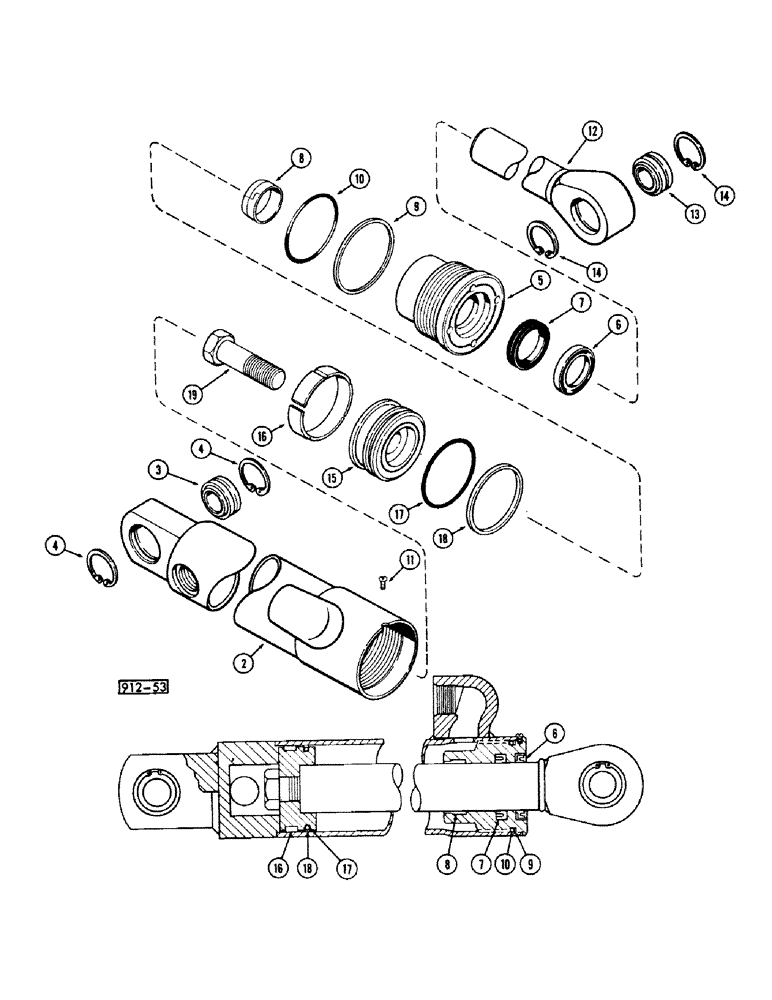

Запчасти Case 35 (338) - G33128 CYLINDER PITCH

G33128

JACK BODY

Cylinder-pitch

1шт.

2

G33129

TUBE,14.69" L

ass'y

1шт.

3

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

1шт.

4

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

2шт.

G33578

GLAND

packing ass'y

1шт.

5

NUS-NSS

Gland NEG

1шт.

6

D95141

WIPER SEAL

Seal,rod

1шт.

Part of seal kit G33141

1шт.

7

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

rod

1шт.

Part of seal kit G33141

1шт.

8

D27705

WIPER

1шт.

Part of seal kit G33141

1шт.

9

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

back-up

1шт.

Part of seal kit G33141

1шт.

10

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" Ring

1шт.

Part of seal kit G33141

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

Screw

1шт.

12

G33134

ROD

ass'y

1шт.

13

G32321

BUSHING,19.04mm ID x 31.75mm OD x 16.66mm L

1шт.

14

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125

2шт.

15

G33138

PISTON,62.94mm Bore, 31.85mm Rod, 25.4mm W

1шт.

16

G33139

RING

- wear, piston

1шт.

Part of seal kit G33141

1шт.

17

F62076

O-RING,0.139" Thk x 1.984" ID, -226, Cl 5, 75 Duro

"O" Ring

1шт.

Part of seal kit G33141

1шт.

18

G33140

RING,59.68mm ID x 64.26mm OD x 3.94mm Thk

-seal, piston

1шт.

Part of seal kit G33141

1шт.

19

28-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

G33141

KIT

Seal kit, Includes: Ref. 6 - 10 and 16 - 18

1шт.
