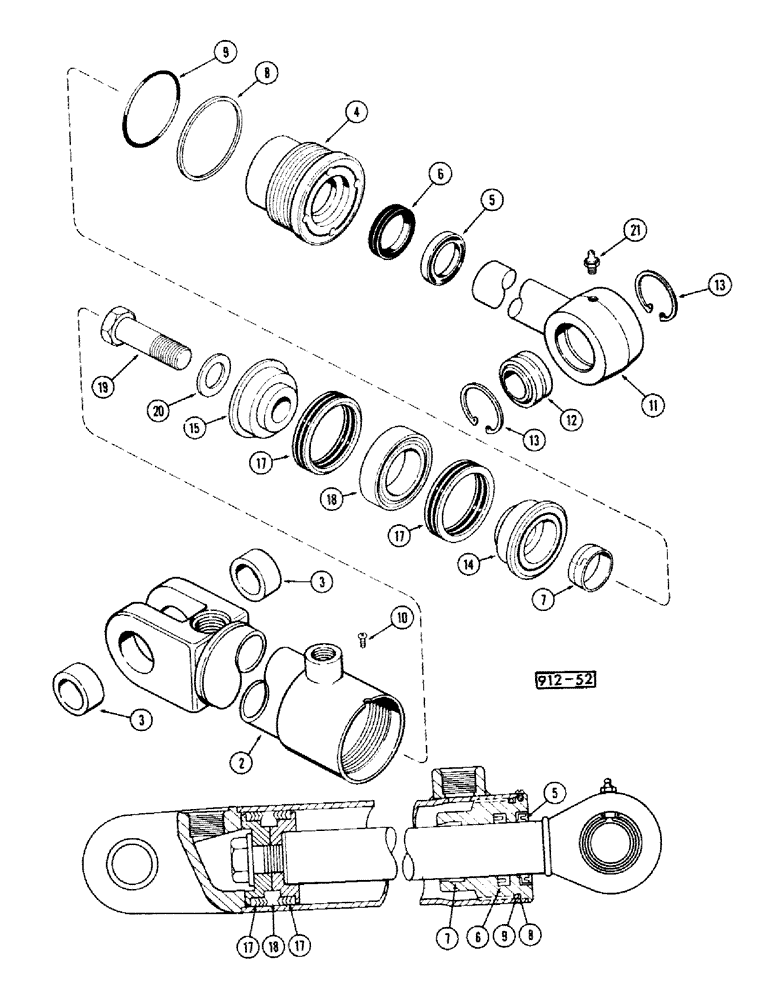

Запчасти Case 35 (336) - G33351 CYLINDER TILT

G33351

CYLINDER

tilt

1шт.

2

G32313

TUBE,14.43" L

ass'y

1шт.

3

D34818

BUSHING,25.63mm ID x 34.92mm OD x 19.05mm L

2шт.

4

G33578

GLAND

-packing ass'y

1шт.

4

NSS

NOT SOLD SEPARAT

Gland NEG

1шт.

5

D95141

WIPER SEAL

Seal-rod

1шт.

Part of seal kit G32295

1шт.

6

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

-rod

1шт.

Part of seal kit G32295

1шт.

7

D27705

WIPER

1шт.

8

G32129

BACK-UP RING,63.25mm ID x 69.35mm OD x 1.4mm Thk

back-up

1шт.

Part of seal kit G32295

1шт.

9

A28318

O-RING,0.139" Thk x 2.484" ID, -230, Cl 5, 75 Duro

"O" Ring

1шт.

Part of seal kit G32295

1шт.

10

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

Screw

1шт.

11

G33352

ROD

ass'y

1шт.

12

D22200

BEARING,25.4mm ID x 36.5mm OD x 22.23mm L

Bushing

1шт.

13

NLS

NO LONGER SERVICED

Ring, Snap, 1.625", Int, #162

2шт.

14

G33347

PISTON ASSY.

Piston-split (Rod end)

1шт.

15

D28364

PISTON

-split (bolt end)

1шт.

G33193

PACKING

ass'y - piston

1шт.

Part of seal kit G32295

1шт.

17

G33194

PACKING

Vee packing

2шт.

18

G33195

RING

-center

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

-hex. "3/4" x 2-1/2" NF"

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting grease "1/8"

1шт.

G32295

GASKET KIT

Seal kit, Includes: Ref. 5 - 6, 8 - 9 and P/N G33193

1шт.
