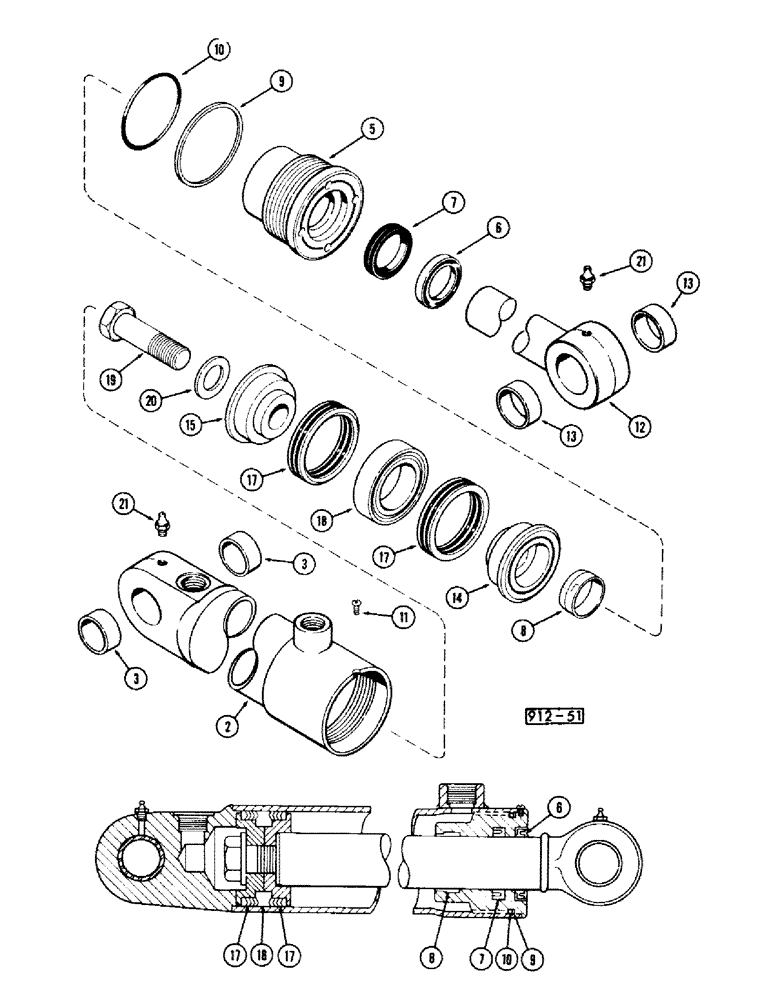

Запчасти Case 35 (334) - G33456 CYLINDER - LIFT

G33456

CYLINDER BLOCK

Cylinder ass'y - lift

1шт.

2

G32330

TUBE,16.59" L

ass'y

1шт.

3

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

2шт.

G33485

GLAND

packing ass'y

1шт.

5

NUS-NSS

Gland NEG

1шт.

6

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

-rod

1шт.

Part of seal kit G32292

1шт.

7

D36969

CUP

Seal-rod

1шт.

Part of seal kit G32292

1шт.

8

D27706

WIPER SEAL

Wiper

1шт.

Part of seal kit G32292

1шт.

9

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

back-up

1шт.

Part of seal kit G32292

1шт.

10

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" Ring

1шт.

Part of seal kit G32292

1шт.

11

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

Screw

1шт.

12

G33457

PISTON ROD

Rod ass'y

1шт.

13

30634

BUSHING,32.05mm ID x 38.18mm OD x 17.6mm L

1шт.

14

G33150

PISTON

- split (Rod end)

1шт.

15

D28366

PISTON

- split (Bolt end)

1шт.

G33151

PACKING

ass'y - piston

1шт.

Part of seal kit G32292

1шт.

17

G33152

PACKING

Vee packing

2шт.

18

G33153

CENTRALIZER

Ring-center

1шт.

19

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

-hex. "3/4" x 2-1/2" NF"

1шт.

20

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

21

219-1

LUBE NIPPLE,1/8" - 27 NPTF

Fitting grease "1/8"

2шт.

G32292

KIT

Seal kit, Includes: Ref. 6 - 10 and P/N G33151

1шт.
