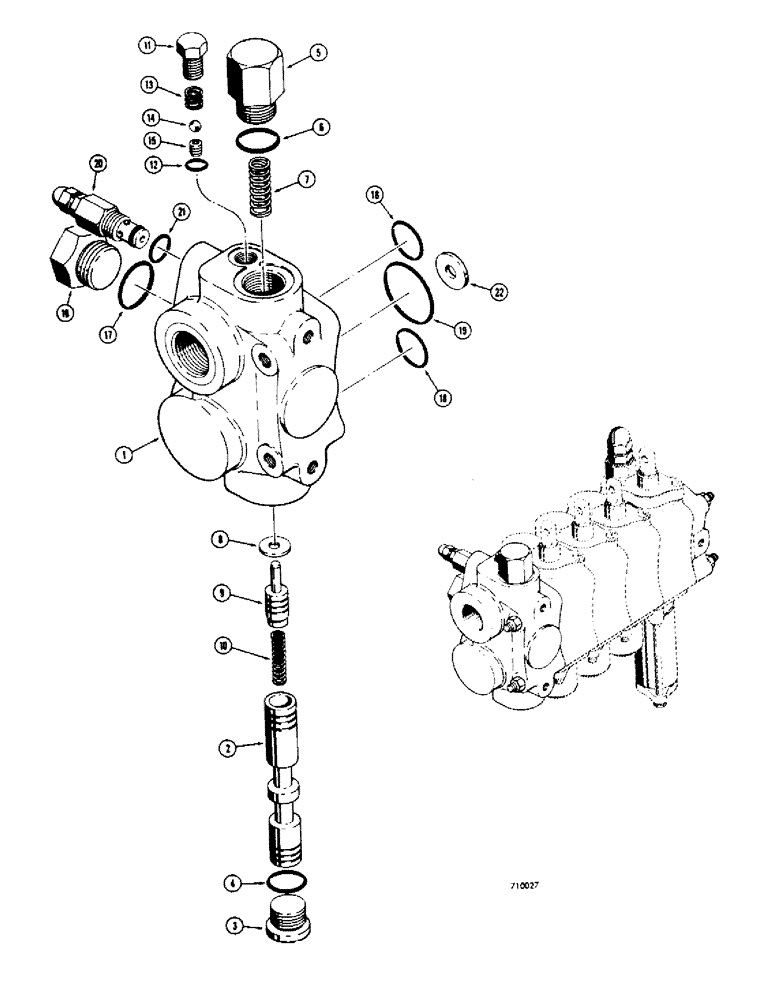

Запчасти Case 35 (326) - D52970 INLET SECTION

D53593

HYD VALVE SECTION

Section-inlet

1шт.

1

NUS-NSS

Housing NEG

1шт.

2

NUS-NSS

Spool NEG

1шт.

3

86625138

PLUG,7/18" - 14

1шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

D53660

Plug

1шт.

6

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

7

D53605

SPRING

1шт.

8

D53609

Washer

1шт.

9

NUS-NSS

Plunger NEG

1шт.

10

D53607

SPRING

1шт.

11

9672438

PLUG,7/16" - 20 ORB

1шт.

12

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

13

D53604

SPRING

1шт.

14

211-101

BALL,1/4" Dia, Stainless

1шт.

15

D53611

Screw

1шт.

16

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

18

R15366

O-RING,7/8" ID x 1" OD x 1/16"

"O" Ring

2шт.

19

T39567

O-RING,1.489" ID x 1.629" OD x 0.07"

"O" Ring

1шт.

20

D53596

VALVE

ass'y

1шт.

21

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

22

D53598

LARGE PLATE

Plate-orifice (included w/D52970 control-valve)

1шт.
