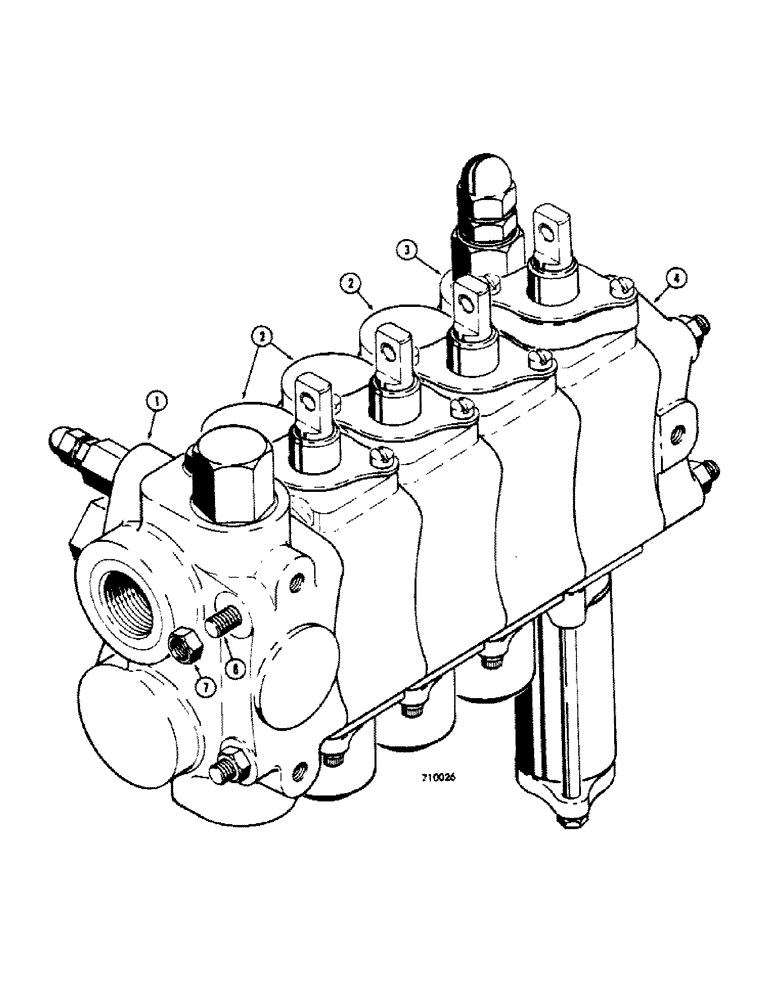

Запчасти Case 35 (324) - 3 POINT HITCH (D52970 CONTROL VALVE)

D52970

CONTROL VALVE

Valve, 4 spool

1шт.

1

D53593

HYD VALVE SECTION

Section-inlet, Voir Figure 326/See Figure 326/Siehe

1шт.

2

D53594

HYD VALVE SECTION

Section-pitch, tilt and implement, Voir Figure 332/See Figure 332/Siehe seite 332

3шт.

3

D53595

HYD VALVE SECTION

Section-lift, Voir Figure 328/See Figure 328/Siehe

1шт.

4

D53600

HYD VALVE SECTION

Section-end

1шт.

5

D53598

LARGE PLATE

Plate-orifice, Voir Figure 326-Ref. 22/See Figure 326

1шт.

6

D53599

TIE-ROD

Rod

3шт.

7

129-524

NUT,3/8"-24, G8

6шт.
