(320) - D17196 ANTI-LEAKDOWN KIT

Запчасти Case 35 (320) - D17196 ANTI-LEAKDOWN KIT

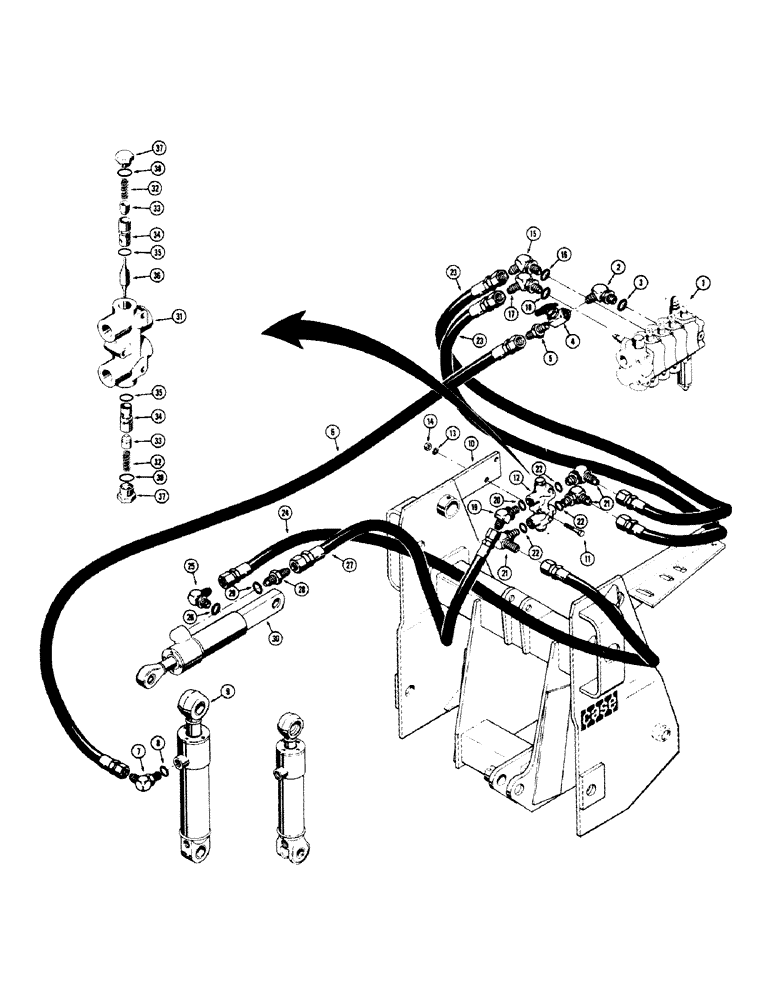

Схема запчастей Case 35 - (320) - D17196 ANTI-LEAKDOWN KIT
13
22
2
28
4
33
21
25
35
38
32
3
24
34
36
23
38
21
31
20
9
8
19
15
22
1
27
23
30
37
34
29
37
26
6
12
17
33
35
16
32
10
5
16
7
11
22
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

D52970

CONTROL VALVE

Valve, 4-spool, Voir Figure 324/See Figure 324/Siehe

1шт.

2

D60015

FITTING

Elbow, component of D17196

1шт.

4

D60016

BALL

Valve, component of D17196

1шт.

5

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

Connector, component of D17196

1шт.

6

D51686

HOSE

1шт.

7

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

9

REF

INSTRUCTION

Cylinder, Voir page 334/See page 334/Siehe

1шт.

10

D59772

PLATE

component of D17196

1шт.

11

13-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

Component of D17196 Hex, 5/16"-18 x 2", G5

2шт.

12

D47256

VALVE

-check, Voir Figure 324/See Figure 324/Siehe, component of D17196

1шт.

13

92-5

LOCK WASHER,5/16"

component of D17196 5/16"

2шт.

14

9635082

NUT,5/16" - 18, Gr 5

-hex. , "5/16" NC", component of D17196

2шт.

15

D52943

ELBOW

1шт.

17

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

1шт.

19

D59773

FITTING

Elbow, component of D17196

1шт.

21

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

Component of D17196 90º, 3/4"-16, 37º x 3/4"-16, O-Ring

3шт.

23

D59771

HOSE

component of D17196

2шт.

24

T40301

HOSE,0.38" ID x 17.00", SAE 100R1

Component of D17196 0.38" ID x 17.00", SAE 100R1

1шт.

25

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

27

D56128

HOSE

component of D17196

1шт.

28

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

30

REF

INSTRUCTION

Cylinder, ., Voir page 338/See page 338/Siehe

1шт.

D47256

VALVE

-check

1шт.

31

NUS-NSS-NEG

Body, D47256 check valve

1шт.

32

D48818

SPRING

D47256 check valve

2шт.

D48819

VALVE POPPET

Poppet ass'y, D47256 check valve

2шт.

33

NUS-NSS-NEG

Poppet, D47256 check valve

1шт.

34

NUS-NSS-NEG

Sleeve, D47256 check valve

1шт.

35

D48820

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" Ring, D47256 check valve

1шт.

36

D48821

TRANSMISSION

Shuttle-valve, D47256 check

1шт.

37

D48822

PLUG

D47256 check valve

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

16

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

20

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

22

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

38

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, D47256 check valve

2шт.
