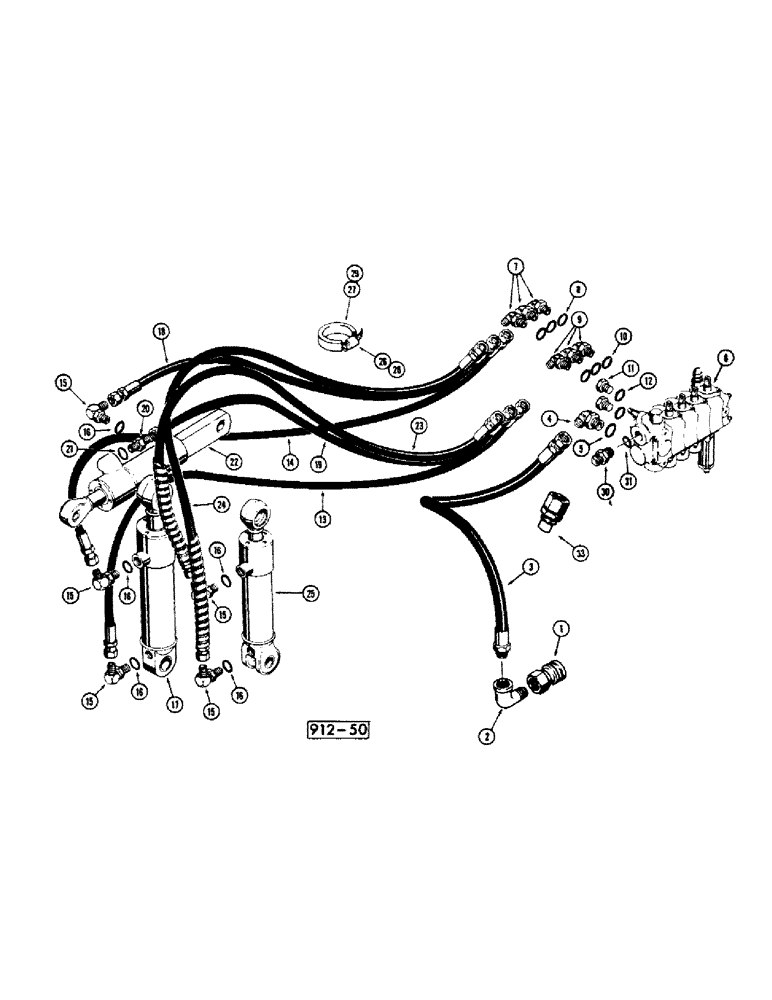

Запчасти Case 35 (316) - 3 POINT HITCH (HYDRAULICS)

1

D52800

COUPLING, QUICK, FEM

Coupling, female, Voir Figure 62/See Figure 62/Siehe

1шт.

2

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

1шт.

3

D56094

HOSE

1шт.

4

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

5

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

6

D52970

CONTROL VALVE

Valve, Voir Figure 324/See Figure 324/Siehe

1шт.

7

D52943

ELBOW

3шт.

9

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

3шт.

11

214389

PLUG,3/4" - 16 ORB

2шт.

13

D51685

HOSE

(66" long)

1шт.

14

D51686

HOSE

(54" long)

1шт.

15

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

5шт.

16

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

REF

INSTRUCTION

Cylinder, lift, ., Voir Figure 334/See Figure 334/Siehe

1шт.

18

D51688

HOSE

(42" long)

1шт.

19

D52256

HOSE

(45" long)

1шт.

20

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

REF

INSTRUCTION

Cylinder, pitch, ., Voir Figure 338/See Figure 338/Siehe

1шт.

23

D52256

HOSE

(45" long)

1шт.

24

D51683

HOSE

(56" long)

1шт.

25

REF

INSTRUCTION

Cylinder, tilt, ., Voir Figure 336/See Figure 336/Siehe

1шт.

26

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

1шт.

27

D95252

TUBE

Guard (used with 214-260 clamp only)

1шт.

28

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Clamp

2шт.

29

D95251

TUBE

Guard (used with 214-256 clamp only)

2шт.

30

218-5022

HYD CONNECTOR,1 1/16"-12, O-Ring x 3/4"-16, Pipe

Connector

1шт.

31

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

33

D52694

QUICK MALE COUPLING

Coupling male, Voir Figure 62/See Figure 62/Siehe

1шт.

8

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
