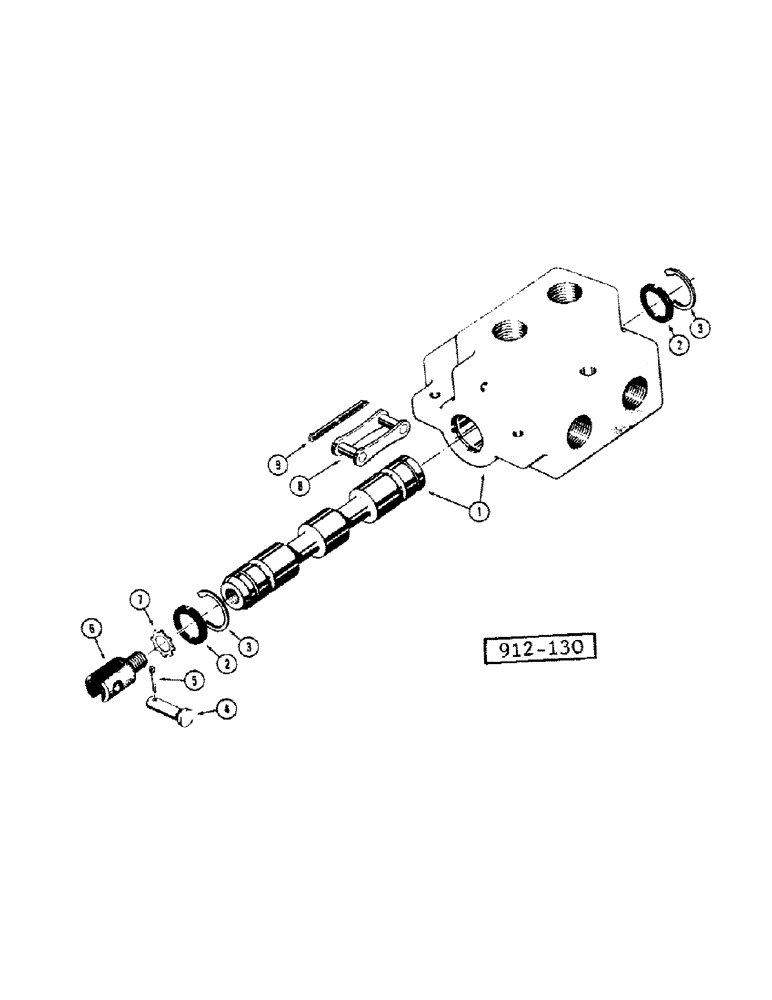

Запчасти Case 35 (306) - D45399 DIVERSION VALVE

D45399

LOCK VALVE

Valve

1шт.

1

NUS-NSS

Housing & spool NEG

1шт.

2

D23691

O-RING

Seal

2шт.

3

D23692

SNAP RING,#100, Ext, Crescent

Ring, Snap, #100, Ext, Crescent

2шт.

4

D23693

AXLE PIN

Pin

1шт.

5

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

6

D23694

ADAPTER

Yoke

1шт.

7

193-10

LOCK WASHER,Ext Tooth, 0.391" ID x 0.682" OD, STL, PLN

WASHER, LOCK, Ext Tooth, 3/8"

1шт.

8

D23698

HANDLE

Link

1шт.

9

132-17

COTTER PIN,1/16" x 2"

Pin, Split (Cotter), 1/16" x 2"

1шт.
