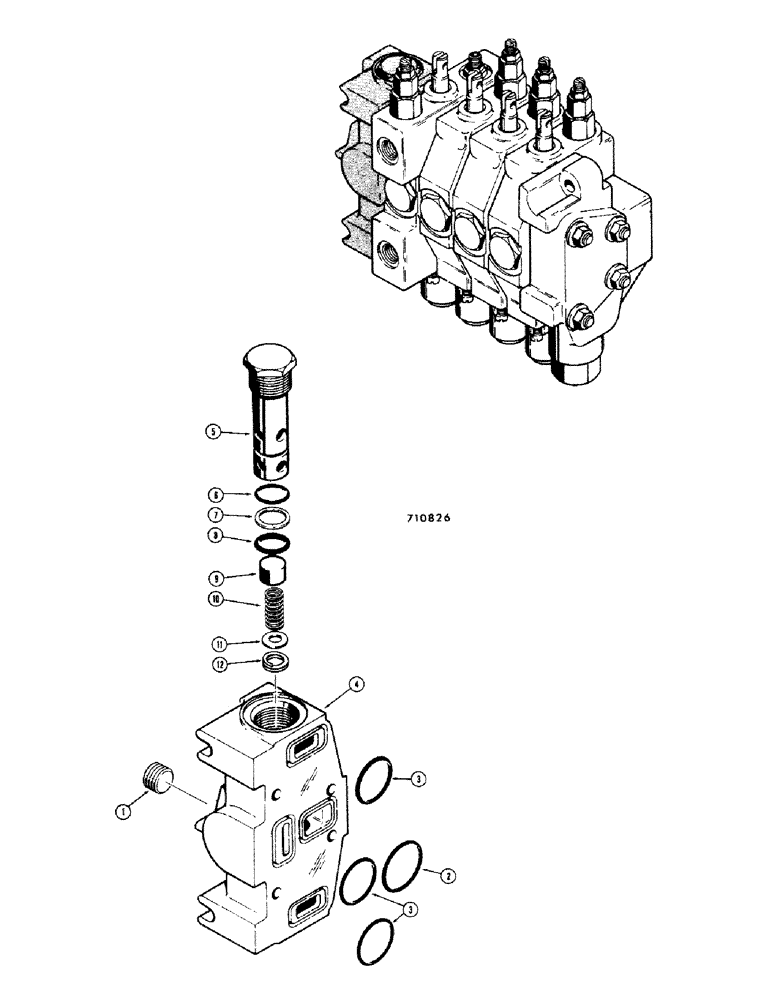

Запчасти Case 35 (302) - D54597 BACKHOE INLET SECTION

D54597

VALVE

Inlet section

1шт.

1

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

2

D32127

O-RING

"O" Ring (2" O.D)

1шт.

3

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

"O" Ring (1-3/4" O.D)

3шт.

4

NUS-NSS

Housing NEG

1шт.

D54773

X

Valve ass'y

1шт.

5

D40819

Cartridge

1шт.

6

D54806

O-RING,0.139" Thk x 1.046" ID, -215, Cl 5, 75 Duro

"O" Ring (outer)

1шт.

7

T38233

BACK-UP RING,0.891" ID x 1.127" OD x 0.05"

-back-up

1шт.

8

D31413

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

"O" Ring (inner)

1шт.

9

D40820

Poppet

1шт.

10

S16143

VALVE SPRING

Spring

1шт.

11

D40821

RETAINER

1шт.

12

R15512

SNAP RING,#87, .929", Int, Spiral

Ring-spirolox

1шт.
