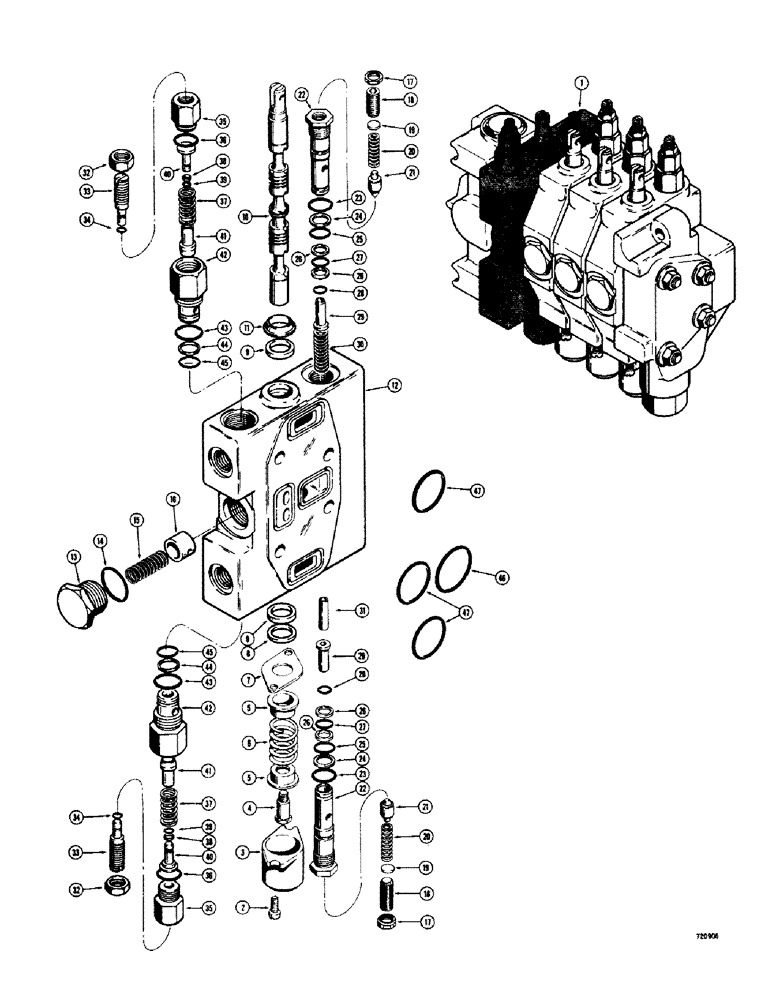

Запчасти Case 35 (290) - D54598 BACKHOE SWING SECTION

1

D54598

VALVE

Swing section

1шт.

2

71-512

SCREW,Slotted Fil Hd, 5/16"-18 x 3/4"

"5/16"x3/4" NC"

2шт.

3

D32221

COVER

Cap

1шт.

4

D32128

BOLT (SPREADER)

Bolt

1шт.

5

D32130

GUIDE

2шт.

6

NUS-NSS

Spring NEG

1шт.

7

D54805

PLATE ASSY.

Plate-retaining

1шт.

8

D26829

RING

-back-up

1шт.

9

D36830

RING

Seal

2шт.

10

NUS-NSS

Spool NEG

1шт.

11

D54804

WIPER SEAL

Wiper

1шт.

12

NUS-NSS

Housing NEG

1шт.

13

39007

CAP

1шт.

14

A27342

O-RING,1.109" ID x 1.387" OD x 0.139"

"O" Ring

1шт.

15

R15308

VALVE SPRING

Spring

1шт.

16

D45694

SPOOL

Poppet

1шт.

D56347

CARTRIDGE

ass'y

2шт.

17

D54853

LOCK NUT

Nut-hex. "1/2" NF"

1шт.

18

83-816

SET SCREW,Hex Soc, 1/2"-13 x 1"

Screw "1/2" x 1" NF"

1шт.

19

D54852

WASHER

Slug

1шт.

20

D26876

VALVE SPRING

Spring

1шт.

21

D56351

SEAT

1шт.

22

NUS-NSS

Cartridge NEG

1шт.

24

D37070

SEAL,13.16mm ID x 15.85mm OD x 1.25mm Thk

-back-up

1шт.

25

D31409

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

"O" Ring

1шт.

26

D54861

BACK-UP RING

-back-up

2шт.

27

D31412

O-RING

"O" Ring

1шт.

28

A30825

O-RING,0.364" ID x 0.504" OD x 0.07"

"O" Ring

2шт.

29

D56350

SPOOL

Poppet

1шт.

30

D56348

VALVE SPRING

Spring

1шт.

31

D56349

TUBE

Spacer

1шт.

D54842

FILTER

Cartridge ass'y

2шт.

32

25-158

JAM NUT,Jam, 1/2"-20, G5

-hex. " 1/2" NF"

1шт.

33

D54856

SCREW

1шт.

34

T41959

O-RING

"O" Ring

1шт.

35

D54857

CYLINDER END CAP

Cap

1шт.

37

D54858

VALVE SPRING

Spring

1шт.

38

D54860

RING

-back-up

1шт.

39

T41959

O-RING

"O" Ring

1шт.

40

D54855

PLUNGER

1шт.

41

D54854

SEAT

1шт.

42

NUS-NSS

Body NEG

1шт.

43

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

"O" Ring (outer)

1шт.

44

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

-back-up

1шт.

45

D54849

O-RING,0.139" Thk x 0.796" ID, -211, Cl 6, 90 Duro

"O" Ring (inner)

1шт.

46

L32985

GASKET

"O" Ring (large)

1шт.

47

D26820

O-RING,0.103" Thk x 1.549" ID, -129, Cl 5, 75 Duro

"O" Ring (small)

3шт.

23

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

36

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
