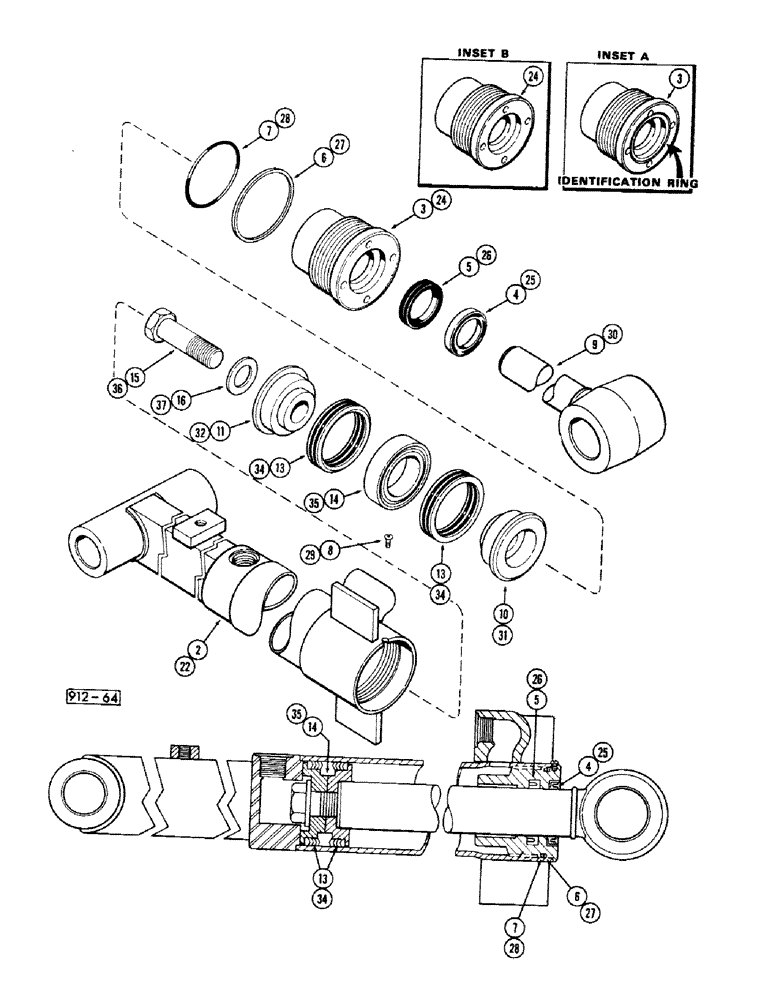

Запчасти Case 35 (242) - G32637 BACKHOE DIPPER EXTENSION CYLINDER - UP TO NO. 5225441

G32637

Cylinder ass'y - dipper extension

1шт.

22

G32699

TUBE,72.80 mm L

cylinder

1шт.

G32734

GLAND

-packing ass'y

1шт.

24

NUS-NSS

Gland, NEG, (voir Fig.B)/(see inset

1шт.

25

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

-rod

1шт.

Part of seal kit G33188

1шт.

26

D36969

CUP

Seal-rod

1шт.

Part of seal kit G33188

1шт.

27

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

-backup

1шт.

Part of seal kit G33188

1шт.

28

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" Ring

1шт.

Part of seal kit G33188

1шт.

29

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

Screw

1шт.

30

G32706

ROD

-piston

1шт.

31

D28365

PISTON

-split (Rod end)

1шт.

32

D28366

PISTON

-split (Bolt end)

1шт.

G33151

PACKING

ass'y - Piston

1шт.

Part of seal kit G33188

1шт.

34

G33152

PACKING

Vee packing

2шт.

35

G33153

CENTRALIZER

Ring-center

1шт.

36

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

-hex. "3/4" x2-1/2"

1шт.

37

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

1шт.

G33188

SEAL

kit, Includes: Ref. 25 - 28 and P/N G33151

1шт.

G33142

BOOM

Cylinder ass'y - dipper extension

1шт.

2

G32699

TUBE,72.80 mm L

cylinder, backhoe dipper extension cyl. - starting w/ no 5225442

1шт.

G33189

GLAND

- packing ass'y, backhoe dipper extension cyl. - starting w/ no 5225442

1шт.

3

NUS

Gland, NSS NEG, (voir Fig.A)/(see inset, backhoe dipper extension cyl. - starting w/ no 5225442

1шт.

4

D95142

WIPER SEAL,1.5" ID x 2" OD x 0.31" Thk

-rod, backhoe dipper extension cyl. - starting w/ no 5225442

1шт.

Part of seal kit G33188

1шт.

5

D36969

CUP

Seal-rod, backhoe dipper extension cyl. - starting w/ no 5225442

1шт.

Part of seal kit G33188

1шт.

6

G32122

BACK-UP RING,75.82mm ID x 81.92mm OD x 1.4mm Thk

back-up, backhoe dipper extension cyl. - starting w/ no 5225442

1шт.

Part of seal kit G33188

1шт.

7

A30095

O-RING,0.139" Thk x 2.984" ID, -234, Cl 5, 75 Duro

"O" Ring, backhoe dipper extension cyl. - starting w/ no 5225442

1шт.

Part of seal kit G33188

1шт.

8

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

Screw, backhoe dipper extension cyl. - starting w/ no 5225442

1шт.

9

G33143

PISTON ROD

Rod-piston, backhoe dipper extension cyl. - starting w/ no 5225442

1шт.

10

G33150

PISTON

- split (rod end), backhoe dipper extension cyl. - starting w/ no 5225442

1шт.

11

D28366

PISTON

- split (bolt end), backhoe dipper extension cyl. - starting w/ no 5225442

1шт.

G33151

PACKING

ass'y - piston, backhoe dipper extension cyl. - starting w/ no 5225442

1шт.

Part of seal kit G33188

1шт.

13

G33152

PACKING

Vee packing, backhoe dipper extension cyl. - starting w/ no 5225442

2шт.

14

G33153

CENTRALIZER

Ring-center, backhoe dipper extension cyl. - starting w/ no 5225442

1шт.

15

28-1240

BOLT,Hex, 3/4" - 16 x 2-1/2", Gr 8

hex. "3/4" x 2-1/2", backhoe dipper extension cyl. - starting w/ no 5225442

1шт.

16

G32317

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

backhoe dipper extension cyl. - starting w/ no 5225442

1шт.

G33188

SEAL

kit, Includes: Ref. 4 - 7 and P/N G33151, backhoe dipper extension cyl. - starting w/ no 5225442

1шт.
