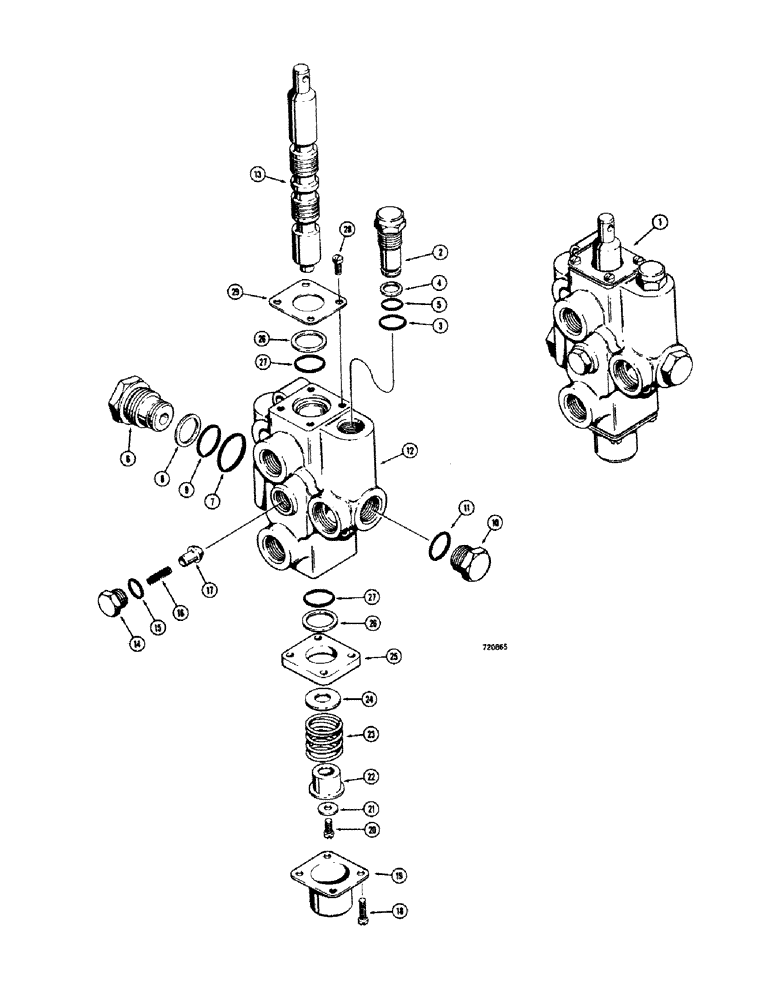

Запчасти Case 35 (238) - BACKHOE DIPPER EXTENSION CONTROL VALVE -4

1

D56189

VALVE

-control, dipper extension

1шт.

2

D54593

PLUG

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

L30443

BACK-UP RING,0.547" ID x 0.049" Width

-backup

1шт.

5

D54799

O-RING

"O" Ring

1шт.

6

D54844

PLUG

Connector

1шт.

7

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" Ring

1шт.

8

D54800

O-RING

Ring-backup

1шт.

9

C14199

O-RING

"O" Ring

1шт.

10

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

1шт.

11

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

12

NUS

Housing-control valve NSS NEG

1шт.

13

NUS-NSS

Spool NEG

1шт.

14

D54588

PLUG

1шт.

16

D54587

VALVE SPRING

Spring

1шт.

17

D54589

VALVE

Check-load

1шт.

18

169-156

SCREW,Sl Fil Hd, 1/4" - 20 x 3/4"

-rd.hd "1/4" x 3/4" NC"

4шт.

19

D54582

CYLINDER END CAP

Cap

1шт.

20

169-155

SCREW,Sl Fil Hd, 1/4" - 20 x 1/2"

-rd.hd "1/4" x 1/2" NC"

1шт.

21

195-102

WASHER,1/4"

-plain " 1/4"

1шт.

22

D54581

COLLAR CLAMP

Clamp

1шт.

23

D54586

SPRING

1шт.

24

195-2200

WASHER

-plain

1шт.

25

D54583

SPACER

1шт.

26

D54585

WASHER

-retaining

2шт.

27

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

"O" Ring

2шт.

28

169-155

SCREW,Sl Fil Hd, 1/4" - 20 x 1/2"

-rd.hd "1/4" x 1/2" NC"

4шт.

29

D54584

STOP

Plate-retaining

1шт.

15

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.
