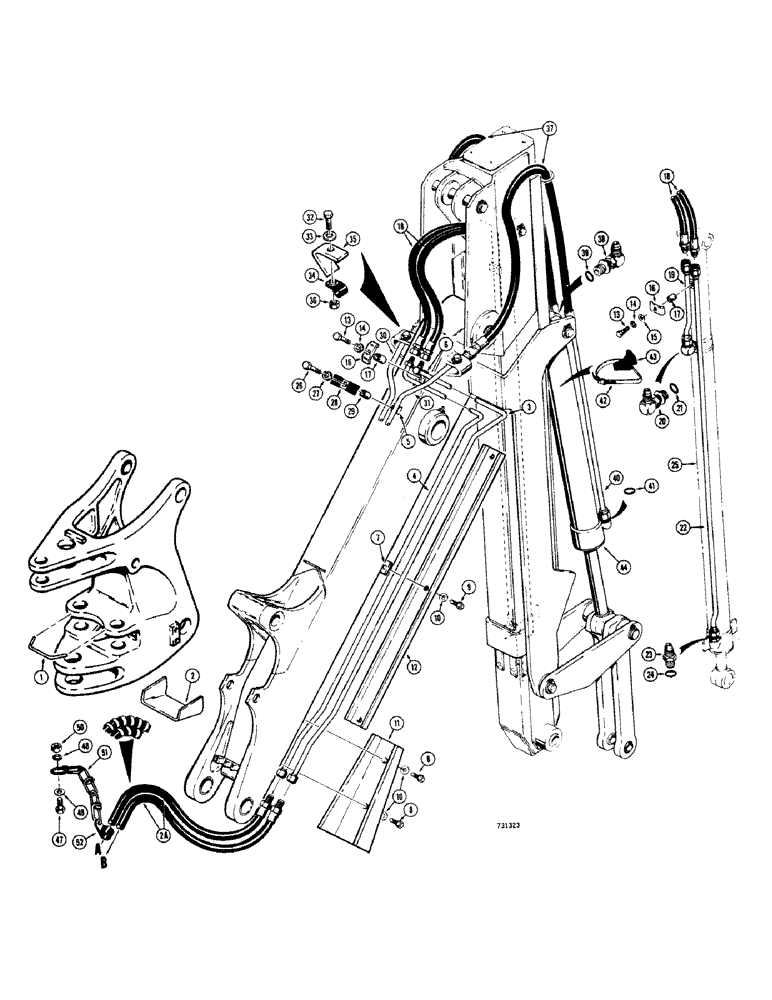

Запчасти Case 35 (234) - HYDRAULICS, EXTENDAHOE-4 WITH CASE AND CESSNA CONTROL VALVES STARTING W/NO.5251151

1

D54702

GUIDE

Guard-hose

1шт.

2

D56194

GUARD

1шт.

2a

D60473

HOSE ASSY.

Hose

2шт.

3

D55464

TUBE

-RH

1шт.

4

D55466

TUBE

-LH

1шт.

5

D50004

BLOCK

Flat-tapped

1шт.

6

D52569

BLOCK

Flat-tapped

1шт.

7

D52843

BLOCK

Flat-tapped

5шт.

8

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

2шт.

9

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

-hex. "1/2"x3/4" NC"

3шт.

10

95-8

WASHER,1/2"

- plain 1/2"

5шт.

11

D54420

GUARD

-lower

1шт.

12

D54137

GUARD

-upper

1шт.

13

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

-hex. "3/8"x1-1/2" NC"

2шт.

14

92-6

LOCK WASHER,3/8"

2шт.

15

195-25

WASHER,3/8"

1шт.

16

D42504

CLAMP

2шт.

17

D33552

BUSHING

Spacer

2шт.

18

D52565

HOSE

2шт.

19

D52572

TUBE

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

1шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

D52574

TUBE

1шт.

23

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Connector-straight

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

25

REF

INSTRUCTION

Cylinder-dipper, ., Voir Figure 242/See Figure 242/Siehe

1шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

-hex. "3/8"x1-1/2"NC"

1шт.

27

92-6

LOCK WASHER,3/8"

1шт.

28

D40236

CLAMP

1шт.

29

D36040

BUSHING

Spacer

1шт.

30

D52818

TUBE

-LH

1шт.

31

D52820

TUBE ASSY.

Tube-RH

1шт.

32

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

33

195-25

WASHER,3/8"

2шт.

34

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

35

D45559

BRACKET

2шт.

36

131-5

LOCK NUT,3/8"-16, GB

Nut-lock "3/8" NC"

2шт.

37

D52566

HOSE

2шт.

38

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

40

D55050

HOSE

Tube

1шт.

41

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

42

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

Clamp

1шт.

43

D38648

BLOCK

Saddle

1шт.

44

REF

INSTRUCTION

Cylinder-bucket, ., Voir Figure 180/See Figure 180/Siehe

1шт.

45

321-2058

DECAL

Pas illustree/Not shown/Nicht

2шт.

46

321-1645

DECAL

-operators information, Pas illustree/Not shown/Nicht

1шт.

47

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

48

92-5

LOCK WASHER,5/16"

2шт.

49

195-21

WASHER,5/16"

plain 5/16"

2шт.

50

9635082

NUT,5/16" - 18, Gr 5

-hex. "5/16" NC"

1шт.

51

D60438

Chain

1шт.

52

D47782

CLAMP,25.4mm ID, 10.31mm Bolt Hole, P Type

2шт.
