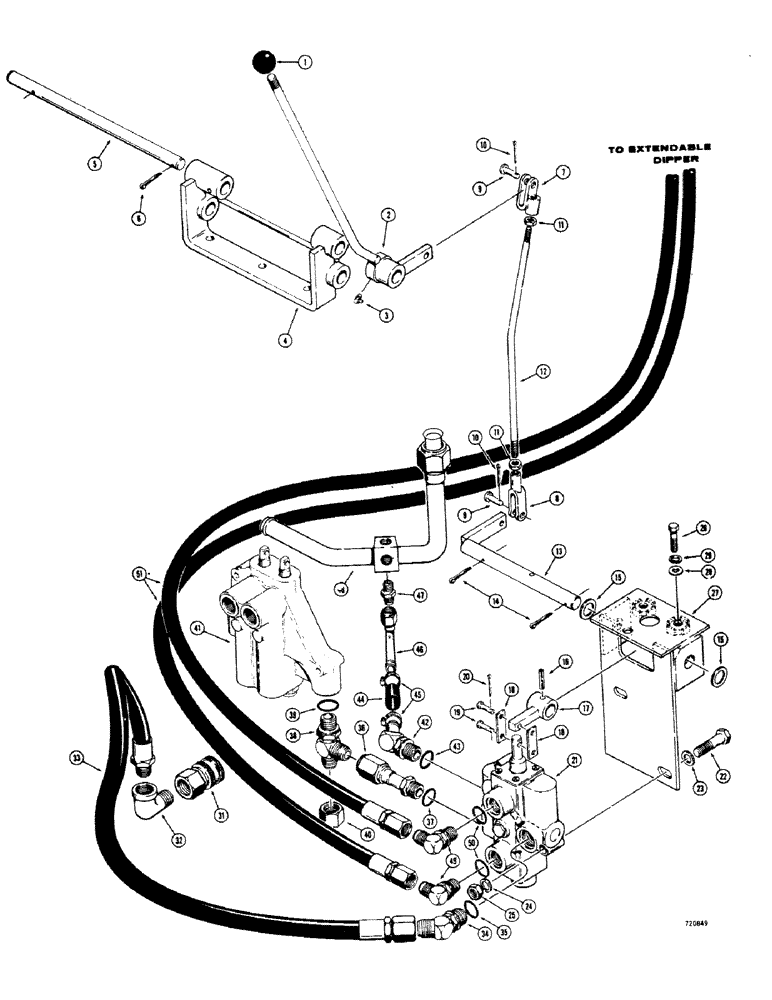

Запчасти Case 35 (222) - HYDRAULICS EXTENDAHOE-4 WITH CASE, AND CESSNA CONTROL VALVES-STARTING W/NO.5251151

1

D59912

KNOB

1шт.

2

D56178

HANDLE

Lever-extendahoe control

1шт.

3

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, , Elbow 90º, 1/8" NPT x .84" lg

1шт.

4

D50561

Bracket

1шт.

5

D56227

SHAFT

1шт.

6

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

7

L11182

YOKE,3/8" - 24

-upper

1шт.

8

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

Yoke-lower

1шт.

9

141-104

PIN,3/8" x 1.060"

2шт.

10

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

2шт.

11

25-116

NUT,Hex, 3/8"-24, G5

-hex. "3/8" NF"

2шт.

12

D56182

ROD

-control

1шт.

13

D56176

SHAFT

1шт.

14

132-52

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

15

195-45

WASHER,3/4"

2шт.

16

138-136

LOCK PIN,1/4" x 1 1/4", Slotted

PIN, 1/4" x 1 1/4", Slotted

1шт.

17

D56174

DRAG LINK

Lever-control

1шт.

18

D56173

DRAG LINK

Plate

2шт.

19

D50559

CLEVIS,9.53mm OD x 28.32mm L

Pin

2шт.

20

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), 1/16" x 1/2"

2шт.

21

REF

INSTRUCTION

Valve-control, ., Voir page 238/See page 238/Siehe

1шт.

22

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

2шт.

23

195-25

WASHER,3/8"

2шт.

24

92-6

LOCK WASHER,3/8"

2шт.

25

25-106

NUT,3/8"-16, G5

-hex. "3/8" NC"

2шт.

26

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

27

D56183

PLATE ASSY.

Plate-valve mounting

1шт.

28

195-25

WASHER,3/8"

2шт.

29

92-6

LOCK WASHER,3/8"

2шт.

31

D52800

COUPLING, QUICK, FEM

Coupling-female, Voir Figure 62/See Figure 62/Siehe

1шт.

32

217-1020

90 ELBOW,3/4" - 14 Female x 3/4" - 14 Male

1шт.

33

D56094

HOSE

1шт.

34

218-5147

ELBOW,45 Degree Elbow, 1-5/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

35

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

36

D56171

TUBE

1шт.

37

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

38

218-5239

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

1шт.

39

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

40

218-335

CAP,37 Degree, 1 1/16"-12

Plug 37º, 1 1/16"-12

1шт.

41

REF

INSTRUCTION

Valve-control, ., Voir page 182/See page 182/Siehe

1шт.

42

217-324

FITTING,45 Degree Elbow, 3/4" Hose Barb x 7/8" - 14 Male ORB

Elbow

1шт.

43

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

44

D24728

HOSE

1шт.

45

214-255

HOSE CLAMP,#16, 0.81" - 1.5", Type F Worm

2шт.

46

D60989

TUBE

1шт.

47

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

Connector-straight

1шт.

48

D56157

Tube

1шт.

49

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

2шт.

50

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

51

D60473

HOSE ASSY.

Hose

2шт.
