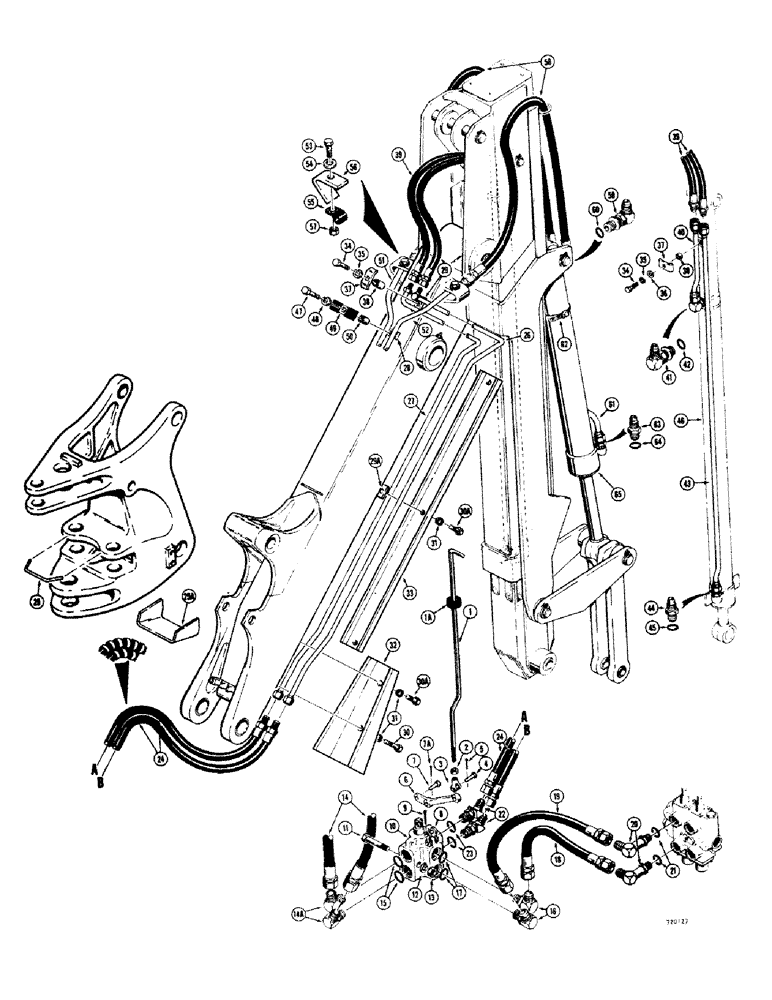

Запчасти Case 35 (208) - HYDRAULICS, EXTENDAHOE-4 WITH COMMERCIAL AND CROSS CONTROL VALVES,FROM NO.5203801 UP TO NO.5222134

1

D54321

ROD

Control rod

1шт.

1a

A23870

GROMMET

1шт.

2

25-156

JAM NUT,Jam, 3/8"-24, G5

-jam, hex. "3/8" NF"

1шт.

3

213-4

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

Yoke

1шт.

4

141-4

CLEVIS PIN,3/8" x 1.060"

PIN, CLEVIS, 3/8" x 1.060"

1шт.

5

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

1шт.

6

D47938

LEVER

1шт.

7

D23693

AXLE PIN

Pin

1шт.

7a

132-6

COTTER PIN,1/16" x 5/8"

Pin, Split (Cotter) 1/16" x 5/8"

1шт.

8

D23696

DRAG LINK

Link

1шт.

9

132-17

COTTER PIN,1/16" x 2"

Pin, Split (Cotter), 1/16" x 2"

1шт.

10

D45399

LOCK VALVE

Valve, Voir Figure 306/See Figure 306/Siehe

1шт.

11

13-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

-hex. "3/8" x 3-1/4" NC"

2шт.

12

92-6

LOCK WASHER,3/8"

2шт.

13

25-106

NUT,3/8"-16, G5

-hex. "3/8" NC"

2шт.

14

D50751

HOSE

(33" long) Jusqu au/Up to no./Bis Nir 5219900

2шт.

14

D55351

HOSE

(33" long), A partir du/Starting with/Von

2шт.

14a

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ass'y, Utilise avec D50751/Used with

2шт.

14a

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ass'y, Utilise avec D55351/Used with

2шт.

15

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

16

218-5120

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1-1/16" - 12 Male ORB

ass'y

2шт.

17

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

18

D54320

HOSE

(12" long)

1шт.

19

NLS

NO LONGER SERVICED

Hose (14" long)

1шт.

20

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Assy 90º, 3/4"-16, 37º x 7/8"-14, O-Ring

2шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

22

218-5149

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

Assy 45º, 7/8"-14 x 1 1/16"-12, O-Ring

2шт.

23

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" Ring

1шт.

24

D54336

HOSE

(67" long)

2шт.

25

D54702

GUIDE

1шт.

25a

D54422

Guard, "A epuisement Commander/When depleted Order/Wenn aufgebraucht

1шт.

25a

D56194

GUARD

1шт.

26

D52826

TUBE

(RH)

1шт.

27

D52828

TUBE

(LH)

1шт.

28

D50004

BLOCK

1шт.

29

D52569

BLOCK

1шт.

29a

D52843

BLOCK

5шт.

30

13-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

1шт.

30a

13-812

BOLT,Hex, 1/2" - 13 x 3/4", Gr 5

-hex. "1/2" x 3/4" NC"

4шт.

31

92-8

LOCK WASHER,1/2"

5шт.

32

D54420

GUARD

1шт.

33

D54137

GUARD

1шт.

34

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

-hex. "3/8" x 1-1/2" NC"

2шт.

35

92-6

LOCK WASHER,3/8"

2шт.

36

195-25

WASHER,3/8"

1шт.

37

D42504

CLAMP

2шт.

38

D33552

BUSHING

Spacer

2шт.

39

D52565

HOSE

(42" long)

2шт.

40

D52572

TUBE

1шт.

41

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Assy 90º, 7/8"-14, 37º x 7/8"-14, O-Ring

1шт.

42

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

43

D52574

TUBE

1шт.

44

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

Connector ass'y

1шт.

45

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

46

REF

INSTRUCTION

Cylinder, ., Voir page 242/See page 242/Siehe

1шт.

47

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

-hex. "3/8" x 1-1/2" NC"

1шт.

48

92-6

LOCK WASHER,3/8"

1шт.

49

D40236

CLAMP

1шт.

50

D36040

BUSHING

Spacer

1шт.

51

D52818

TUBE

LH

1шт.

52

D52820

TUBE ASSY.

Tube RH

1шт.

53

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

54

195-25

WASHER,3/8"

2шт.

55

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

2шт.

56

D45559

BRACKET

2шт.

57

131-5

LOCK NUT,3/8"-16, GB

Nut-hex.lock "3/8"

2шт.

58

D52566

HOSE

(70" long)

2шт.

59

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ass'y

1шт.

60

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

61

D52877

TUBE

1шт.

62

214-269

HOSE CLAMP,#72, 4.06" - 5", Type F Worm

Clamp

1шт.

63

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

Connector ass'y

1шт.

64

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

65

REF

INSTRUCTION

Cylinder, ., Voir page 180/See page 180/Siehe

1шт.

66

321-2058

DECAL

Non illustree/Not shown/Nicht

2шт.

67

321-1645

DECAL

-operators information, Non illustree/Not shown/Nicht

1шт.
