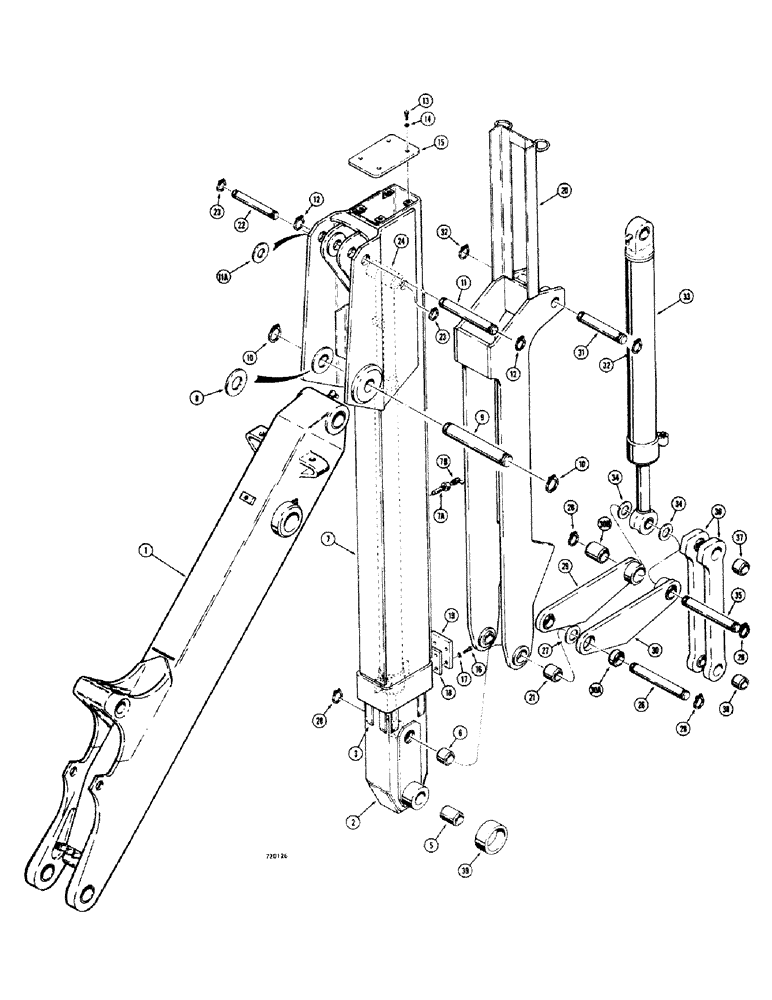

Запчасти Case 35 (204) - EXTENDAHOE 4 W/COMMERCIAL & CROSS CONTROL VALVES, FROM NO.5203801 UP TO NO.5222134

1

REF

INSTRUCTION

Boom, ., Voir Figure 102/See Figure 102/Siehe

1шт.

2

D55727

ARM

Dipper arm ass'y - extension

1шт.

D16615

STRIP

Kit-wear strip

2шт.

3

D55688

STRIP

Wear strip-dipper slide

4шт.

5

D50146

BUSHING,44.68mm ID x 57.15mm OD x 38.1mm L

2шт.

6

D37443

BUSHING,44.68mm ID x 57.15mm OD x 50.8mm L

2шт.

7

D57385

KIT

Slide-extendable dipper

1шт.

7a

219-107

NOZZLE CAP

Nozzle

1шт.

7b

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

8

D53561

BUSHING

Spacer

2шт.

9

D45034

PIN

1шт.

10

D26919

SNAP RING,#200, Ext

Ring, Snap, #200, Ext

2шт.

11

D53818

PIN,44.45mm OD x 278.89mm L

1шт.

11a

195-2152

WASHER,1 13/16" x 2 1/2" x .109"

-plain "1-13/16"

4шт.

12

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

13

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

14

92-6

LOCK WASHER,3/8"

4шт.

95-6

WASHER,3/8"

- Si utilise/If used/Wenn 3/8"

4шт.

15

D52537

COVER ASSY

Cover

1шт.

16

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

4шт.

17

92-8

LOCK WASHER,1/2"

4шт.

18

D52630

SPACER

1шт.

19

D52631

STOP

1шт.

20

D52562

ARM

Extension ass'y

1шт.

21

D52521

BUSHING,44.68mm ID x 57.15mm OD x 26.92mm L

2шт.

22

D44882

PIN,38.1mm OD x 203.2mm L

1шт.

23

D25279

SNAP RING,M35, Int

Ring-retaining

2шт.

24

REF

INSTRUCTION

Cylinder ass'y, ., Voir page 242/See page 242/Siehe

1шт.

26

D53818

PIN,44.45mm OD x 278.89mm L

1шт.

28

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

4шт.

29

D53839

LINK

LH ass'y

1шт.

30

D53840

LINK

RH ass'y

1шт.

30a

D46405

BUSHING,44.68mm ID x 53.98mm OD x 19.05mm L

1шт.

30b

D42788

BUSHING,44.68mm ID x 53.98mm OD x 28.57mm L

1шт.

31

D56570

PIN

1шт.

32

D25280

SNAP RING,#175, Ext

Ring, Snap, #175, Ext

2шт.

33

REF

INSTRUCTION

Cylinder ass'y, ., Voir page 180/See page 180/Siehe

1шт.

35

D53818

PIN,44.45mm OD x 278.89mm L

1шт.

36

D50157

LINK

ass'y

2шт.

37

D37495

BUSHING,44.76mm ID x 57.15mm OD x 31.75mm L

1шт.

38

D30933

BUSHING,38.41mm ID x 47.63mm OD x 31.75mm L

1шт.

39

D52578

BUSHING

Space, used with standard buckets

2шт.
