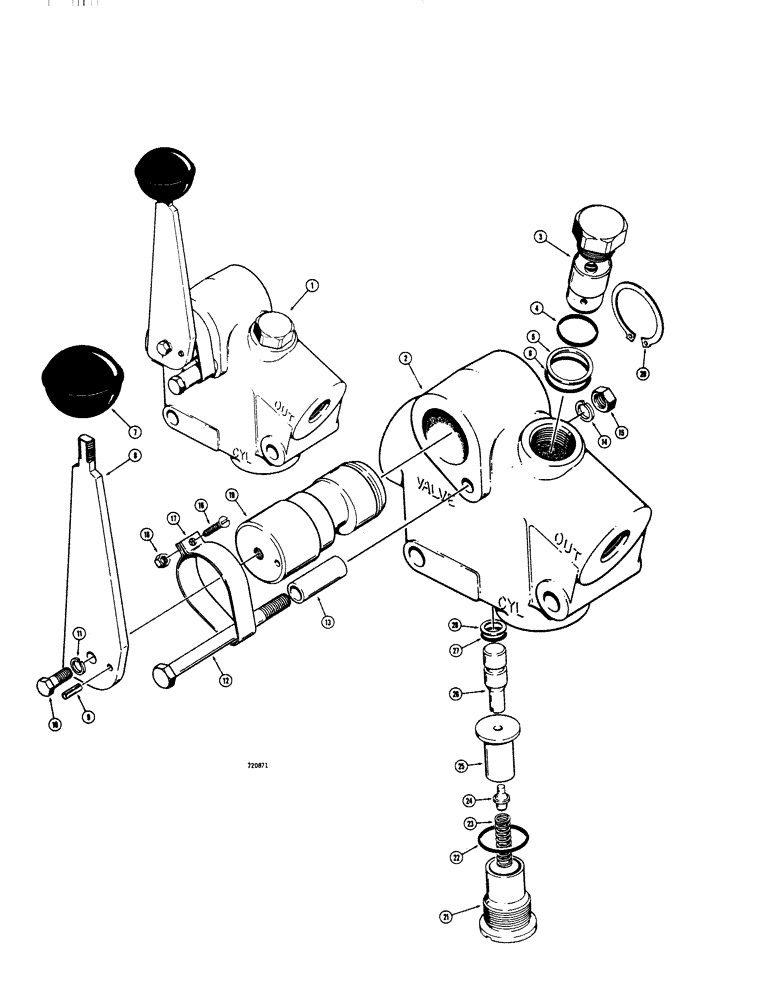

Запчасти Case 35 (200) - D56102 BOOM LOCKOUT VALVE

1

D56102

VALVE

ass'y - lockout

1шт.

2

NUS-NSS

Housing NEG

1шт.

3

D56470

VALVE

Plug-adjusting

1шт.

4

F9857

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

"O" Ring

1шт.

5

D56469

BACK-UP RING

-backup

1шт.

6

A7464

O-RING,0.103" Thk x 1.11" ID, -122, Cl 5, 75 Duro

"O" Ring

1шт.

7

D56472

KNOB

1шт.

8

D56458

HANDLE

Lever

1шт.

9

D56881

PIN

1шт.

10

13-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

1шт.

11

92-5

LOCK WASHER,5/16"

1шт.

12

13-558

BOLT,Hex, 5/16" - 18 x 3-5/8", Gr 5

-hex. "5/16" x 3-5/8" NC"

1шт.

13

D56460

BUSHING

1шт.

14

92-5

LOCK WASHER,5/16"

1шт.

15

25-145

JAM NUT,Jam, 5/16"-18, G5

-hex. "5/16" NC"

1шт.

16

182-48

SCREW,Sl Pan Hd, #6 - 32 x 3/4"

-rd.hd "No. 6 x 3/4" NC"

1шт.

17

D56467

CLAMP

1шт.

18

131-150

LOCK NUT,#6-32, GA

NUT, LOCK, #6-32, GA

1шт.

19

D56465

SHAFT

1шт.

20

F62020

SNAP RING,#125, Ext

Ring, Snap, #125, Ext

1шт.

21

D56461

PLUG

1шт.

22

A35104

O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro

"O" Ring

1шт.

23

D56462

SPRING

1шт.

24

D56464

PLUNGER

Valve

1шт.

25

D56463

PLUNGER

Poppet

1шт.

26

D56466

PLUNGER

Piston

1шт.

27

F19951

O-RING

"O" Ring

1шт.

28

L31330

BACK-UP RING,109mm ID x 128.81mm OD x 12mm Thk

-backup

1шт.
